Power Transfer Unit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

1. Refer to: Battery Tray .
2. Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

3. Refer to: Wheel and Tire .

   Courtesy of FORD MOTOR COMPANY

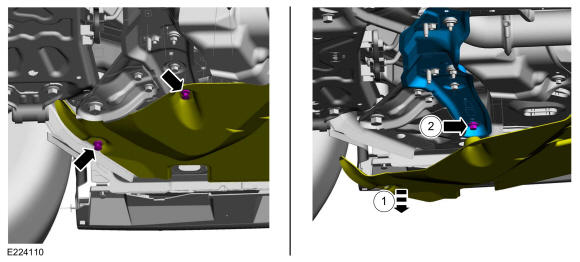

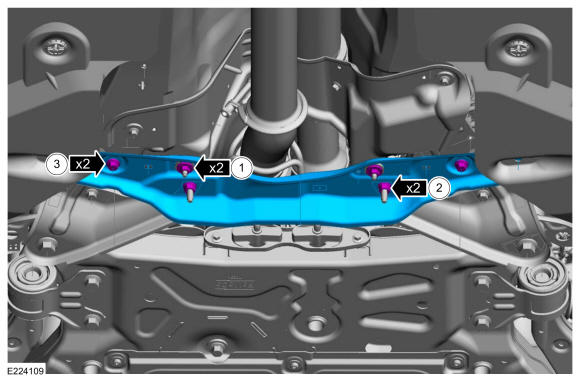

4. On both sides.

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

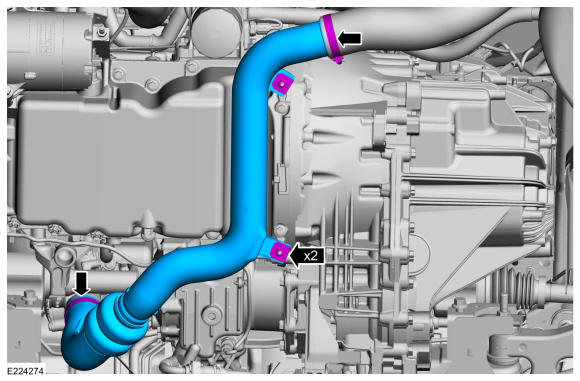

5. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

   Courtesy of FORD MOTOR COMPANY

6. Refer to: Front Halfshaft RH - 2.3L EcoBoost (257kW/350PS) - MI4 .

   Courtesy of FORD MOTOR COMPANY

7. Refer to: Roll Restrictor RH - 2.3L EcoBoost (257kW/350PS) - MI4 .

   Courtesy of FORD MOTOR COMPANY

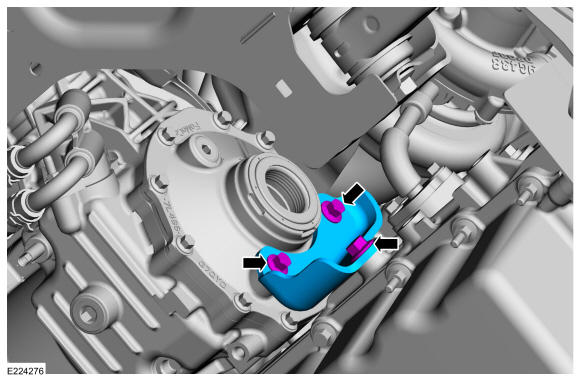

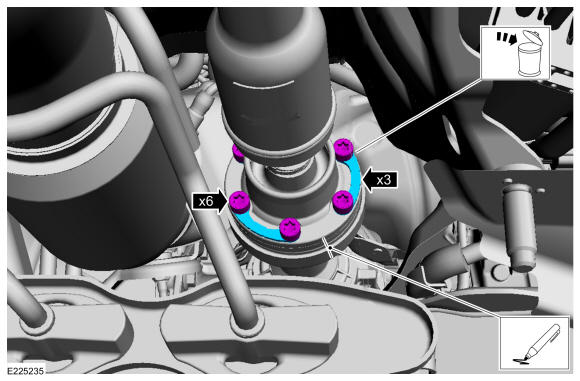

8. NOTE: Note the position of the component before removal.

   Torque

   : 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

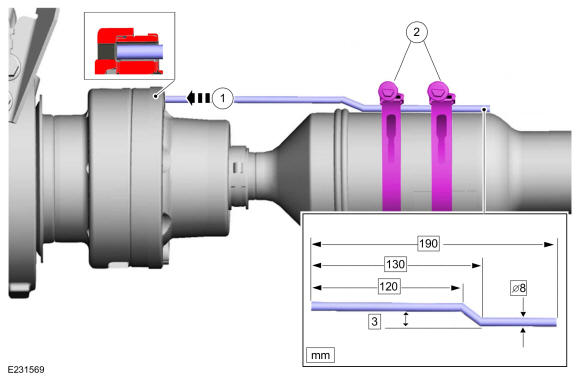

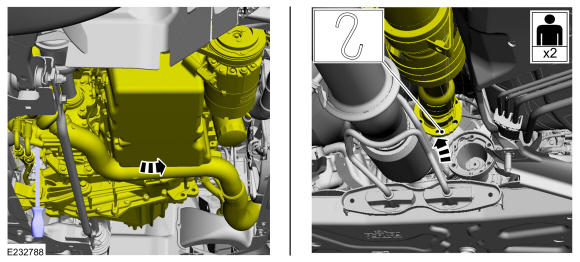

9. Fabricate a tool

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

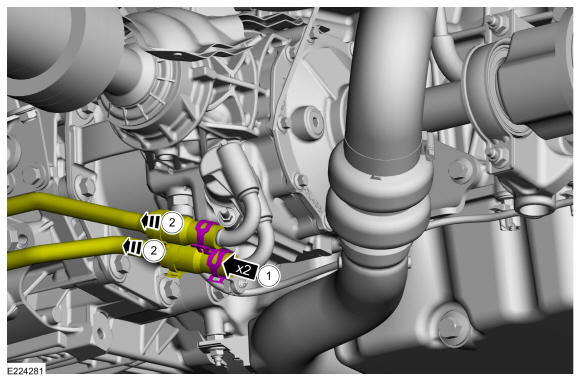

10. NOTE: Be prepared to collect escaping fluid.

    Courtesy of FORD MOTOR COMPANY

11. After remove retainer position shield off to the side.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
