Windshield Glass: Installation

If installing the original windshield glass, remove the excess urethane adhesive.

Courtesy of FORD MOTOR COMPANY

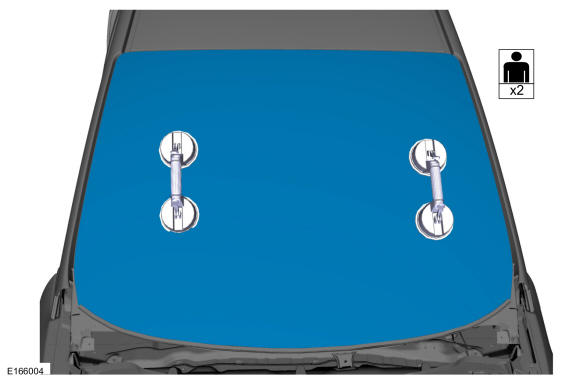

Install the windshield glass. Use the General Equipment: Glass Removal Suction Cup

Courtesy of FORD MOTOR COMPANY
Use a non-staining grease pencil to make alignment marks on the windshield glass at the setting blocks (if equipped) and the body to aid in the windshield window glass alignment during installation. Use the General Equipment: Glass Removal Suction Cup

Courtesy of FORD MOTOR COMPANY
Remove the windshield glass from the body. Use the General Equipment: Glass Removal Suction Cup

Courtesy of FORD MOTOR COMPANY
WARNING: Repair any corrosion found on the pinch weld. The pinch weld is a structural component of the vehicle. Corrosion left unrepaired may reduce the structural integrity of the vehicle. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Avoid scratching the pinch weld. Repair all minor scratches or exposed metal on the pinch weld following manufacturer's instructions. Use the same brand pinch weld primer, glass primer and urethane adhesive.

NOTE: Touching the adhesive surface impairs the rebonding.

NOTE: Make sure the mating surfaces are clean and free of foreign material.

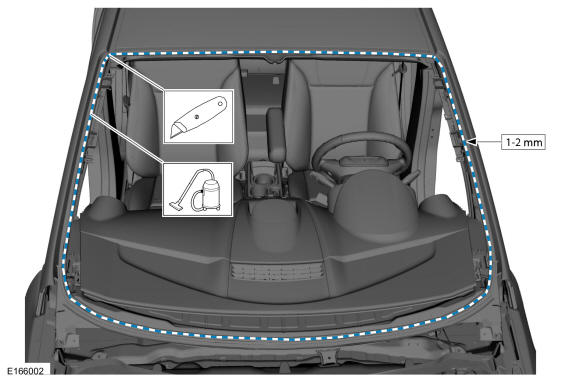

- Using a utility knife, trim the urethane adhesive leaving a 1 mm to 2 mm (0.04 in to 0.08 in) base of original equipment urethane adhesive on the pinch weld.
- Using a soft brush or vacuum, remove any foreign material or dirt from the pinch weld.
Courtesy of FORD MOTOR COMPANY
Position the windshield glass on the body. Use the General Equipment: Glass Removal Suction Cup

Courtesy of FORD MOTOR COMPANY
Dry-fit the windshield glass on the existing urethane adhesive bead on the pinch weld. Use the General Equipment: Glass Removal Suction Cup

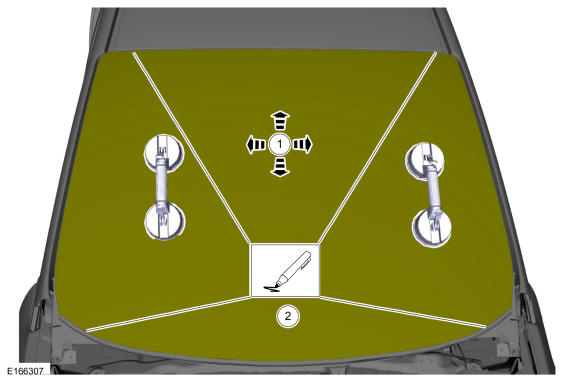

Position the windshield glass on the pinch weld, centering the windshield glass in the opening. Adjust the windshield glass stop blocks (if equipped) as needed for best fit.
Make new alignment marks with tape or non-staining grease pencil (preferably at the windshield glass stop blocks if equipped) on the windshield glass and the body.

Courtesy of FORD MOTOR COMPANY
Remove the windshield glass from the body. Use the General Equipment: Glass Removal Suction Cup

Courtesy of FORD MOTOR COMPANY
After the dry-fit alignment, remove the glass from the windshield opening and place on a stable work surface with the interior side of the glass facing up. Use the General Equipment: Glass Removal Suction Cup

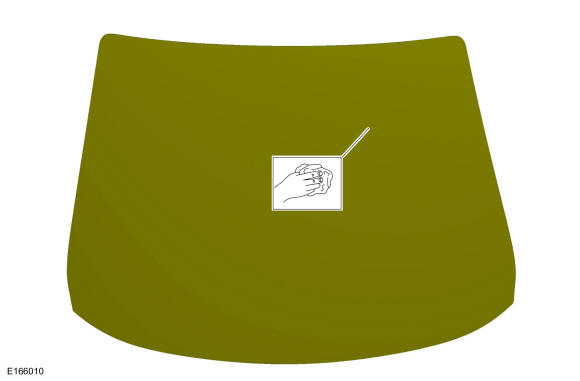

Clean the inside of the new windshield glass with glass cleaner.
Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and glass primer. For additional information, refer to the Material Chart in this procedure.

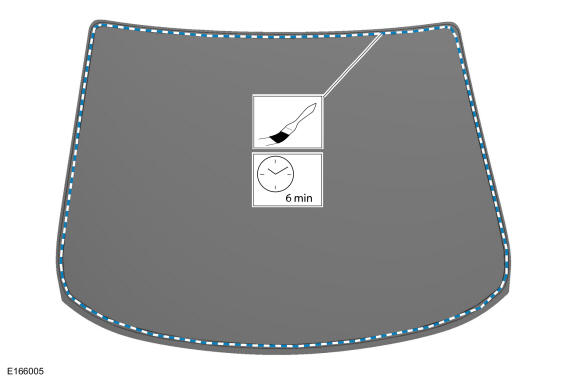

Apply glass primer according to the manufacturer's instructions. Allow at least 6 minutes to dry.

Material: Dow Urethane One Step Glass Primer / Betaprime™ 5500/5500A/5500SA

Material: Sika Urethane Metal and Glass Primer / Sika 206 G+P

Courtesy of FORD MOTOR COMPANY

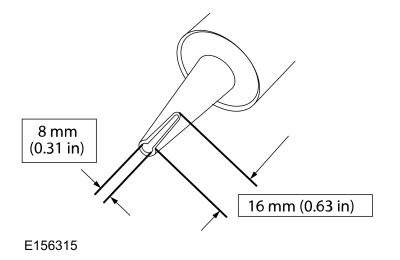

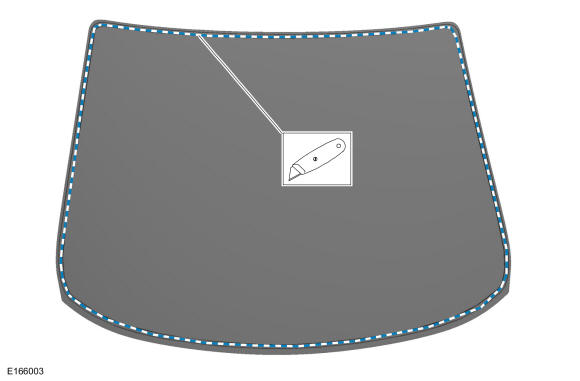

Cut the urethane adhesive applicator tip to specification.
Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY

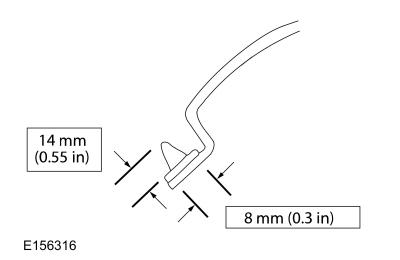

The new urethane adhesive bead applied must be 14 mm (0.551 in) high and 8 mm (0.314 in) wide.
Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY

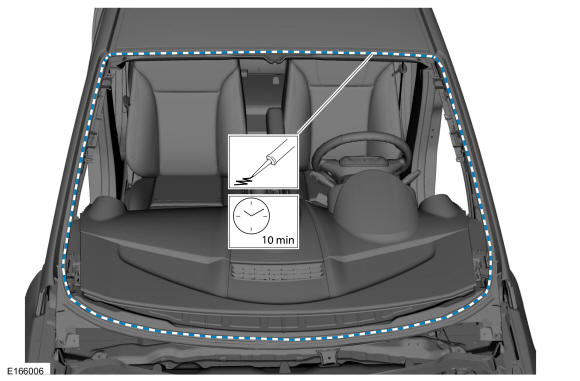

NOTE: Position the windshield glass within 10 minutes of applying the urethane adhesive.

NOTE: Use either a high-ratio air, electric, or battery-operated caulk gun that will apply the urethane adhesive with less effort and a continuous bead.

Apply urethane adhesive on top of the existing trimmed urethane adhesive bead on the pinch weld, starting and ending at the bottom of the windshield near the center, make sure there are no gaps in the bead.

Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
WARNING: Do not drive vehicle until the urethane adhesive seal has cured. Follow urethane adhesive manufacturer's curing directions. Inadequate or incorrect curing of the urethane adhesive seal will adversely affect glass retention. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

NOTE: Before positioning the windshield glass, open the vehicle windows to prevent the air pressure of closing doors from affecting the urethane adhesive bond.

NOTE: The door windows must be left open during the adhesive curing time.

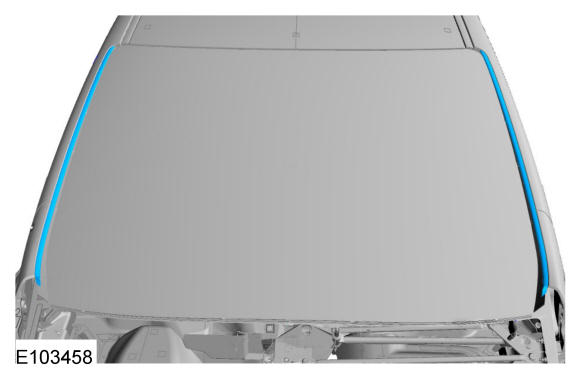

NOTE: The adhesive strip backings must be removed from the A-pillar moldings before installing the windshield.

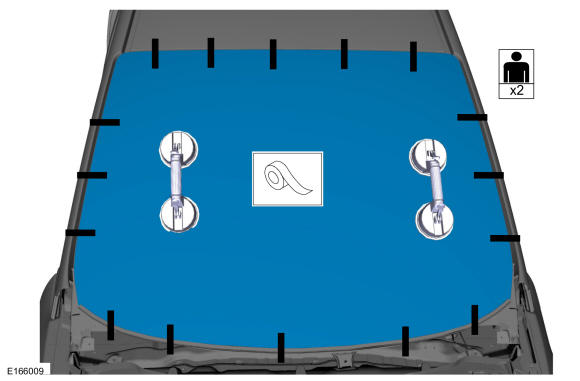

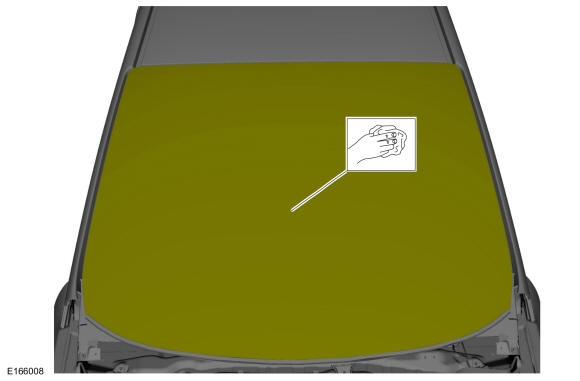

- Install the windshield glass, aligning it to the marks previously made. Press firmly by hand to ensure a good bond to the A-pillar moldings. Use the General Equipment: Glass Removal Suction Cup
- Using tape, secure the windshield glass in the correct position until the adhesive has cured.
Courtesy of FORD MOTOR COMPANY

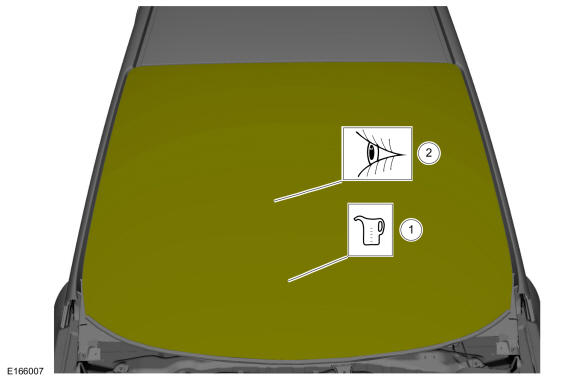

After the urethane adhesive has cured, visually check the windshield glass seal for air or water leaks through the urethane adhesive bead and add urethane adhesive as necessary.

Courtesy of FORD MOTOR COMPANY
If necessary, remove excess urethane adhesive from the exterior surface of the windshield glass.
Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)

Courtesy of FORD MOTOR COMPANY

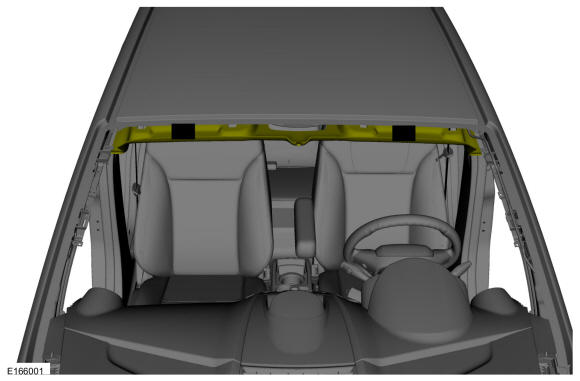

NOTE: Make sure not to crease the headliner when removing the wood blocks.

NOTE: Windshield removed for clarity.

Remove the blocks and position the front portion of the headliner.

Courtesy of FORD MOTOR COMPANY
Install the windshield moldings.

Courtesy of FORD MOTOR COMPANY

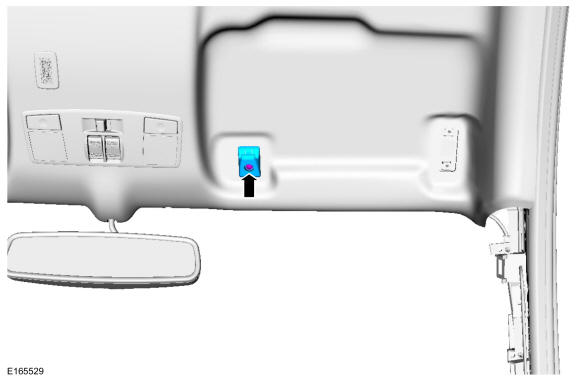

Install the sunvisor hook and tighten the retainer.

Courtesy of FORD MOTOR COMPANY

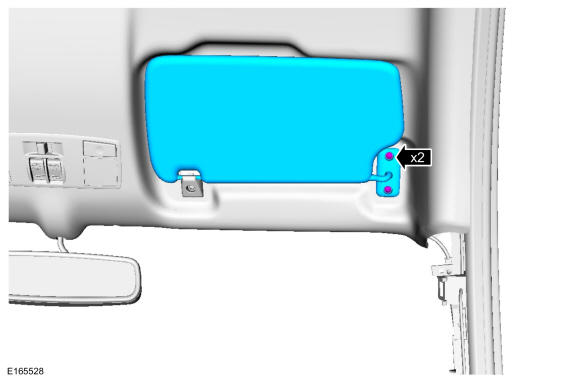

Install the RH side sunvisor and tighten the retainers.

Courtesy of FORD MOTOR COMPANY
Install B-pillar trim panel. Refer to: B-Pillar Trim Panel .
Install Pillar trim panel. Refer to: A-Pillar Trim Panel .
Install interior rear view mirror. Refer to: Interior Rear View Mirror .
Install the cowl panel grille. Refer to: Cowl Panel Grille .
