Front Quarter Window Glass: Installation

WARNING: Repair any corrosion found on the pinch weld. The pinch weld is a structural component of the vehicle. Corrosion left unrepaired may reduce the structural integrity of the vehicle. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Avoid scratching the pinch weld. Repair all minor scratches or exposed metal on the pinch weld following manufacturer's instructions. Use the same brand pinch weld primer, glass primer and urethane adhesive.

NOTE: Touching the adhesive surface impairs rebonding.

NOTE: Make sure the mating surfaces are clean and free of foreign material.

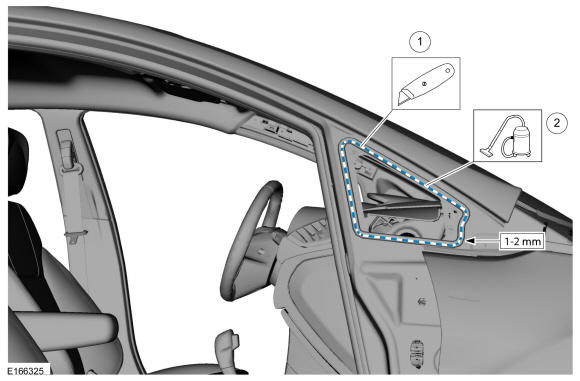

- Using a utility knife, trim the urethane adhesive leaving a 1-2 mm (0.04-0.08 in) base of original equipment urethane adhesive on the pinch weld.
- Using a soft brush or vacuum, remove any foreign material or dirt from the pinch weld.
Courtesy of FORD MOTOR COMPANY
If installing the original front quarter window glass, using a utility knife visually inspect and remove remaining urethane adhesive from the glass leaving a thin layer to bond with the new urethane adhesive bead.

Courtesy of FORD MOTOR COMPANY

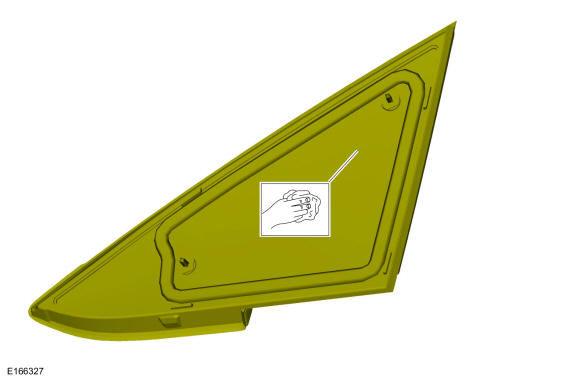

Clean the inside of the new front quarter window glass with glass cleaner.
Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and glass primer. For additional information, refer to the Material Chart in this procedure.

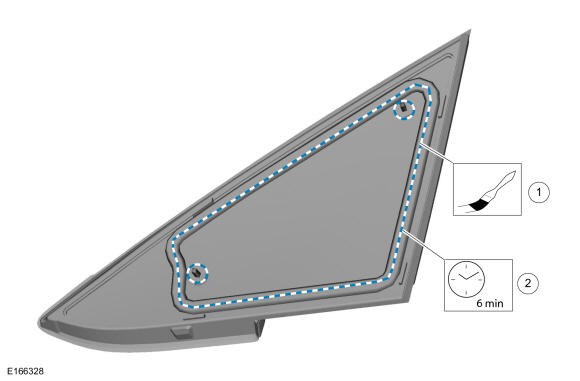

If installing a new front quarter window glass, apply glass primer according to manufacturer's instructions. Allow at least 6 minutes to dry.

Material: Dow Urethane One Step Glass Primer / Betaprime™ 5500/5500A/5500SA

Material: Sika Urethane Metal and Glass Primer / Sika 206 G+P

Courtesy of FORD MOTOR COMPANY
Cut the urethane adhesive applicator tip to specification.
Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
NOTE: The front quarter window glass must be positioned within 10 minutes of applying the urethane adhesive.

NOTE: Use either a high-ratio air, electric or battery-operated caulk gun that will apply the urethane adhesive with less effort and a continuous bead.

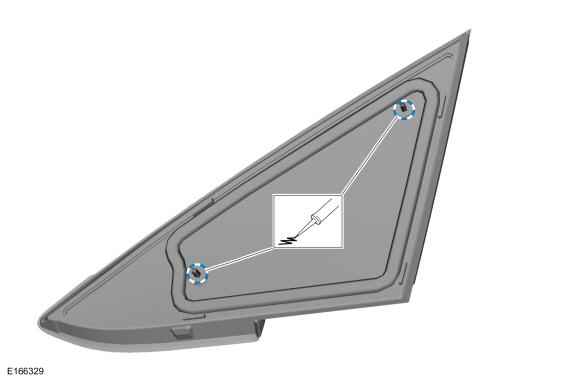

Apply urethane adhesive to the outside edges of locating pins on the front quarter window glass. Use Special Service Tool: AST405.

Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
The new urethane adhesive bead applied must be 14 mm (0.551 in) high and 8 mm (0.314 in) wide.
Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
NOTE: The front quarter window glass must be positioned within 10 minutes of applying the urethane adhesive.

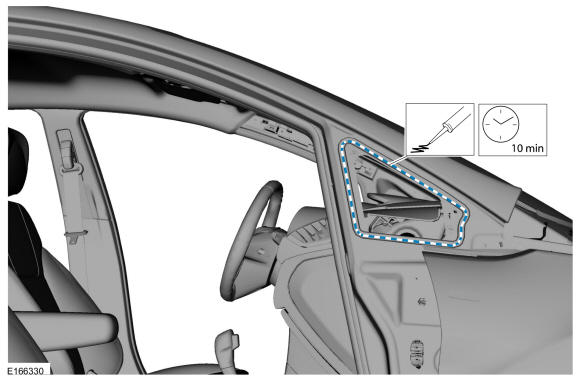

Apply a bead of urethane adhesive starting at the middle of the door jamb side and work around to the front quarter window glass to specification, making sure there are no gaps in the bead. Use Special Service Tool: AST405.

Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
NOTE: The door windows must be left open during the adhesive curing time.

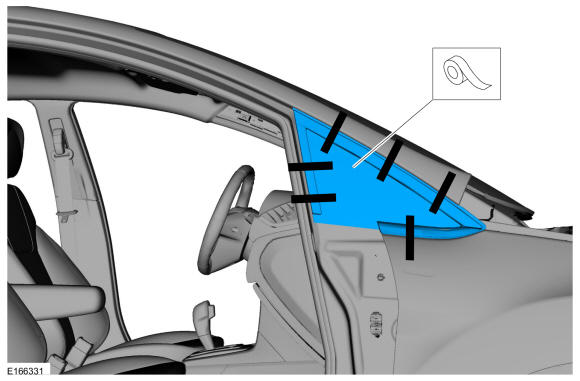

Install the front quarter window glass. Using tape, secure the front quarter window glass in the correct position until the adhesive has cured.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not drive vehicle until the urethane adhesive seal has cured. Follow urethane adhesive manufacturer's curing directions. Inadequate or incorrect curing of the urethane adhesive seal will adversely affect glass retention. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

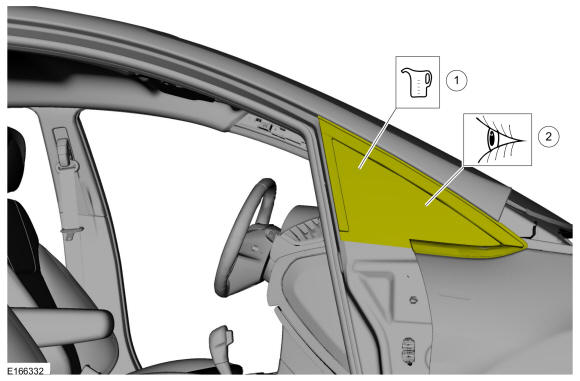

After the urethane adhesive has cured, check the front quarter window glass seal for air or water leaks through the urethane adhesive bead and add urethane adhesive as necessary.

Courtesy of FORD MOTOR COMPANY

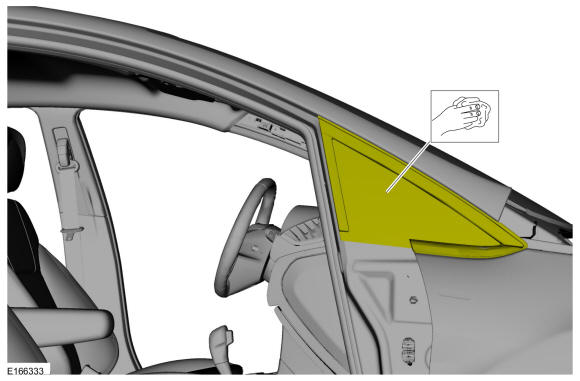

If necessary, remove excess urethane adhesive from the exterior surface of the front quarter window glass.
Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)

Courtesy of FORD MOTOR COMPANY
Refer to: A-Pillar Trim Panel .
