Fuse And Relay Information

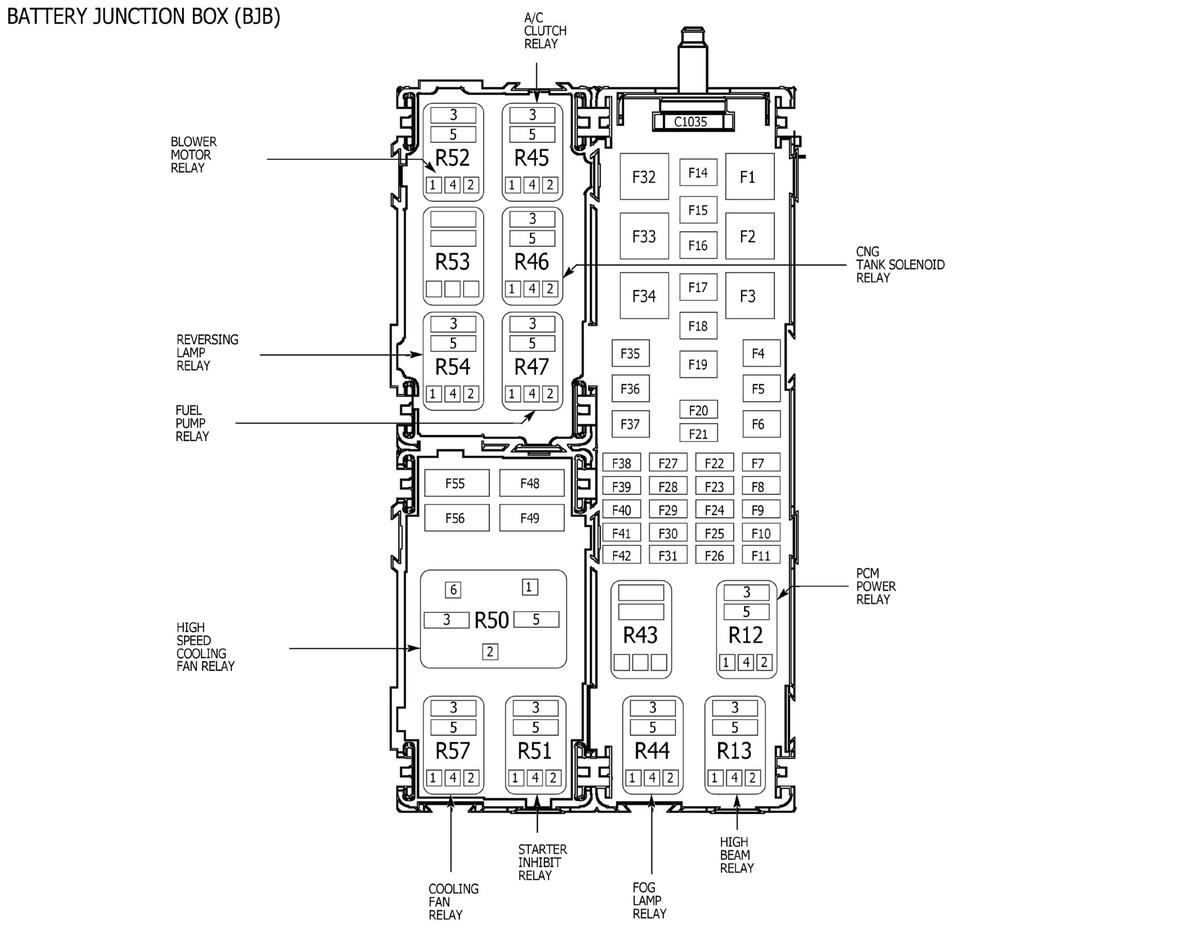

Fig 1: Battery Junction Box Components Location
GFDWR17703Courtesy of FORD MOTOR COMPANY

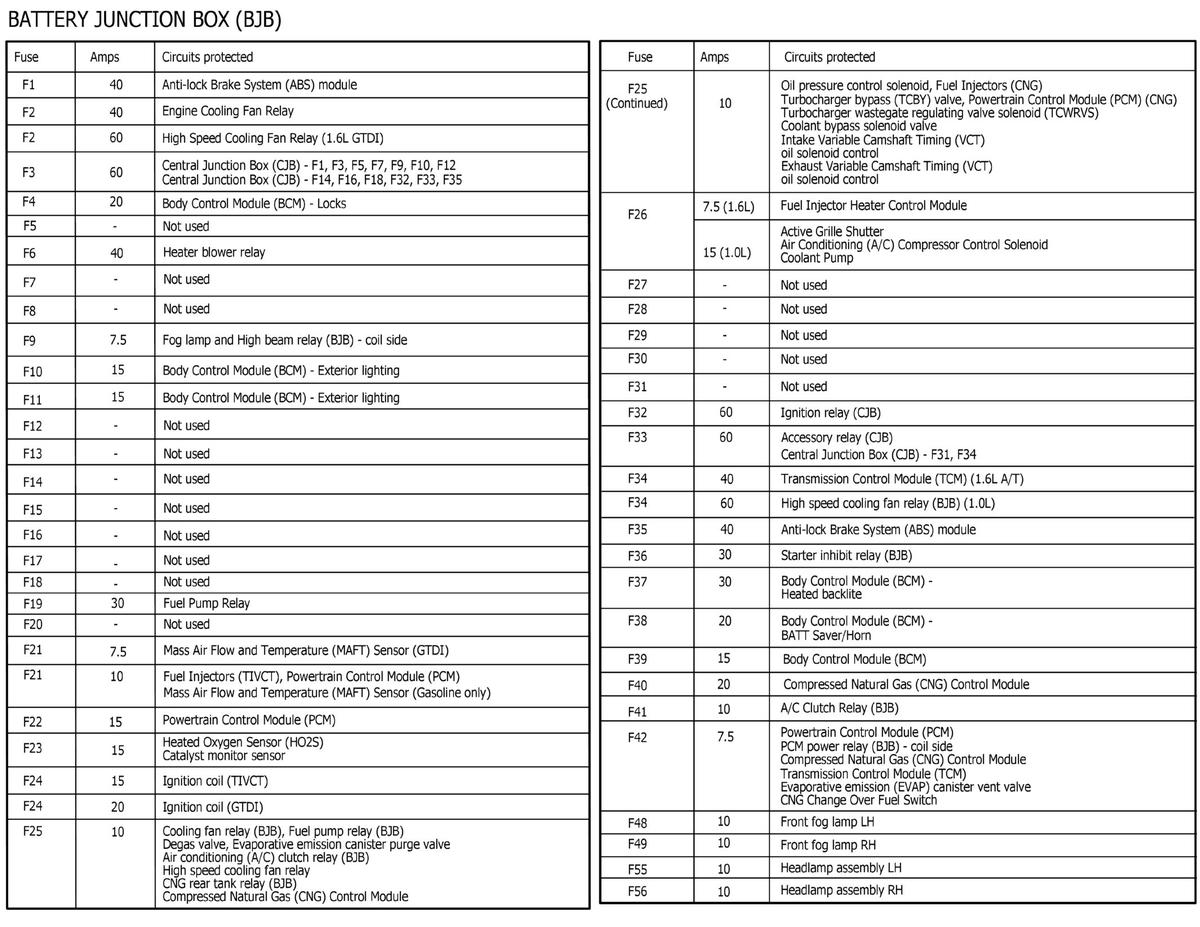

Fig 2: Battery Junction Box Components Location Legend
GFDWR17700Courtesy of FORD MOTOR COMPANY

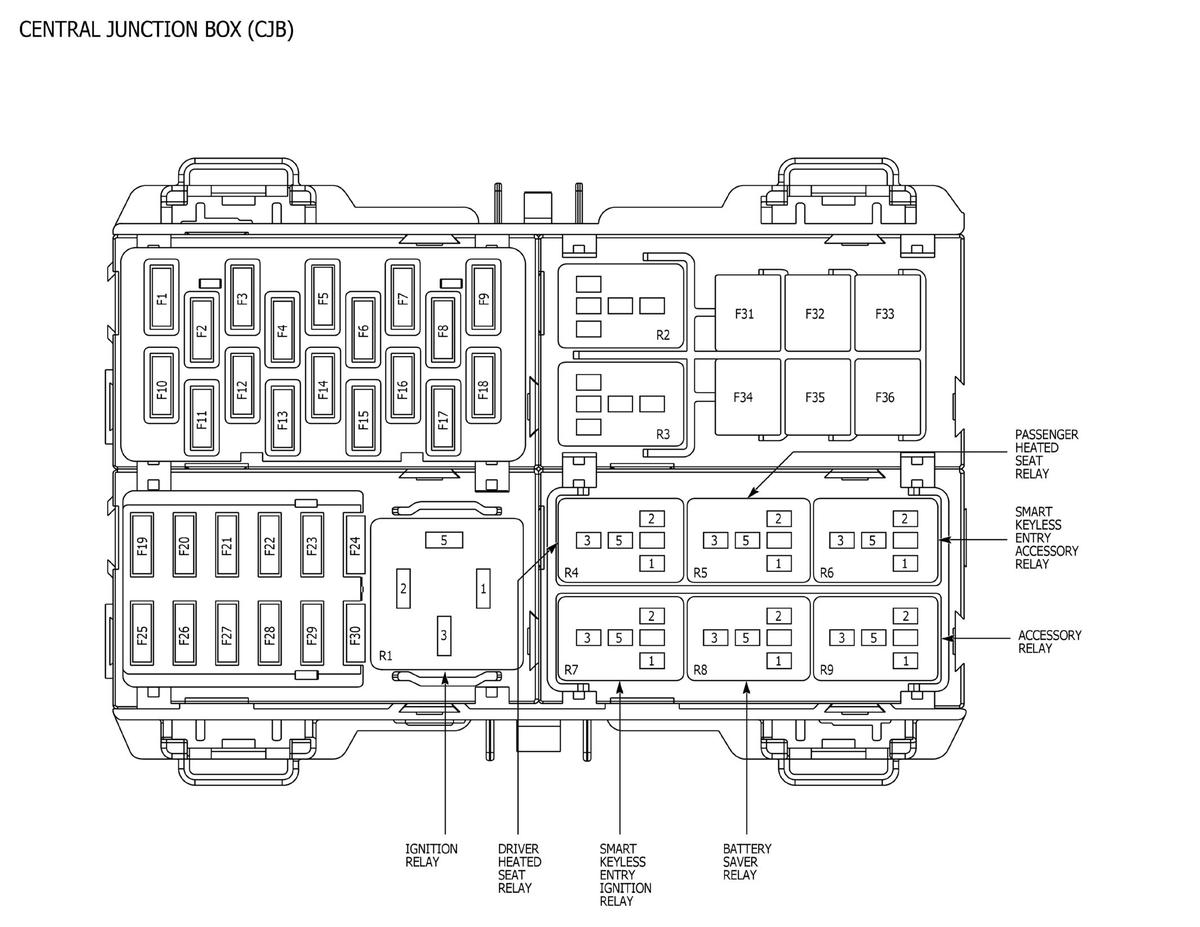

Fig 3: Central Junction Box Components Location
GFDWR17701Courtesy of FORD MOTOR COMPANY

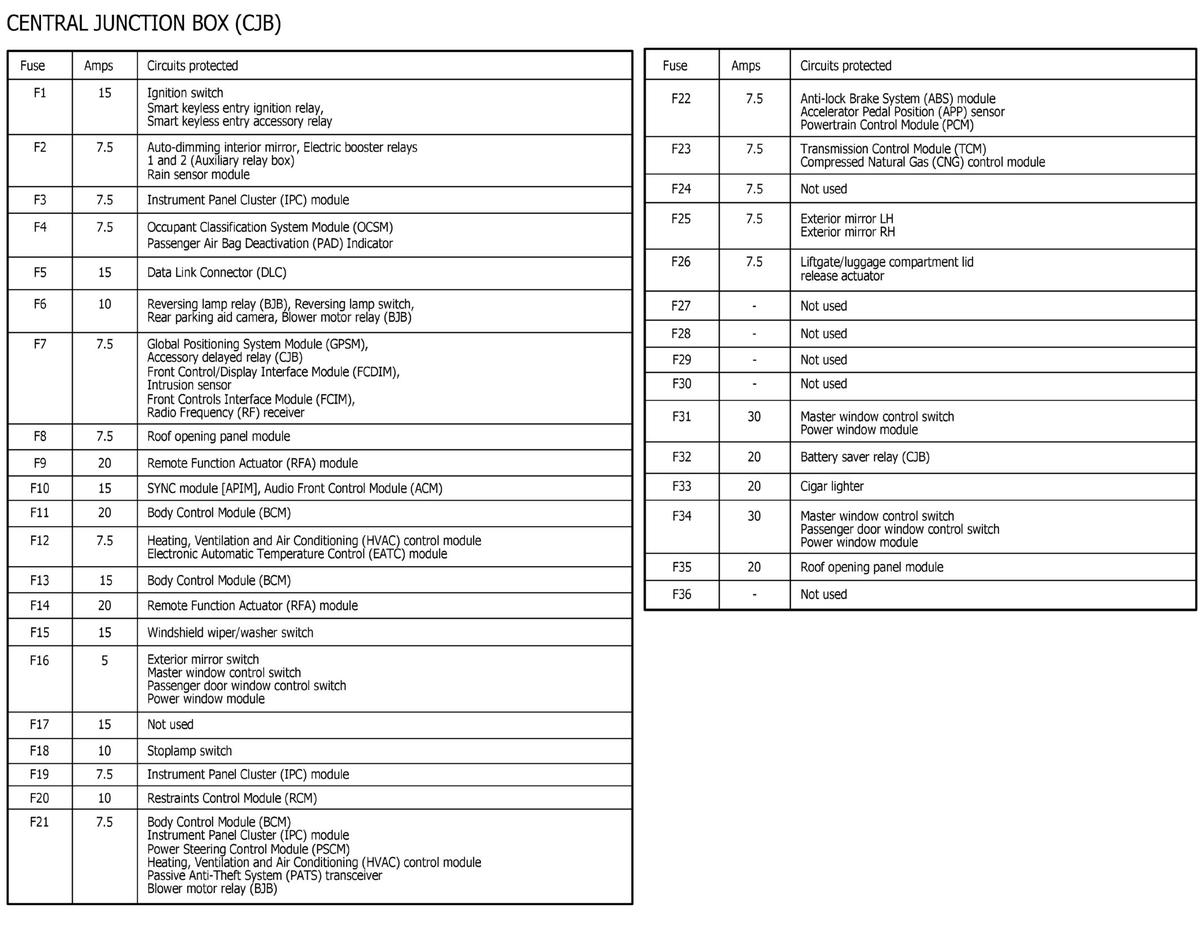

Fig 4: Central Junction Box Components Location Legend
GFDWR17704Courtesy of FORD MOTOR COMPANY

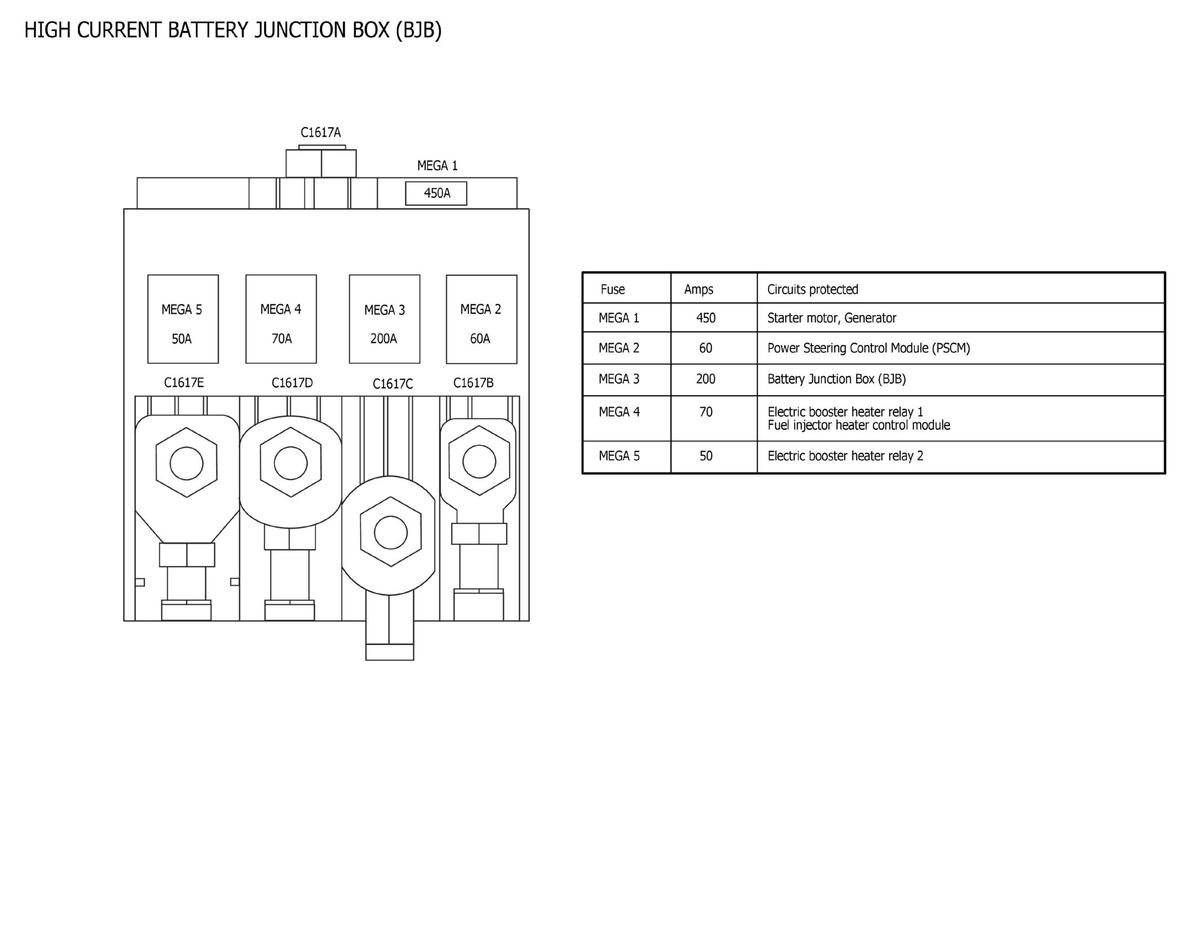

Fig 5: High Current Battery Junction Box Components Location & Legend
GFDWR17705Courtesy of FORD MOTOR COMPANY

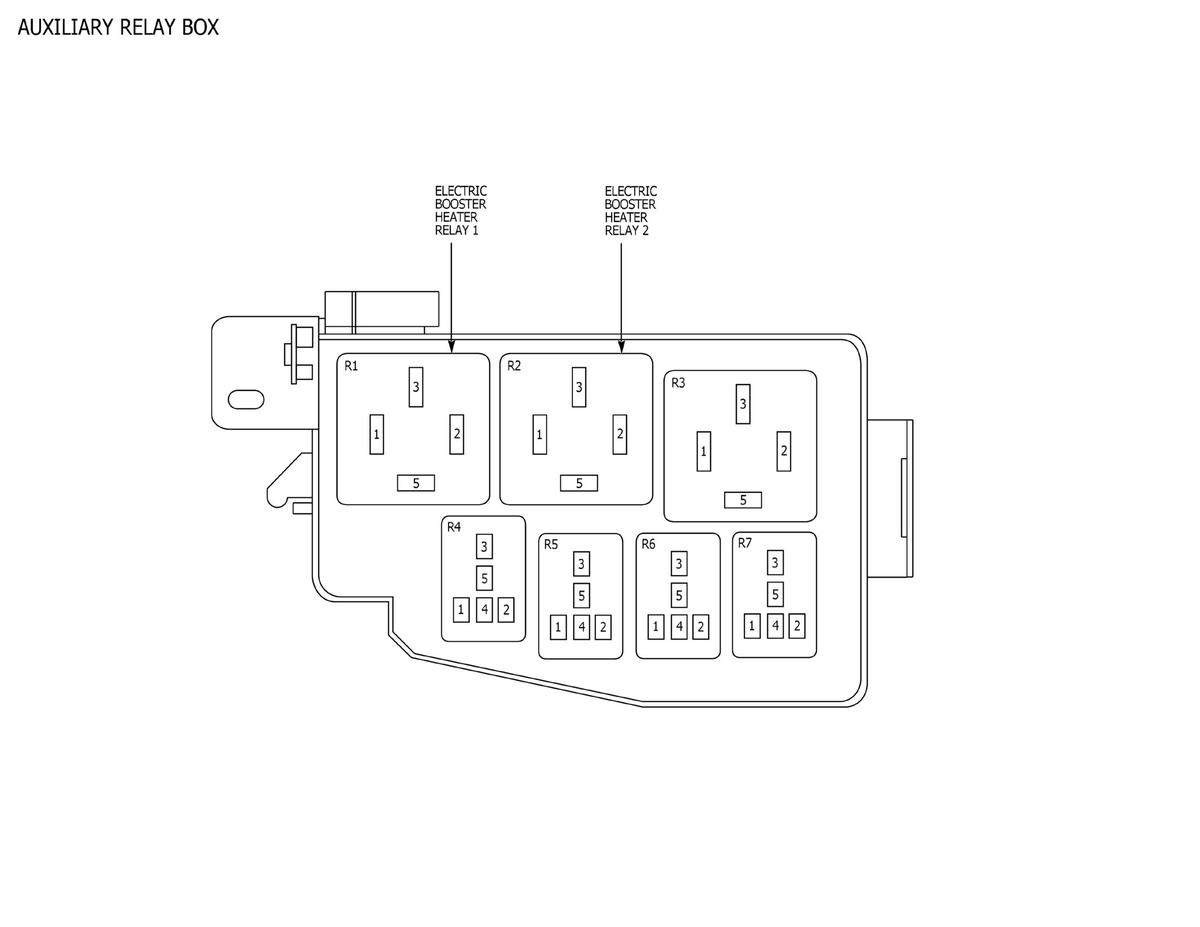

Fig 6: Auxiliary Junction Box Components Location
GFDWR17702Courtesy of FORD MOTOR COMPANY
