Front Seat: Installation

  1. To install, reverse the removal procedure.

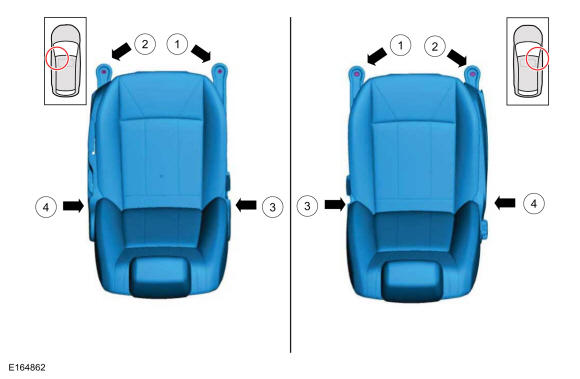

  2. Install the front seat bolts in the following sequence.

    1. Install the front inboard bolt.

      Torque: 26 lb.ft (35 Nm)

    2. Install the front outboard bolt.

      Torque: 26 lb.ft (35 Nm)

    3. Install the rear inboard bolt.

      Torque: 26 lb.ft (35 Nm)

    4. Install the rear outboard bolt.

      Torque: 26 lb.ft (35 Nm)

    GFD302726Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
