Front Seat Backrest: Installation

Install the front seat backrest and tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the recline handle.
2. Tighten the bolt.
3. Push the recline handle fully toward the inboard side of the seat, then release the pressure on the recline handle.
Courtesy of FORD MOTOR COMPANY

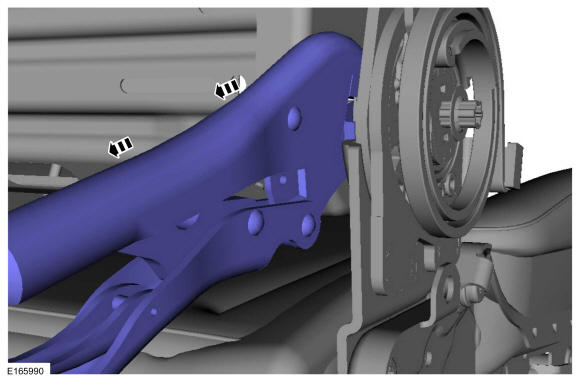

On both sides, immobilize the recline shaft using the locking pliers clamped to the shaft and flush up against the side of the recliner. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY
If the clearance between the inboard push nut and the bushing exceeds 0.5 mm (0.019 in), install a 0.5 mm (0.019 in) feeler gauge or shim between the inboard push nut and the bushing and slide the inboard push nut tight against the feeler gauge or shim. Use the General Equipment: Feeler Gauge

Courtesy of FORD MOTOR COMPANY
1. Remove the bolt.
2. Remove the recline handle.
- Push the outboard push nut (located behind recline handle) flush to the outboard bushing.
Courtesy of FORD MOTOR COMPANY
On both sides. Remove the locking pliers.

Courtesy of FORD MOTOR COMPANY
Verify the clearance between the outboard push nut and bushing is between 0.3 mm and 1.0 mm (0.011 in and 0.039 in). Use the General Equipment: Feeler Gauge

Courtesy of FORD MOTOR COMPANY
1. Install the side shield.
2. Install the screw.
  Torque: 27 lb.in (3.0 Nm)
3. If equipped. Install the height adjustment handle.
Courtesy of FORD MOTOR COMPANY
1. Install the recline handle.
2. Tighten the bolt.
  Torque: 35 lb.in (4.0 Nm)
3. Install the bolt cover.
Courtesy of FORD MOTOR COMPANY

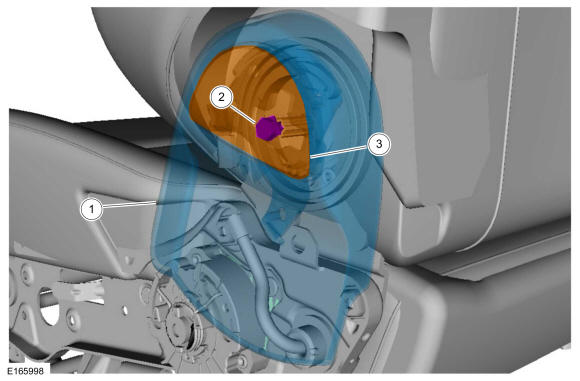

1. Attach the electrical harness to the recliner cover clip.
2. Install the recliner cover.
3. Tighten the screw.
  Torque: 27 lb.in (3.0 Nm)
Courtesy of FORD MOTOR COMPANY
Install the front seat. Refer to: Front Seat .
