Mode Indicator Switch (MIS): Removal

NOTE: Only vehicles with a mechanical shift transfer case are equipped with a Mode Indication Switch (MIS).

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

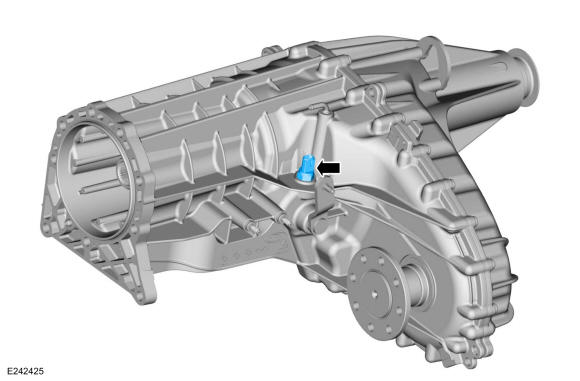

Disconnect the mode indicator electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the MIS.
Torque: 30 lb.ft (41 Nm)

Courtesy of FORD MOTOR COMPANY
