Fuel Rail: Installation

Left side

1. NOTE: The fuel rail bolts will be tightened in the fuel injector supply tube procedure.

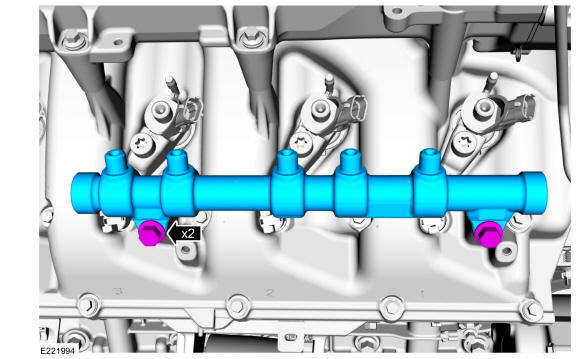

   Install the left fuel rail. Hand start the left fuel rail bolts at this stage.

   Courtesy of FORD MOTOR COMPANY

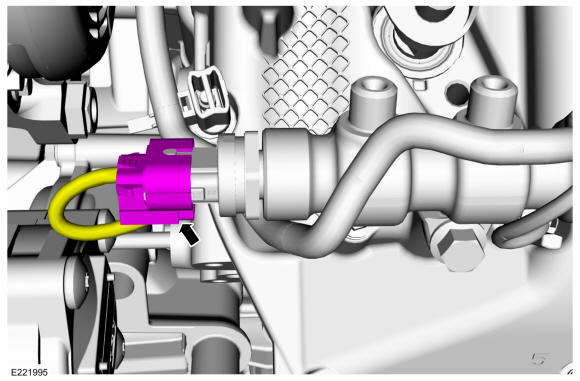

2. Connect the fuel rail pressure sensor electrical connector at the front of the left fuel rail.

   Courtesy of FORD MOTOR COMPANY

3. Install the left fuel injector supply tubes. Refer to: Fuel Injector Supply Tube .

   Right side

4. NOTE: The fuel rail bolts will be tightened in the fuel injector supply tube procedure.

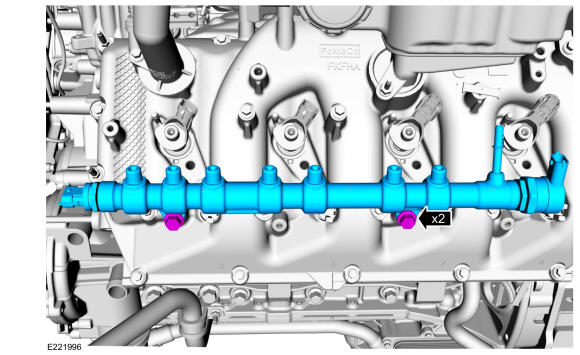

   Install the right fuel rail. Hand start the right fuel rail bolts at this stage.

   Courtesy of FORD MOTOR COMPANY

5. Install the right fuel injector supply tubes. Refer to: Fuel Injector Supply Tube .

   Both sides

6. Install the fuel rail supply tube assembly. Refer to: Fuel Rail Supply Tube .
