Cylinder Head: Assembly
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
All cylinder heads
- 1.
Install the valve.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
NOTE:
Lubricate the valve stem seal with clean engine oil prior to installation.
Using the Valve Stem Oil Seal Installer, install a new valve stem seal.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

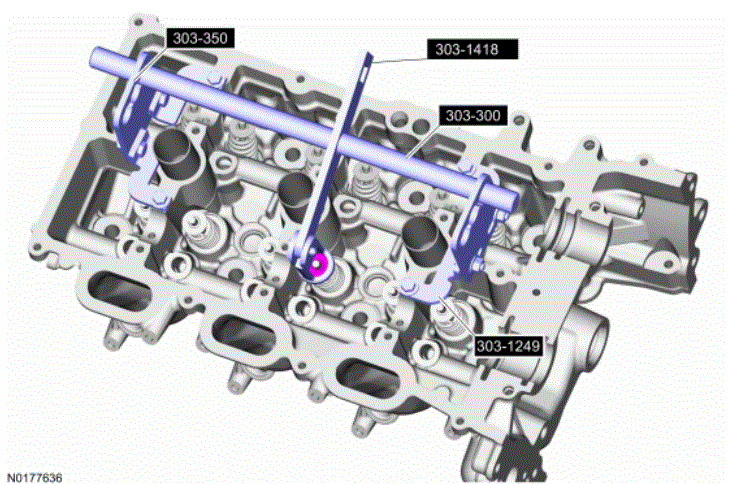

Using the Valve Spring Compressors, install the valve spring, retainer and key.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Repeat the above steps for each valve.
- 5.
Install the timing chain guide pin.
- Tighten to 10 Nm (89 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
RH cylinder head
- 6.
Install the timing chain tensioner arm pin.
- Tighten to 10 Nm (89 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Install a new CHT sensor.
- Tighten to 10 Nm (89 lb-in).
