Piston Selection

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Check

  1. Refer to specifications for piston selection. REFER to: Specifications - 2.7L EcoBoost . Refer to: Specifications - 3.3L Duratec . Refer to: Specifications - 3.5L EcoBoost . Refer to: Specifications - Raptor - 3.5L EcoBoost . Refer to: Specifications - 5.0L 32V Ti-VCT .
  2. NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

    • Measure the cylinder bore in 2 directions.

    • Select a piston size based on the cylinder bore.

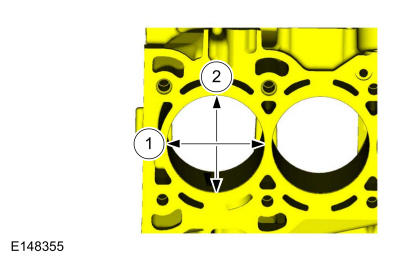

GFD240919Courtesy of FORD MOTOR COMPANY
