Frame Members-Rear Frame Section: Removal

Restore the vehicle to manufacturer's dimensions. Refer to: Body and Frame .
Remove the following items:
1. Refer to: Rear Bumper .
2. Refer to: Pickup Bed .
3. As equipped. Refer to: Muffler and Tailpipe 3.5L EcoBoost (272kW/370PS) . Refer to: Muffler and Tailpipe 3.5L EcoBoost (272kW/370PS) . Refer to: Muffler and Tailpipe 2.7L EcoBoost (238kW/324PS) . Refer to: Muffler and Tailpipe 5.0L 32V Ti-VCT .
4. As equipped. Refer to: Fuel Tank Filler Pipe 2.7L EcoBoost (238kW/324PS) . Refer to: Fuel Tank Filler Pipe 3.3L Duratec - V6 . Refer to: Fuel Tank Filler Pipe 3.5L EcoBoost (272kW/370PS) . Refer to: Fuel Tank Filler Pipe 5.0L 32V Ti-VCT .
5. Refer to: Rear Shock Absorber .
6. Refer to: Spring .
Rear frame section overview.

Courtesy of FORD MOTOR COMPANY
Position the vehicle on a frame rack and anchor per manufacturer's instructions.
NOTE: The rear frame section is retained by a welded joint and upper and lower frame rail reinforcements approximately midway between the leaf spring frame brackets.

NOTE: Use caution not cut into the mid rear side rail as it will be reused.

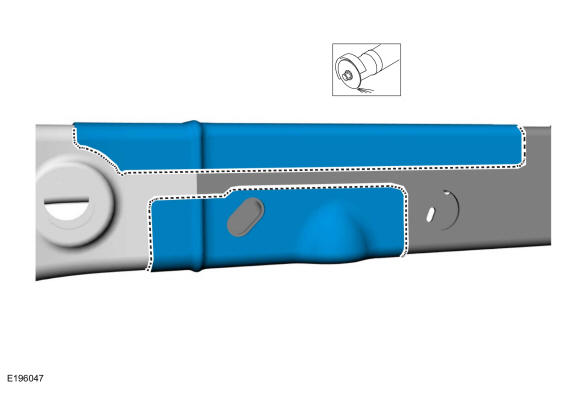

Grind the welds that attach the upper and lower reinforcements and remove the reinforcements on both sides. Use the General Equipment: Grinder

Courtesy of FORD MOTOR COMPANY

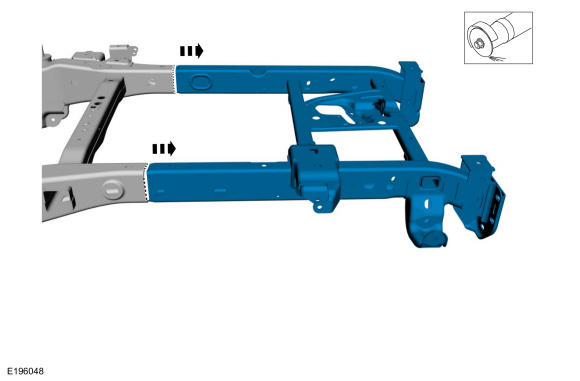

Grind the welds that retain the mid rear and rear frame sections.

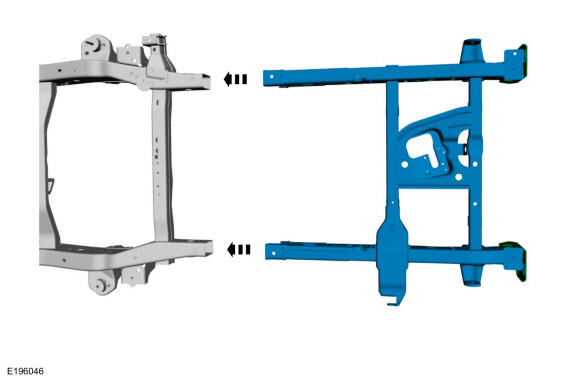

- Separate the ground area of the joints using an air chisel or similar tool and remove the complete rear frame section. Use the General Equipment: Grinder

Courtesy of FORD MOTOR COMPANY
