Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the selector lever bezel. REFER to: Selector Lever Bezel .

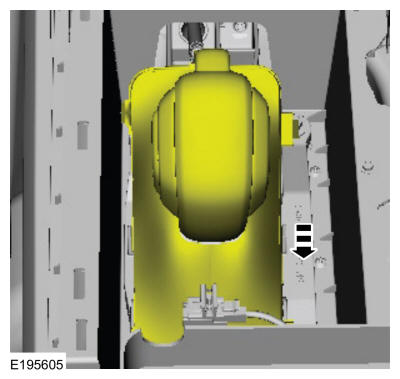

  2. Shift the selector lever into 1.
    GFD246887Courtesy of FORD MOTOR COMPANY
  3. Disconnect the electrical connector.
    GFD246888Courtesy of FORD MOTOR COMPANY

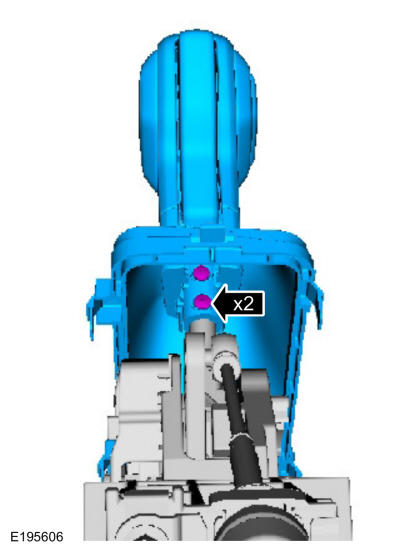

  4. Remove the screws and the selector lever knob and boot.
    GFD246889Courtesy of FORD MOTOR COMPANY

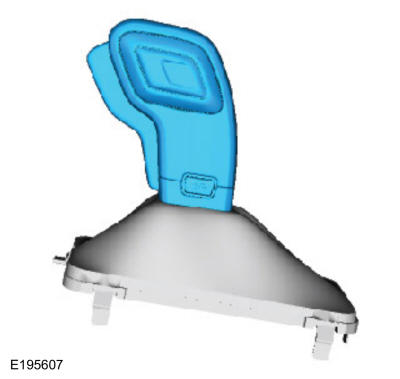

  5. Remove the selector lever knob from the boot.
GFD246890Courtesy of FORD MOTOR COMPANY
