Selector Lever Bezel: Removal

NOTE: Removal steps in this procedure may contain installation details.

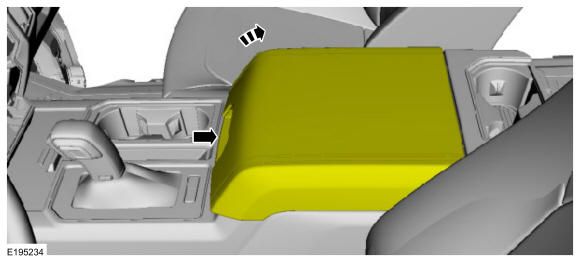

  1. Open the console.
    GFD246879Courtesy of FORD MOTOR COMPANY

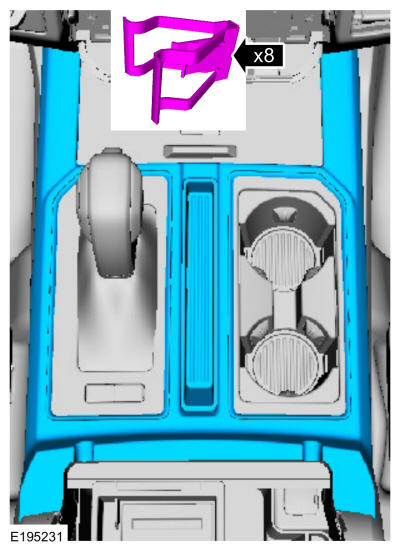

  2. Remove the console trim panel.
    GFD246886Courtesy of FORD MOTOR COMPANY

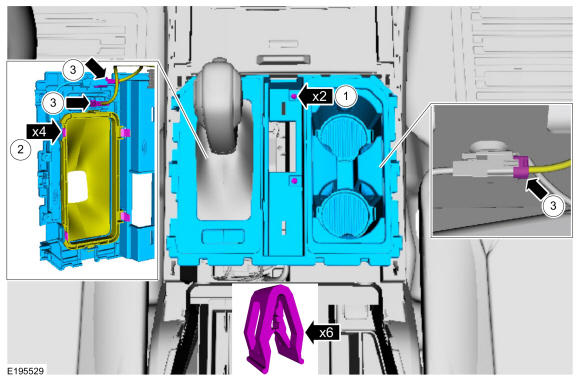

  3. Remove the selector lever bezel.

    1. Remove the screws and lift the bezel to access the selector lever knob boot and the electrical connectors.
    2. Release the tabs and disconnect the selector lever knob boot.
    3. Disconnect the electrical connectors.

GFD246881Courtesy of FORD MOTOR COMPANY
