Selector Lever Assembly - Vehicles With: Column Shift: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the steering column shrouds. REFER to: Steering Column Shrouds .

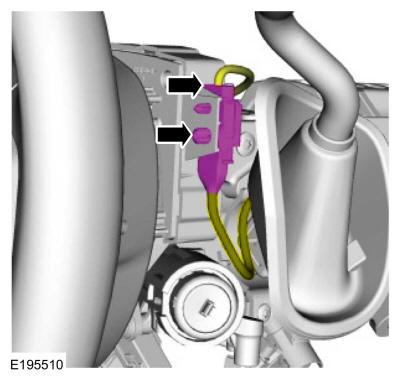

2. Disconnect the selector lever assembly electrical connector.

   Courtesy of FORD MOTOR COMPANY

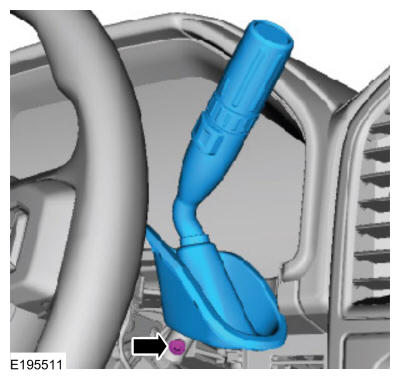

3. Remove the bolt and the selector lever assembly.

   Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
