Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver air bag. REFER to: Driver Airbag .

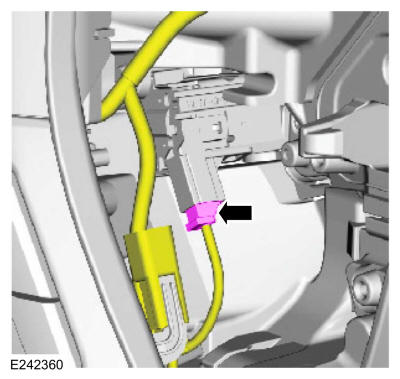

  2. Disconnect the downshift paddle switch electrical connector.
    GFD246919Courtesy of FORD MOTOR COMPANY

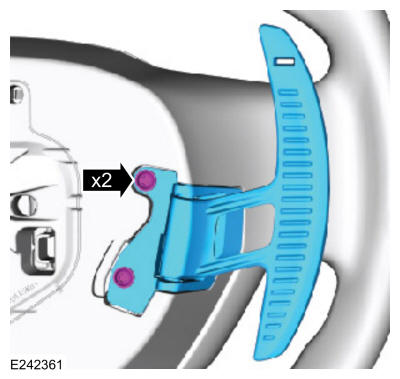

  3. Remove the screws and the downshift paddle switch.
GFD246920Courtesy of FORD MOTOR COMPANY
