OEM Ground Distribution: Grounds

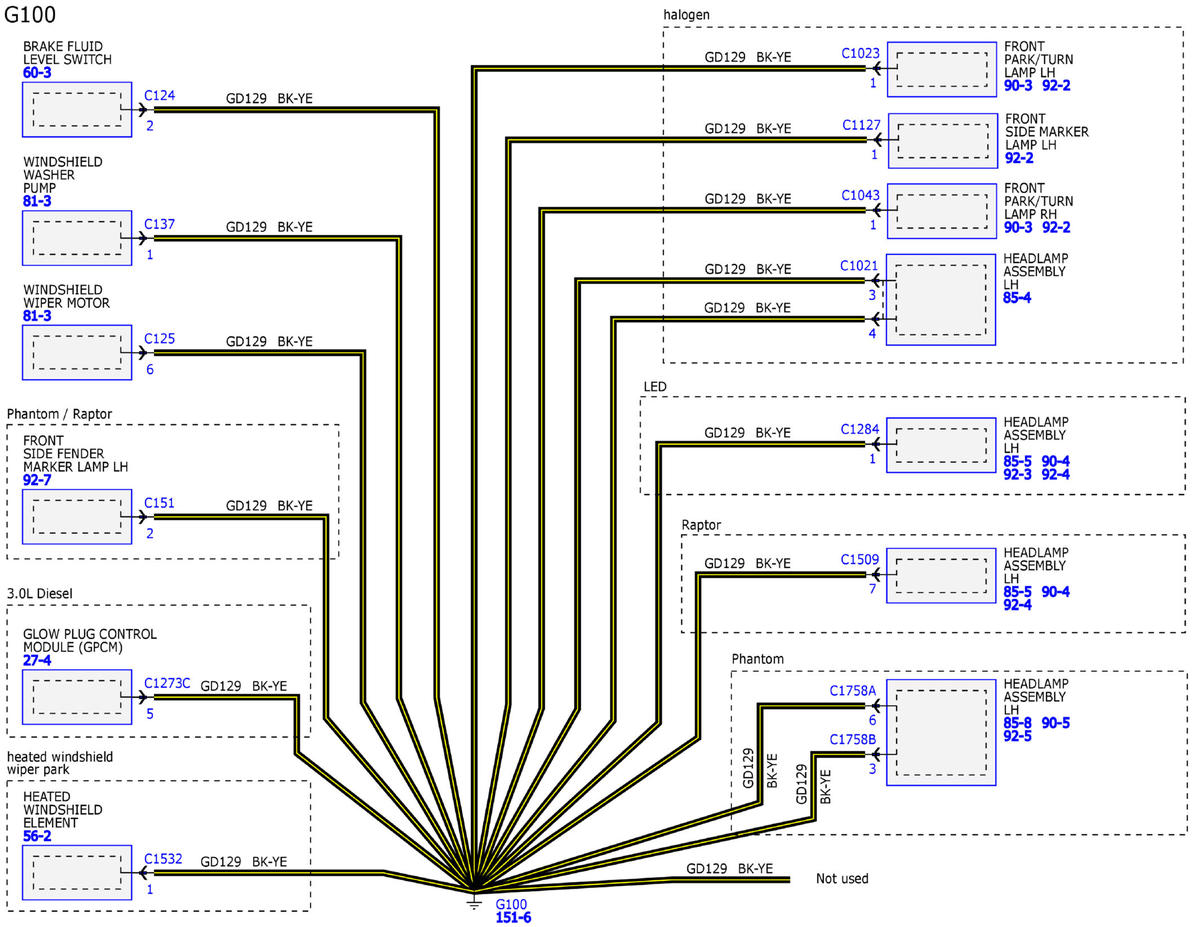

GFDW94413Courtesy of FORD MOTOR COMPANY

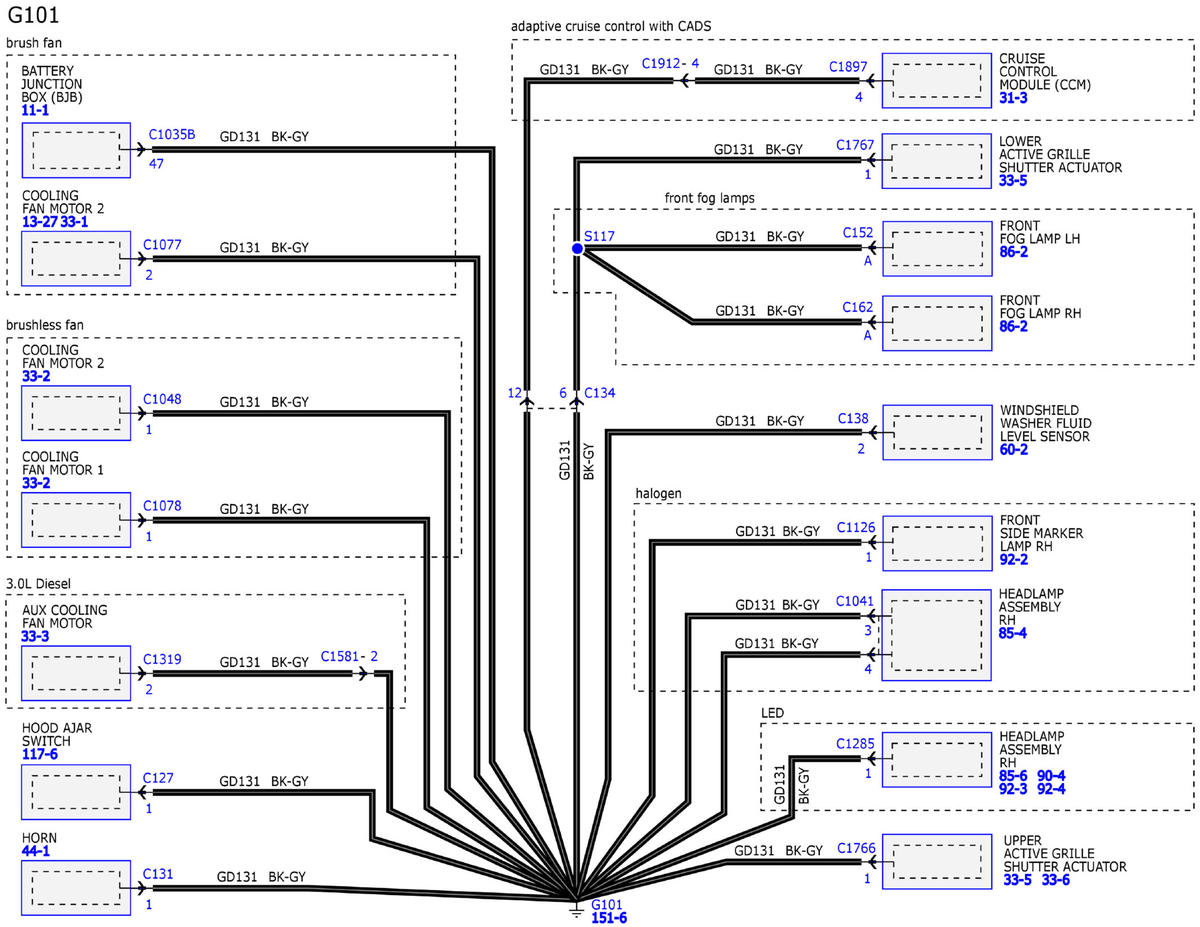

GFDW94414Courtesy of FORD MOTOR COMPANY

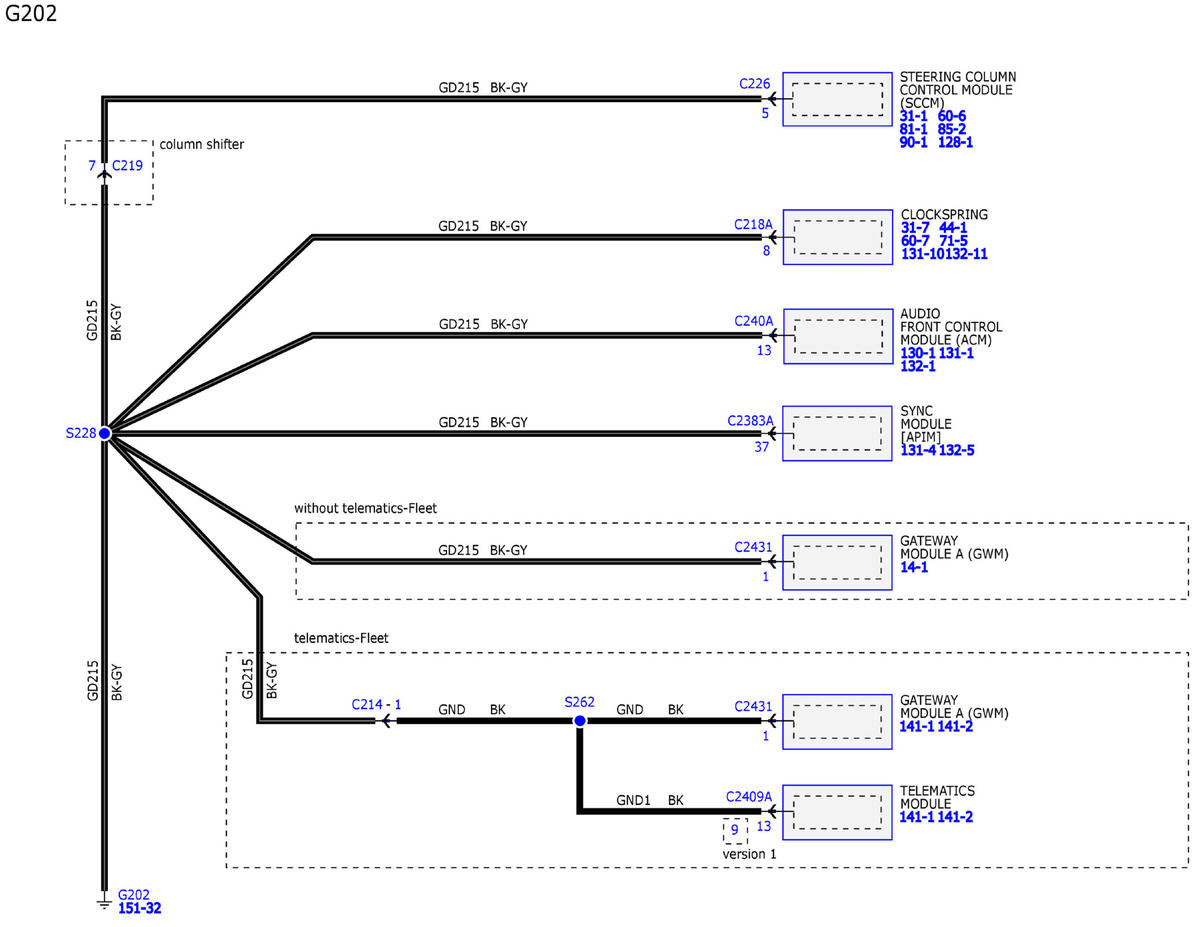

GFDW94415Courtesy of FORD MOTOR COMPANY

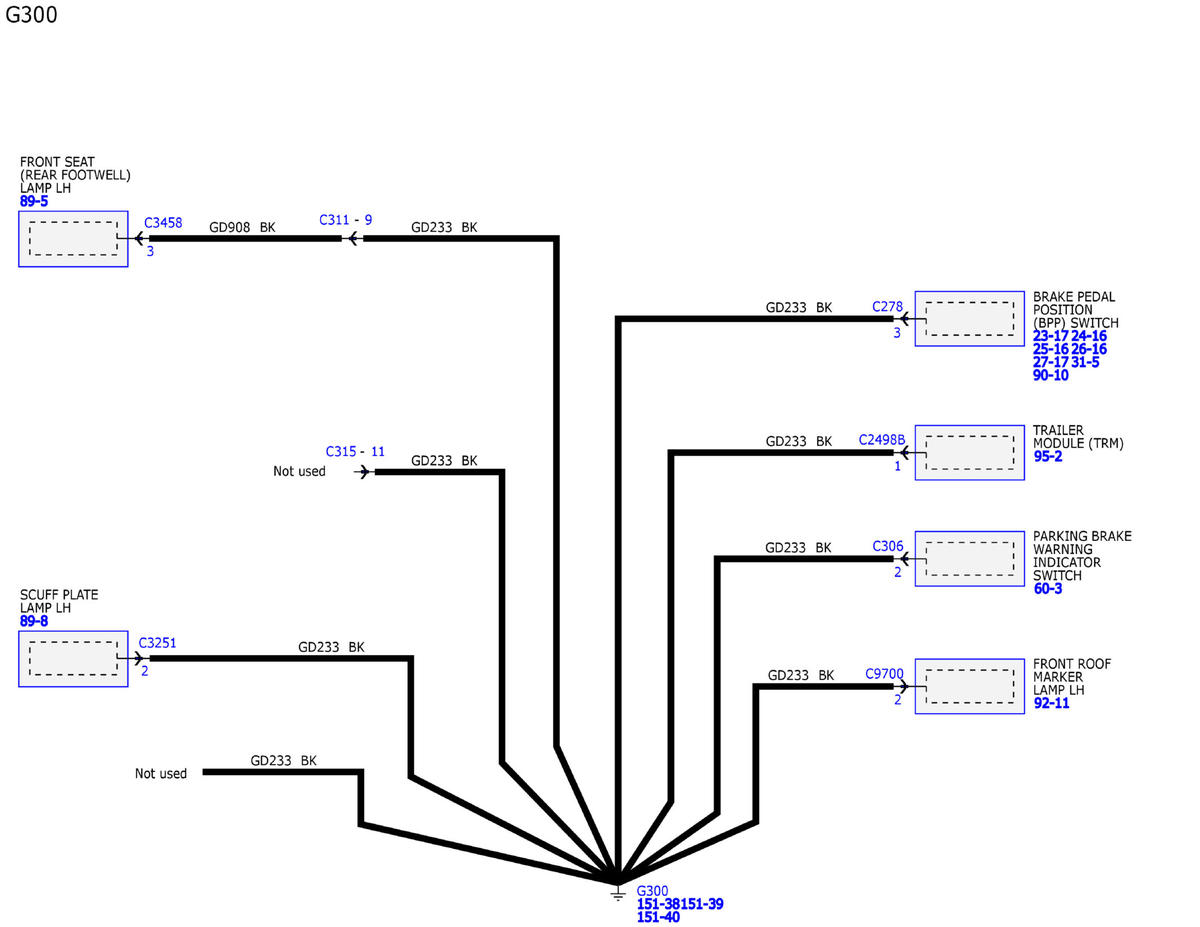

GFDW94416Courtesy of FORD MOTOR COMPANY

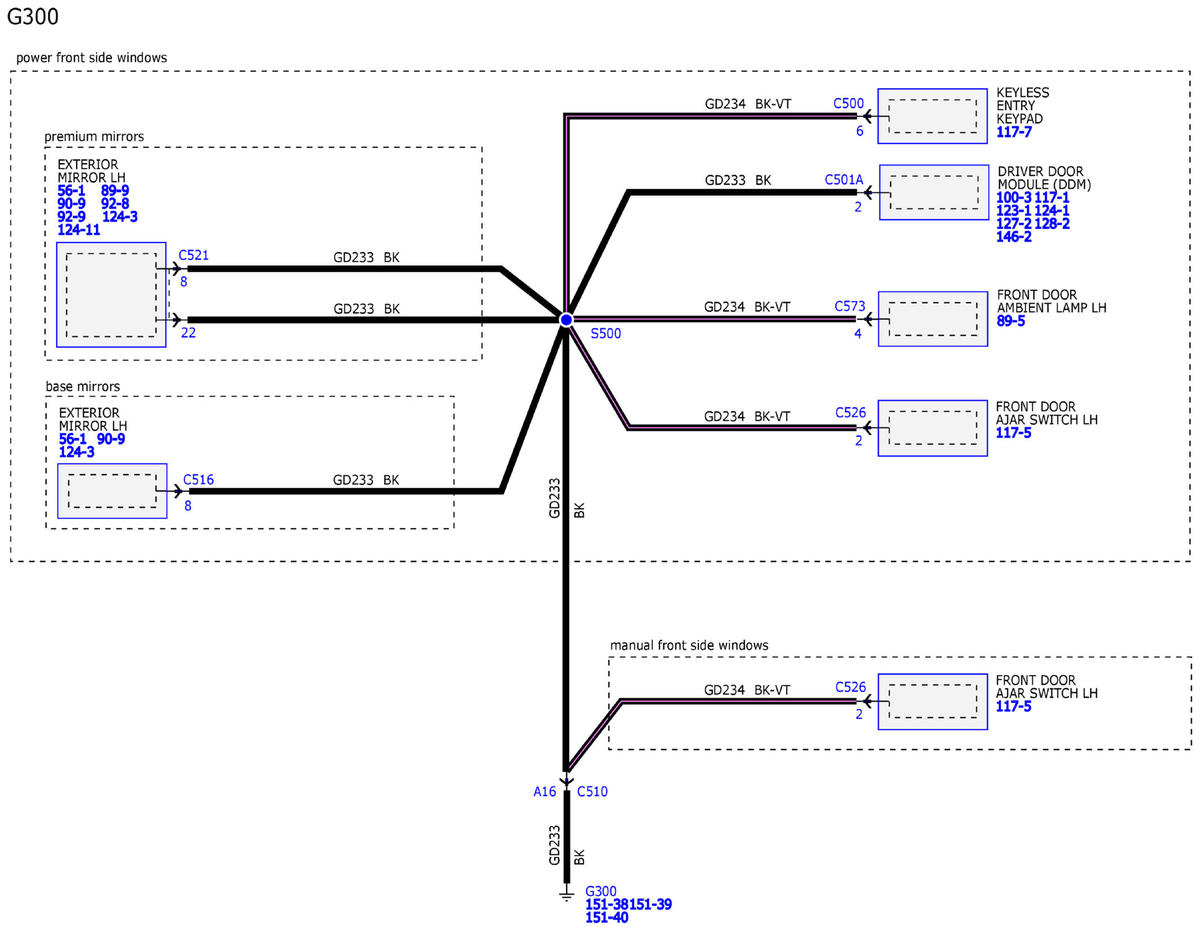

GFDW94417Courtesy of FORD MOTOR COMPANY

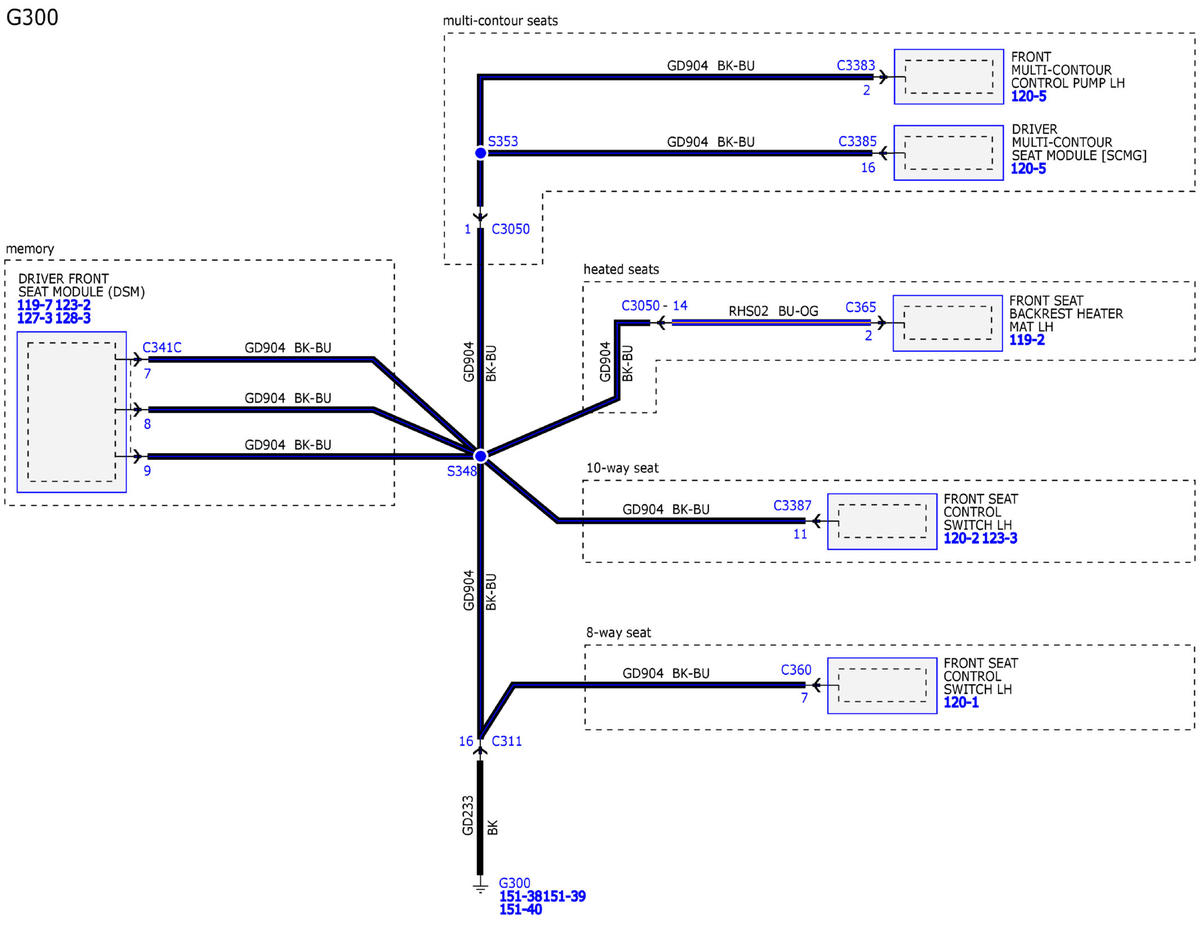

GFDW94418Courtesy of FORD MOTOR COMPANY

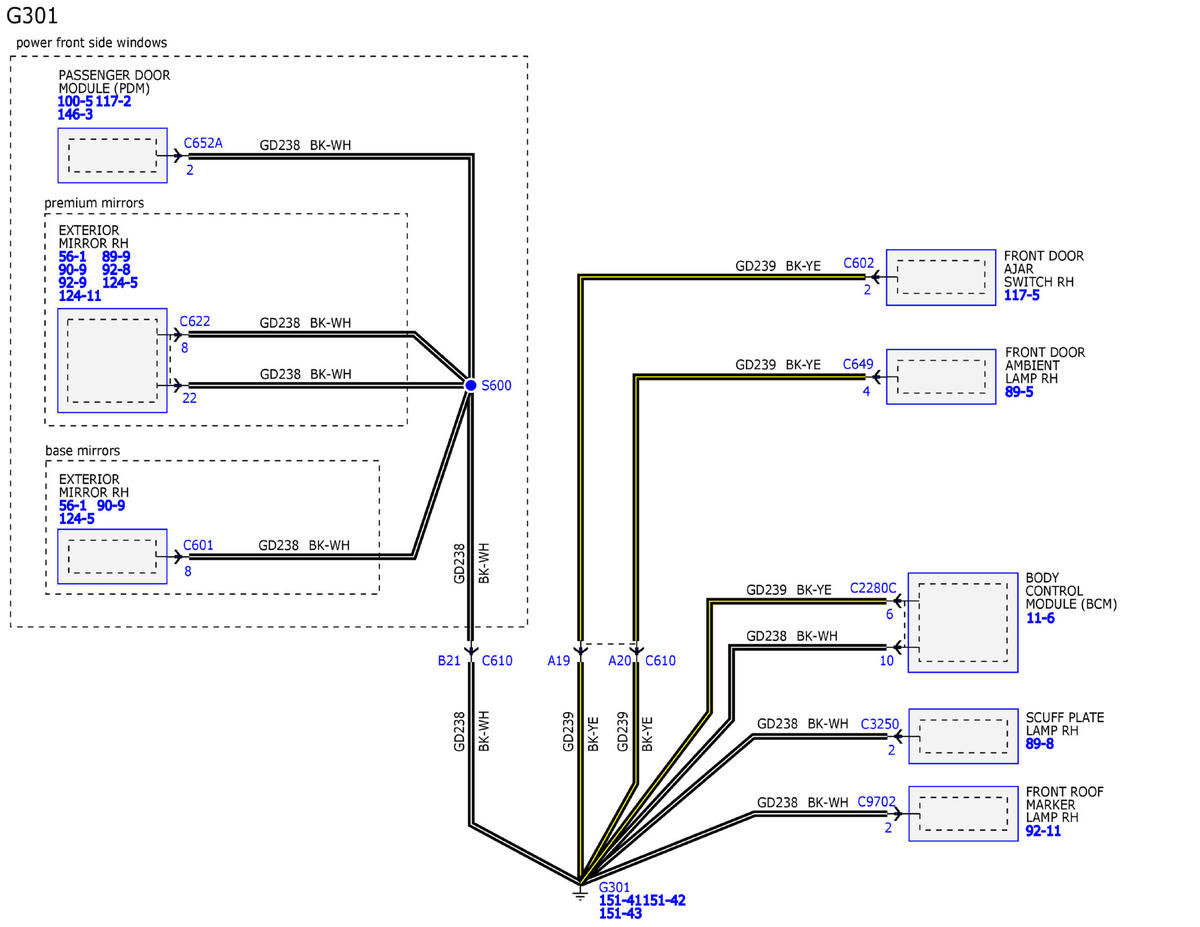

GFDW94419Courtesy of FORD MOTOR COMPANY

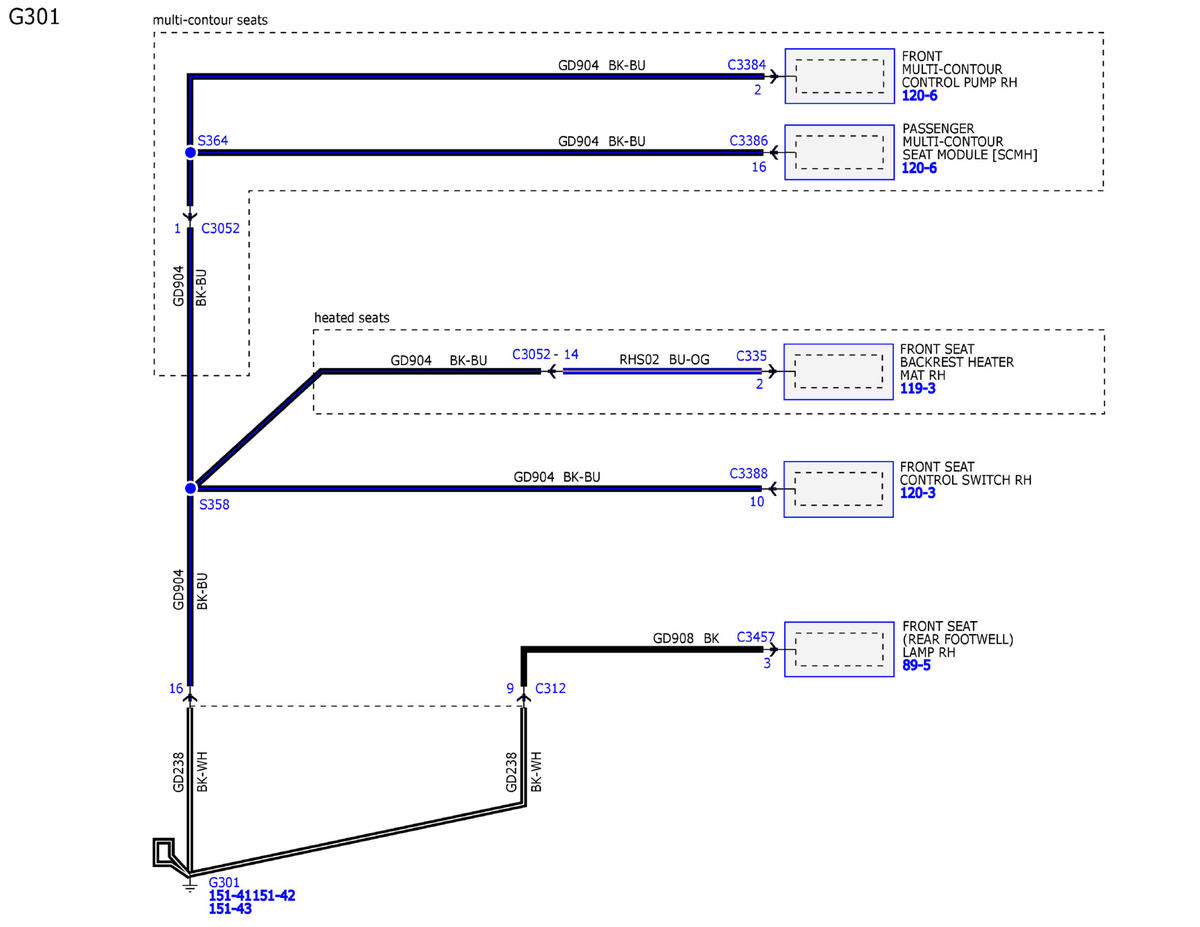

GFDW94420Courtesy of FORD MOTOR COMPANY

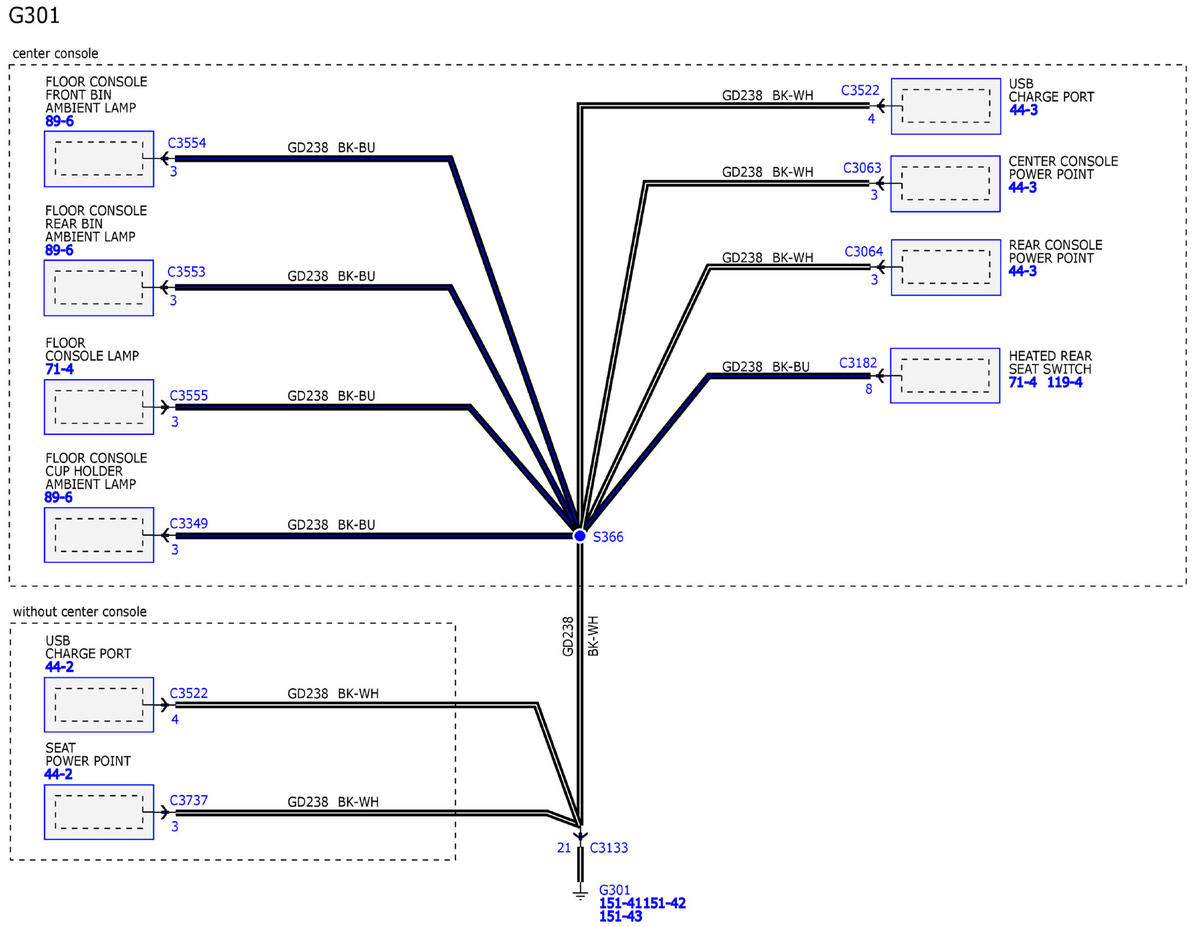

GFDW94421Courtesy of FORD MOTOR COMPANY

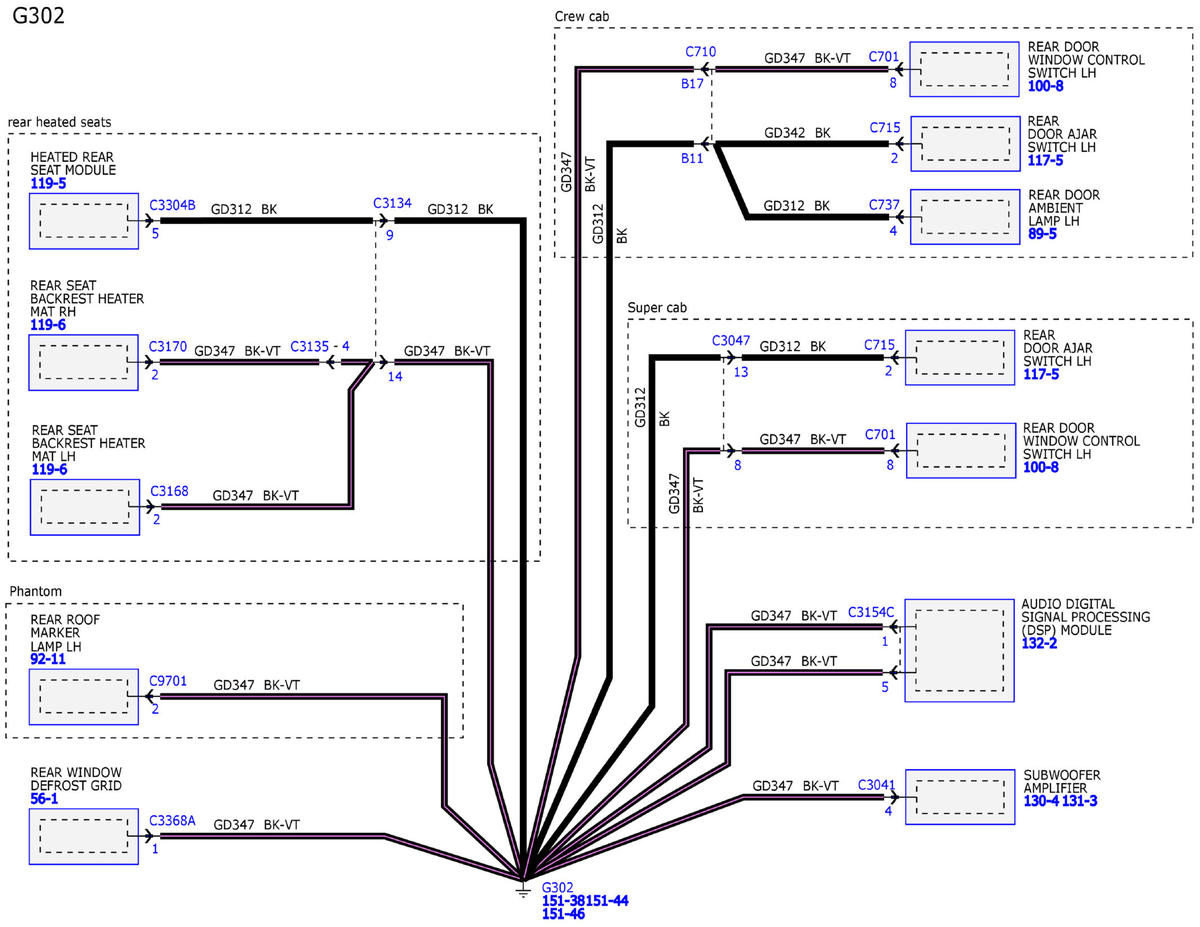

GFDW94422Courtesy of FORD MOTOR COMPANY

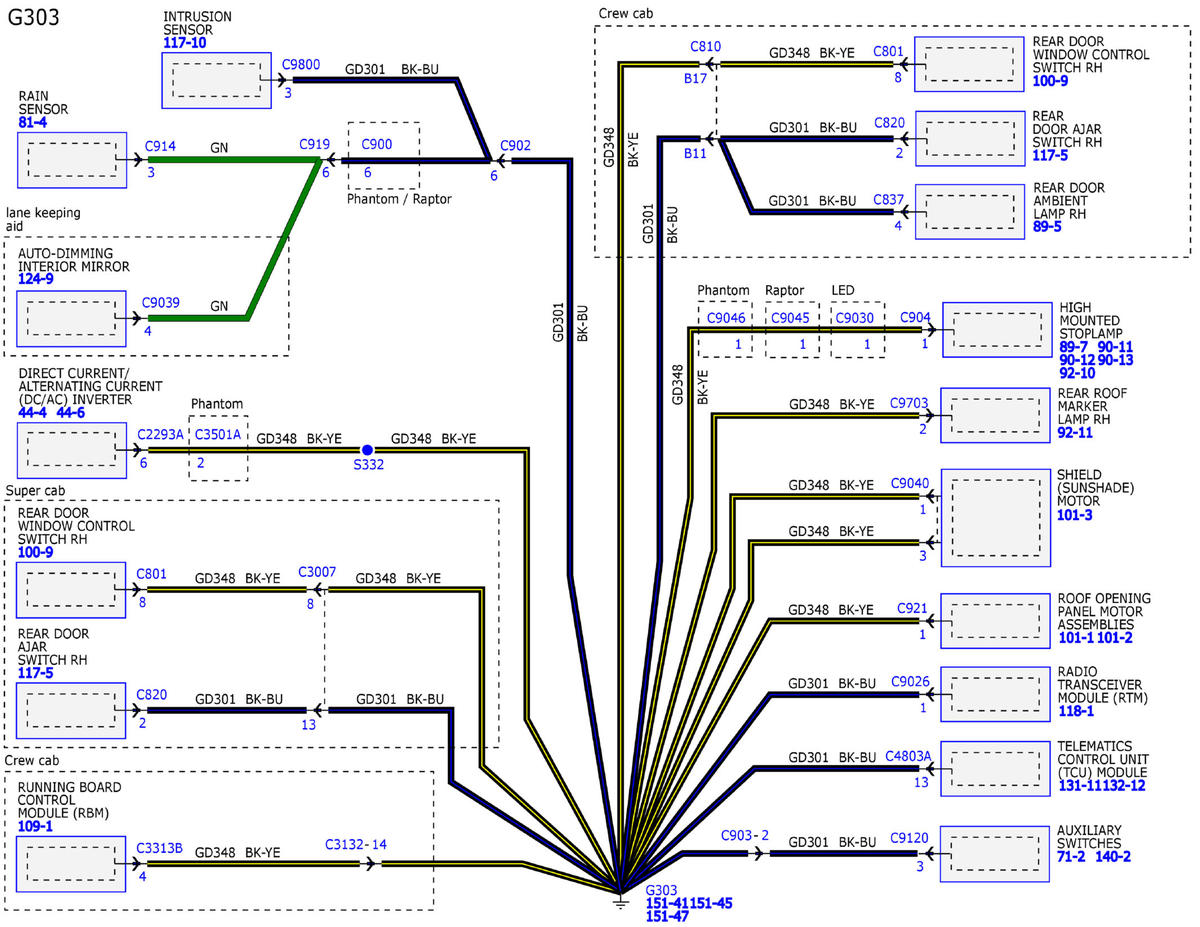

GFDW94423Courtesy of FORD MOTOR COMPANY

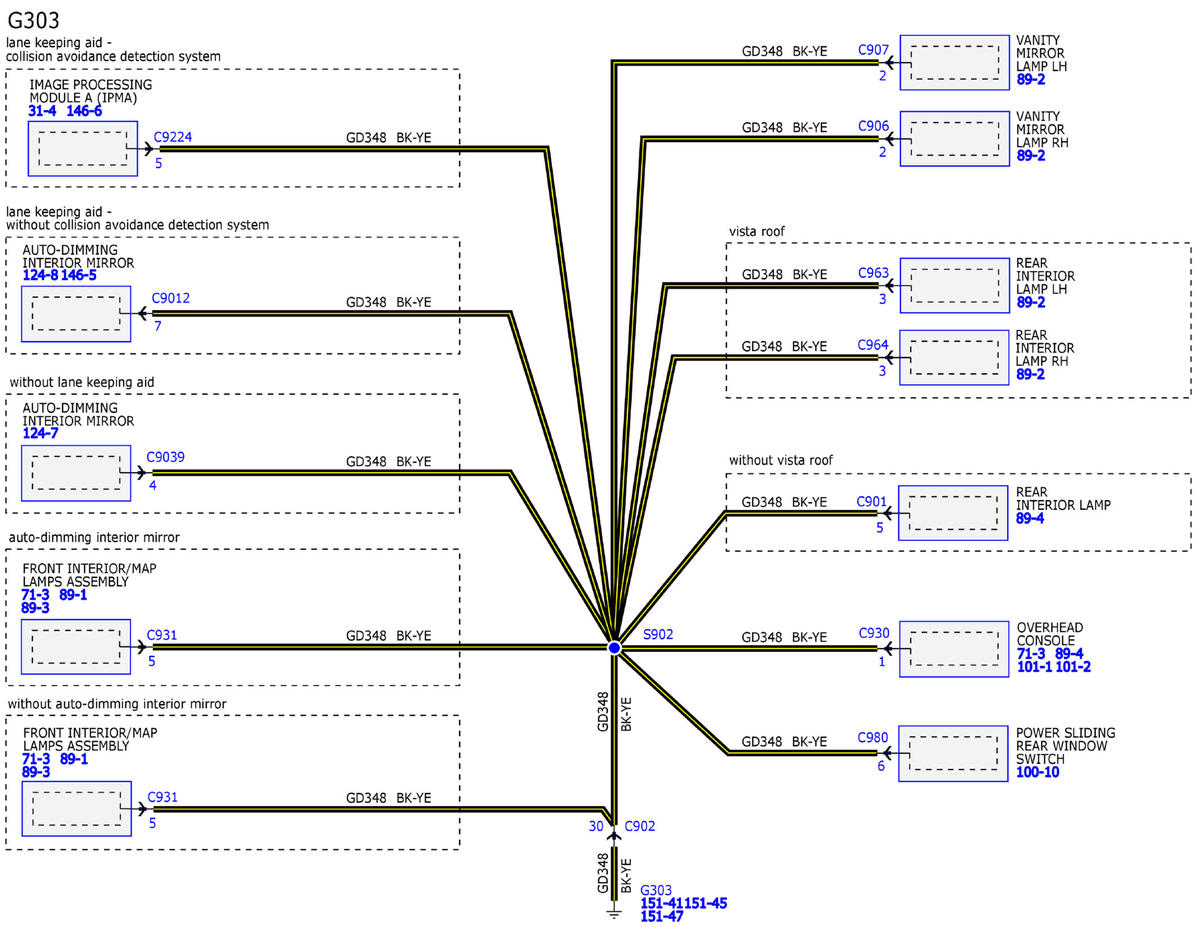

GFDW94424Courtesy of FORD MOTOR COMPANY

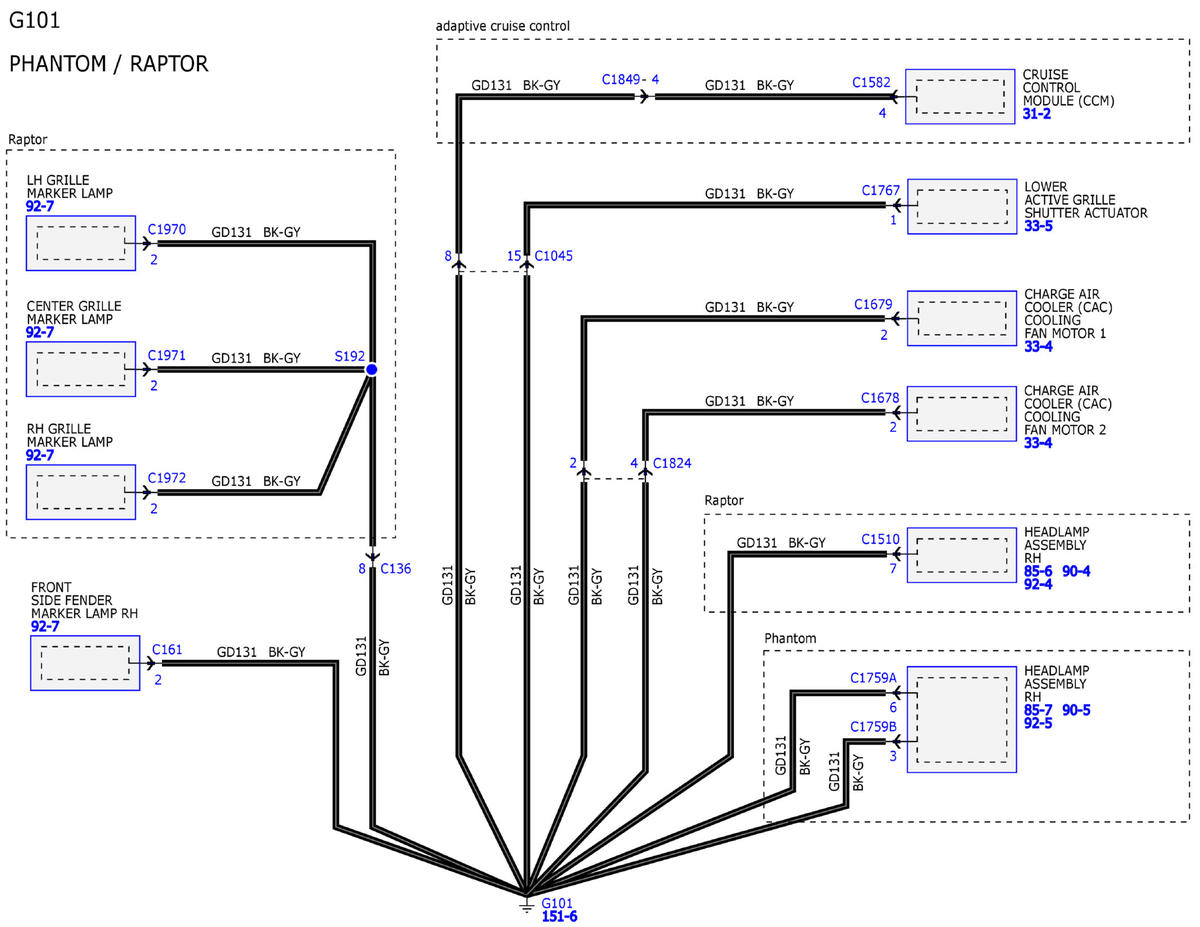

GFDW94425Courtesy of FORD MOTOR COMPANY

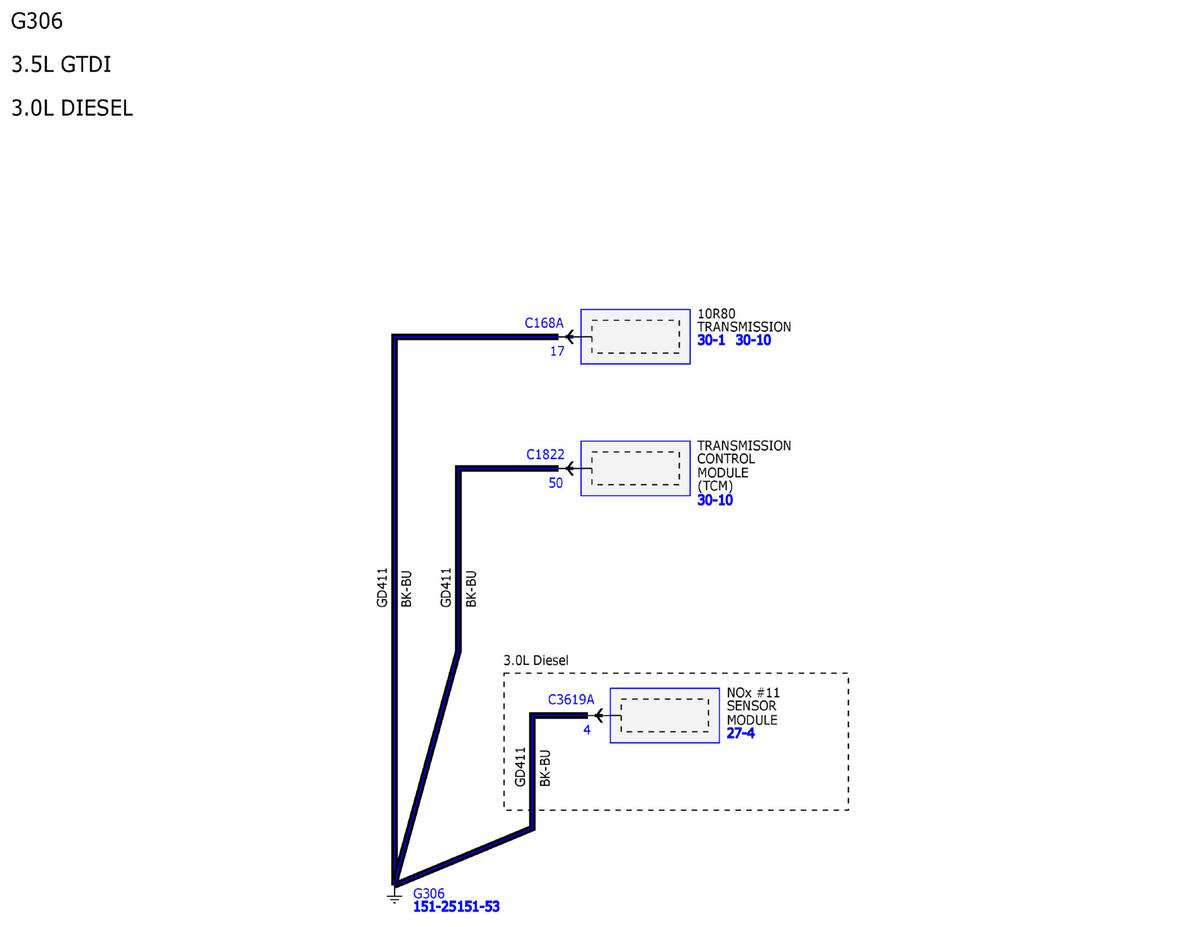

GFDW94426Courtesy of FORD MOTOR COMPANY

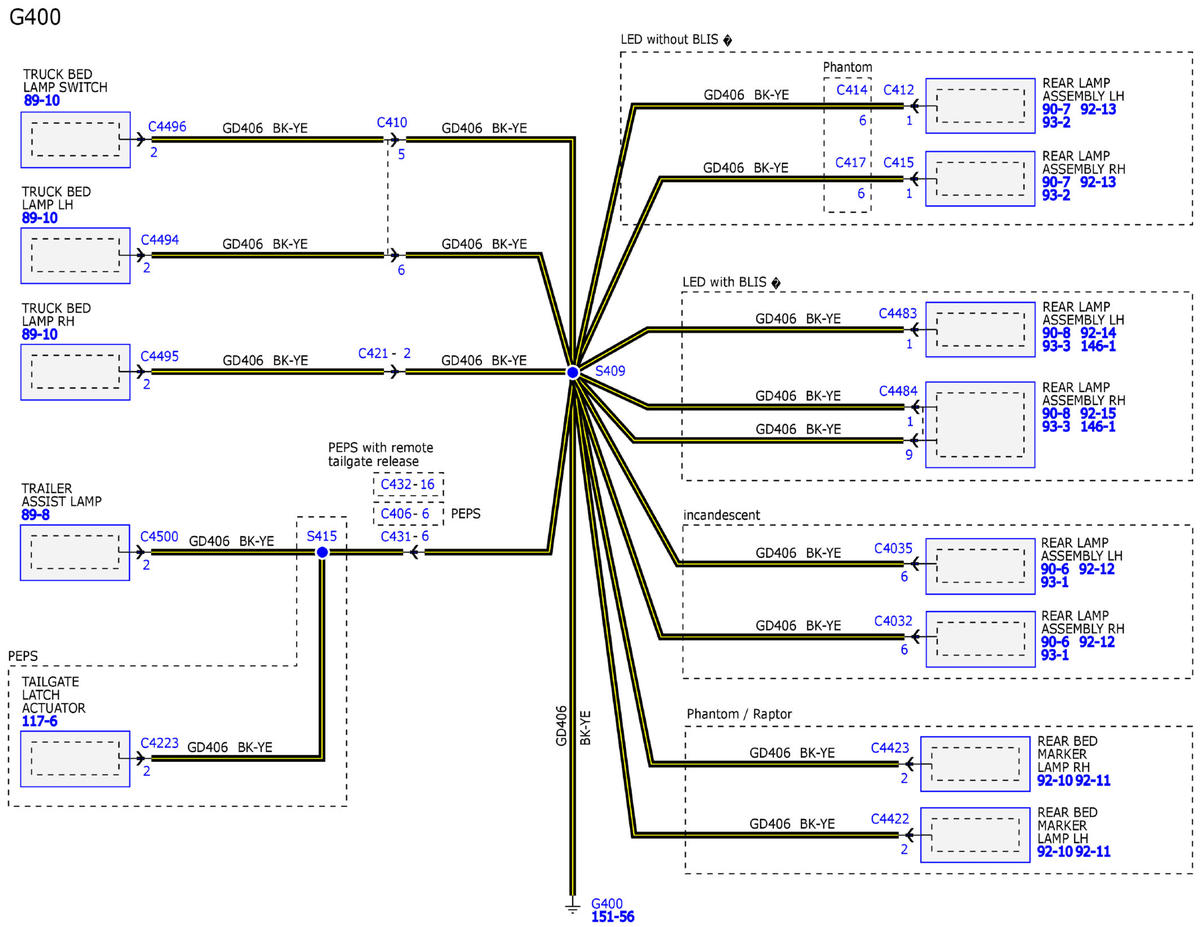

GFDW94427Courtesy of FORD MOTOR COMPANY

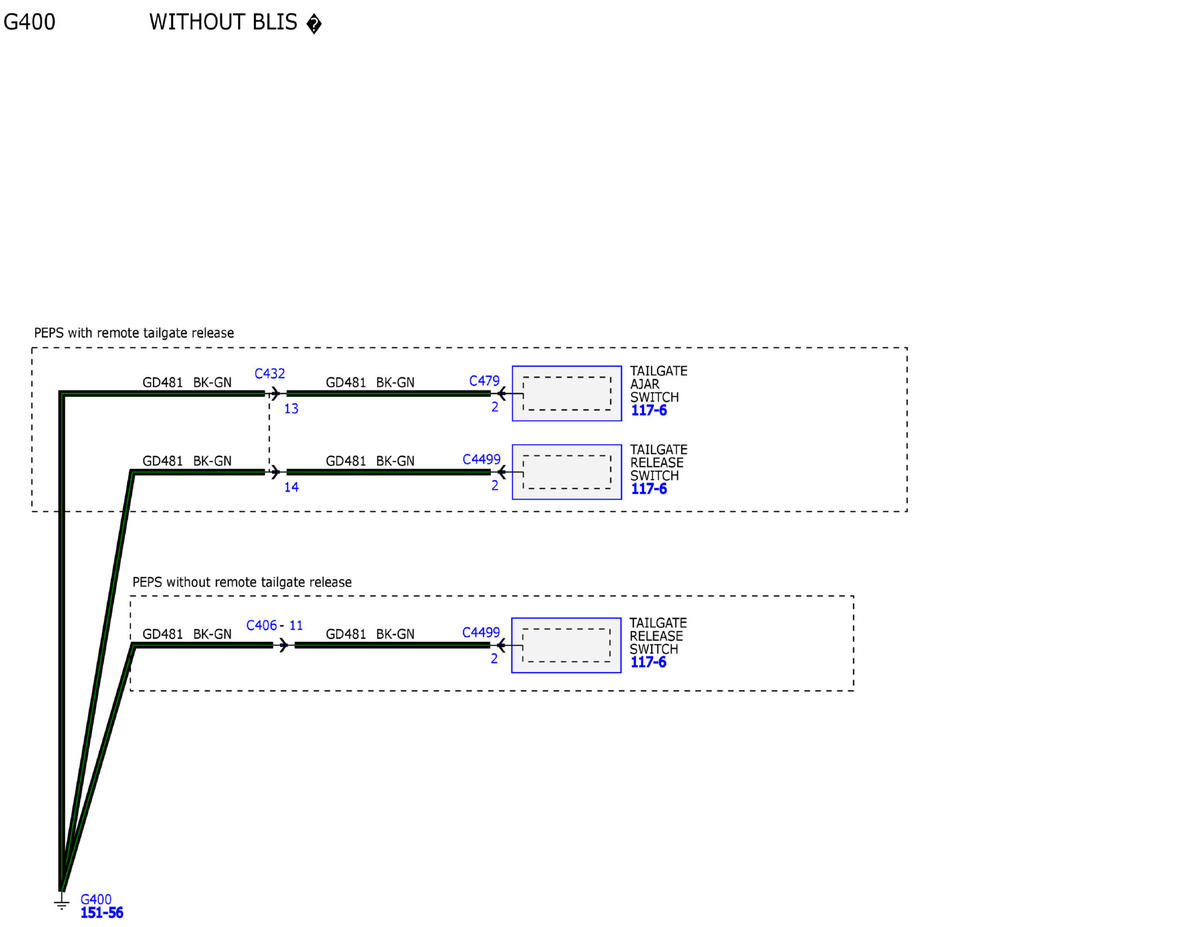

GFDW94428Courtesy of FORD MOTOR COMPANY

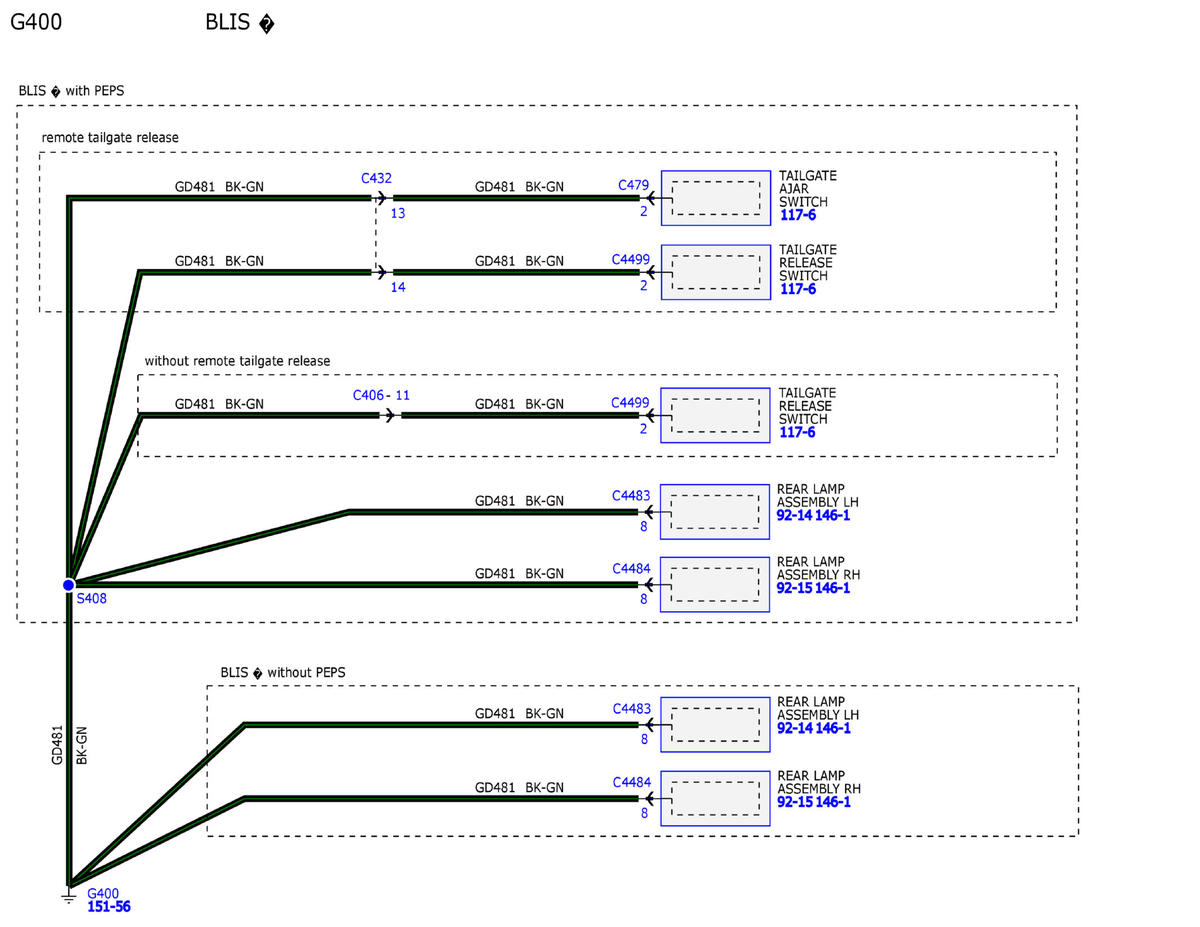

GFDW94429Courtesy of FORD MOTOR COMPANY

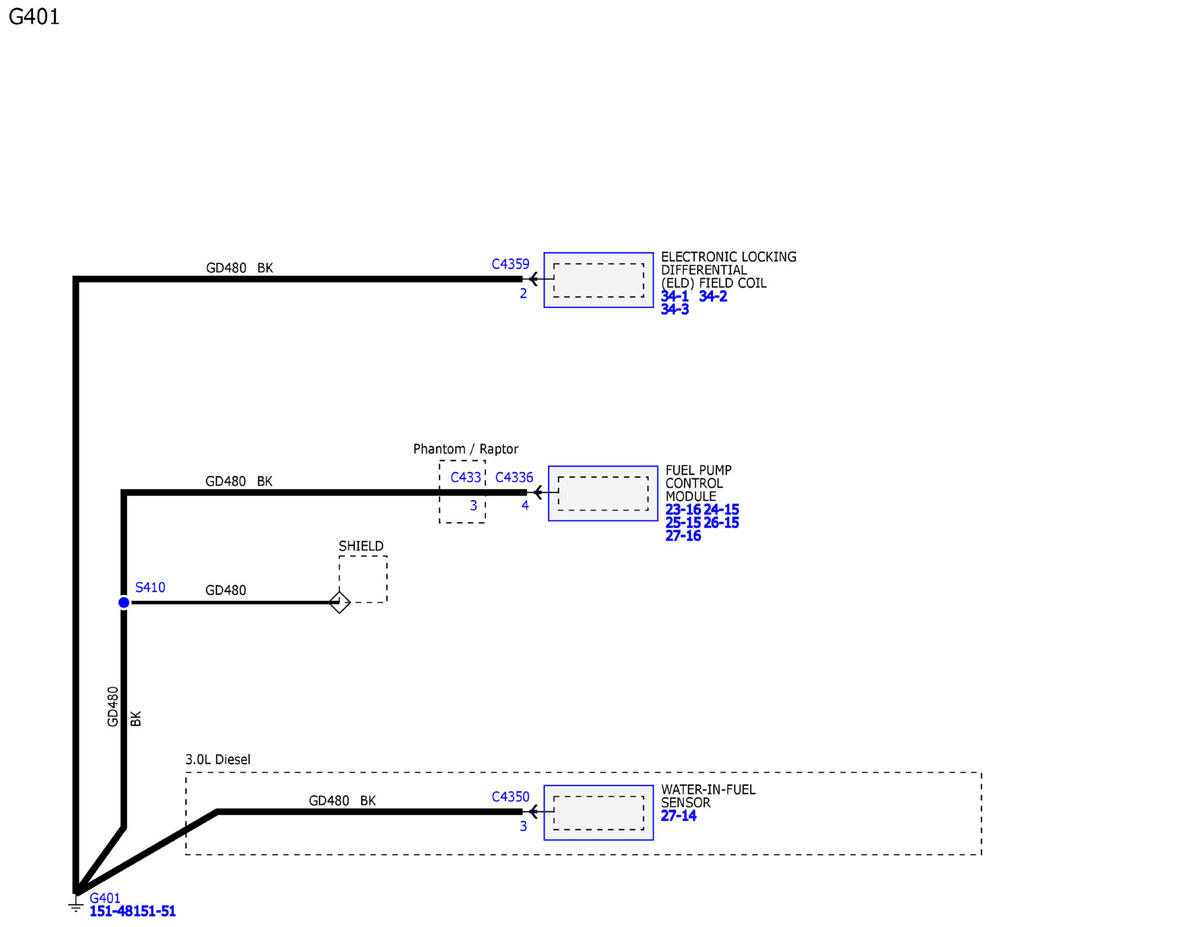

GFDW94430Courtesy of FORD MOTOR COMPANY

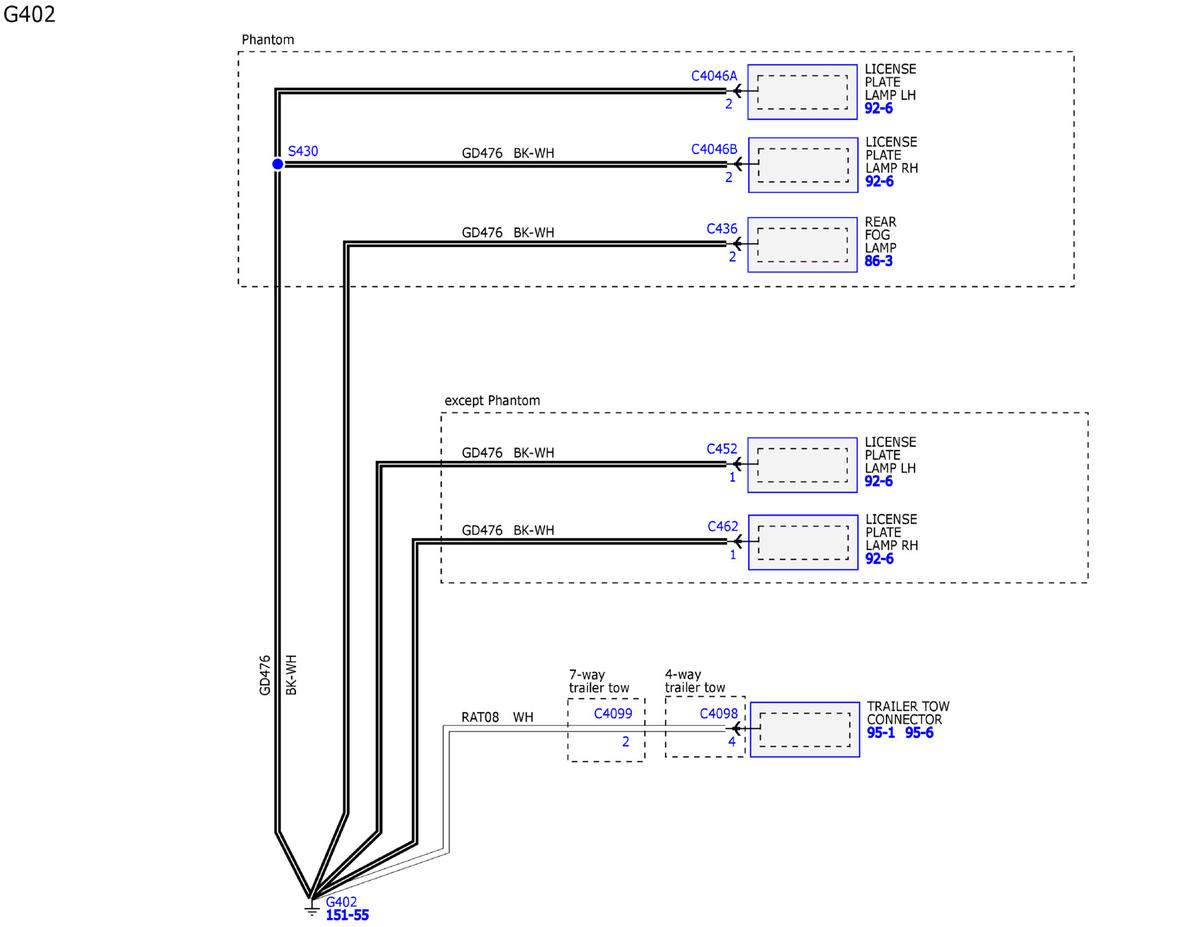

GFDW94431Courtesy of FORD MOTOR COMPANY

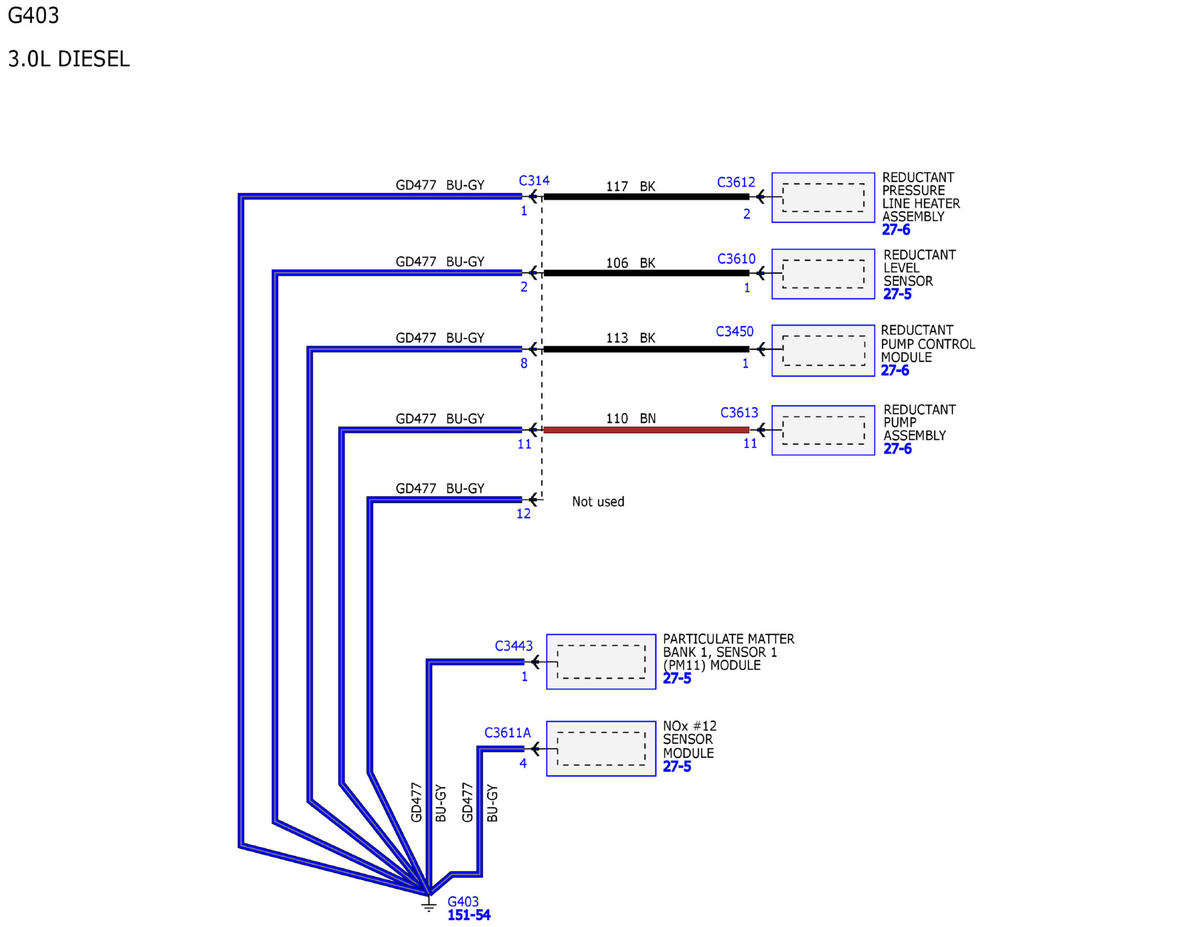

GFDW94432Courtesy of FORD MOTOR COMPANY

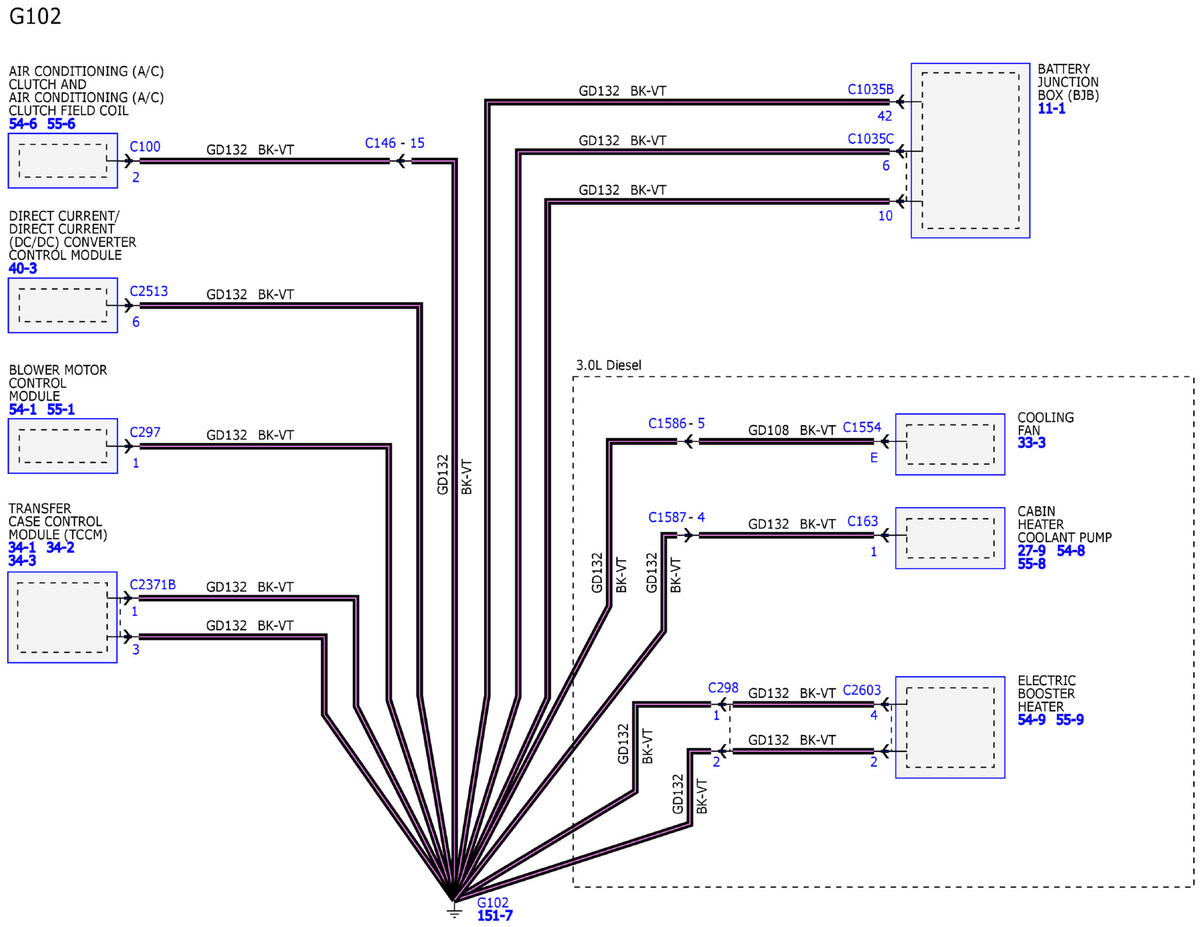

GFDW94433Courtesy of FORD MOTOR COMPANY

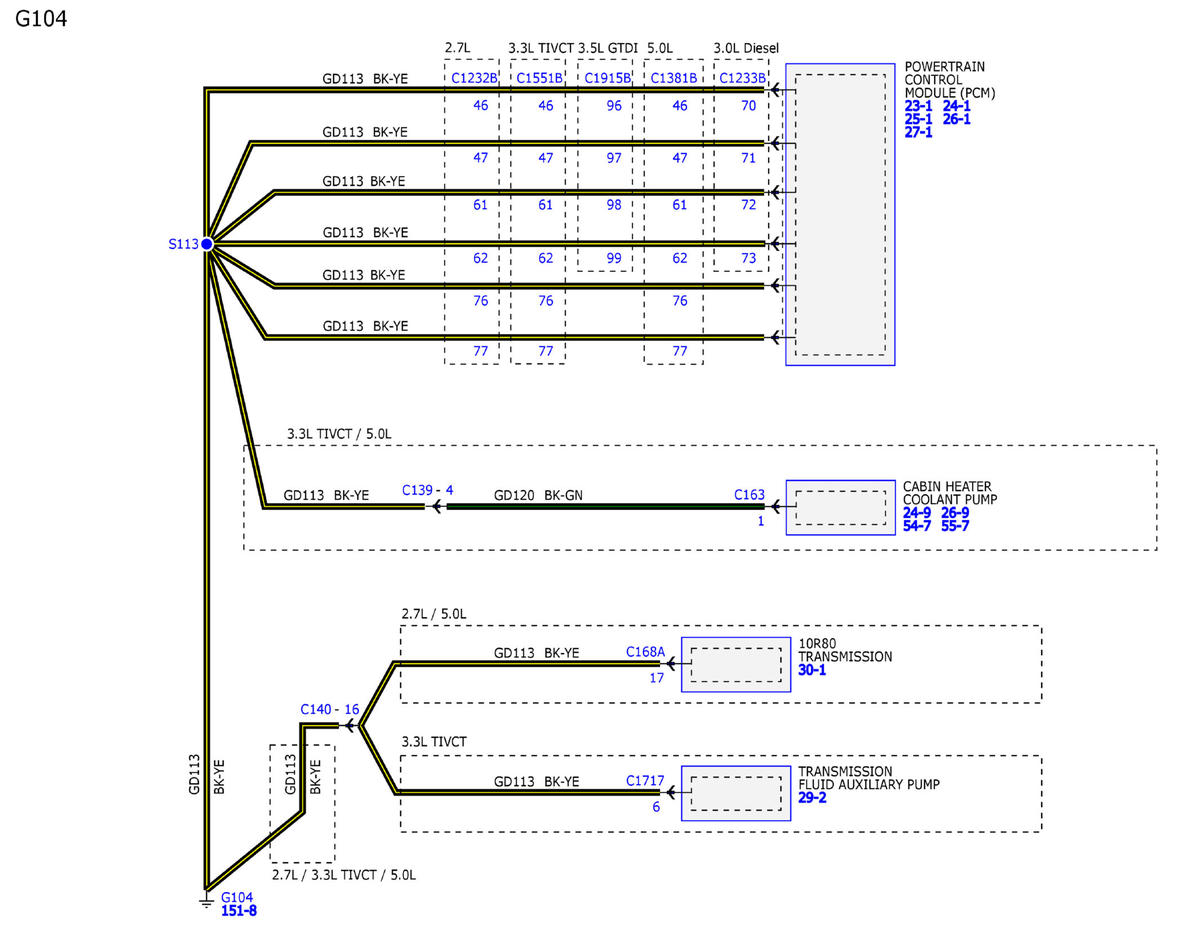

GFDW94434Courtesy of FORD MOTOR COMPANY

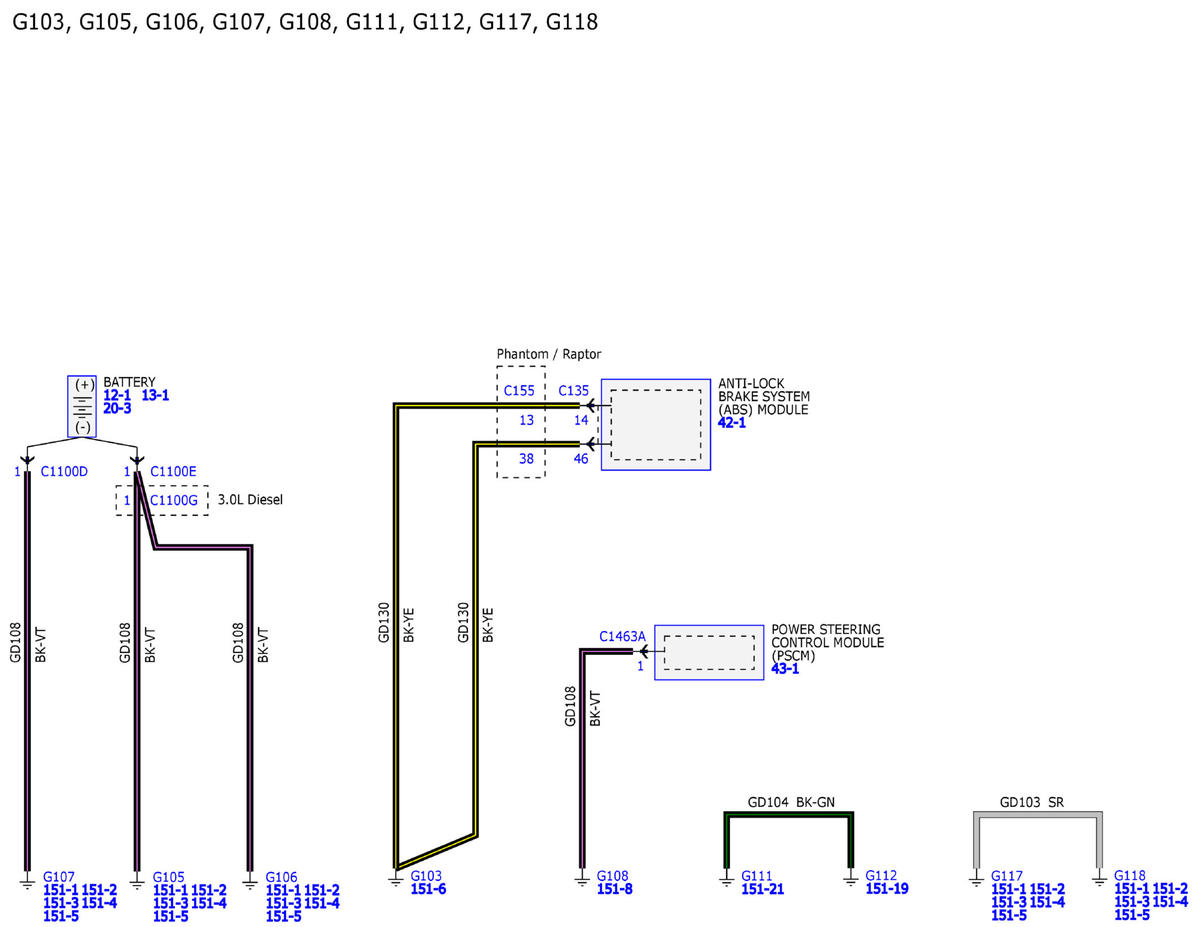

GFDW94435Courtesy of FORD MOTOR COMPANY

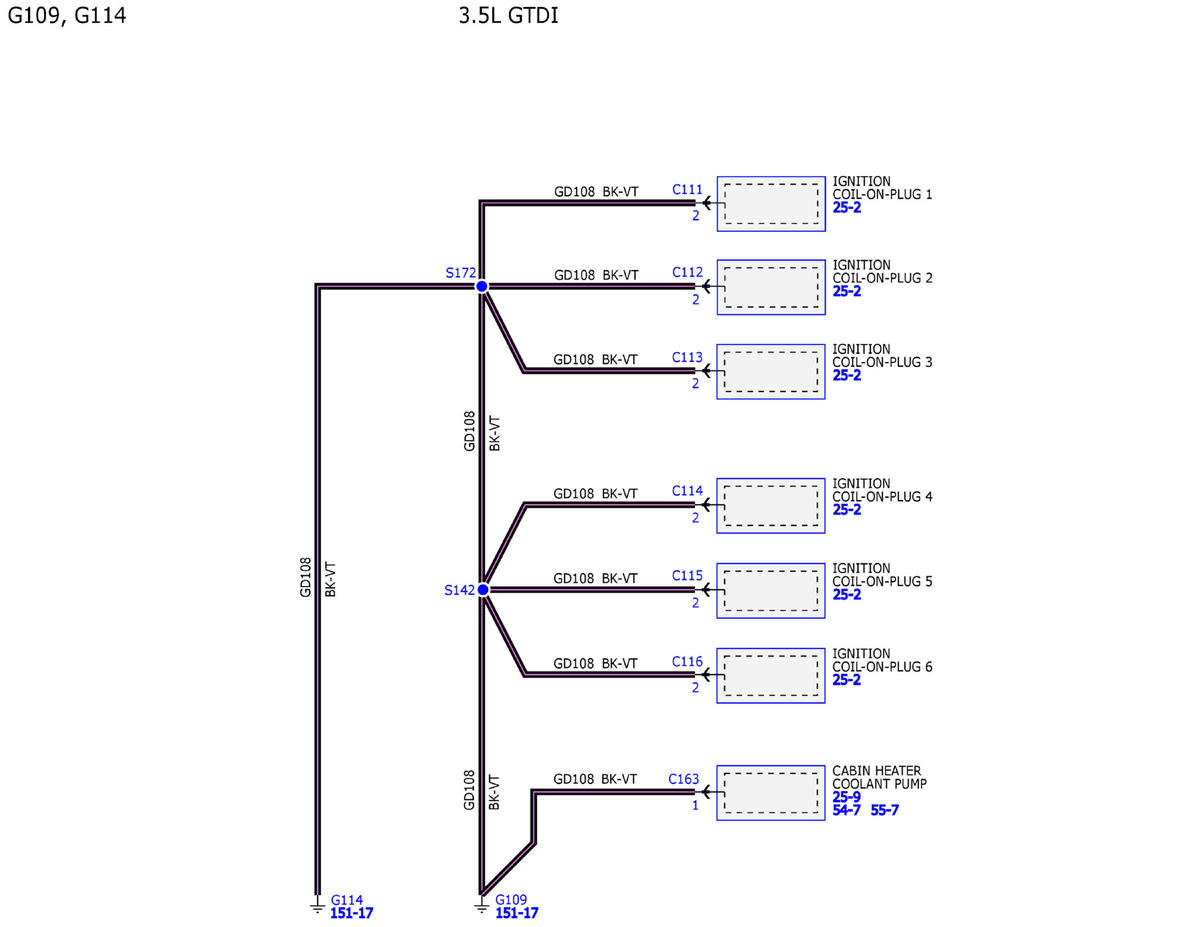

GFDW94436Courtesy of FORD MOTOR COMPANY

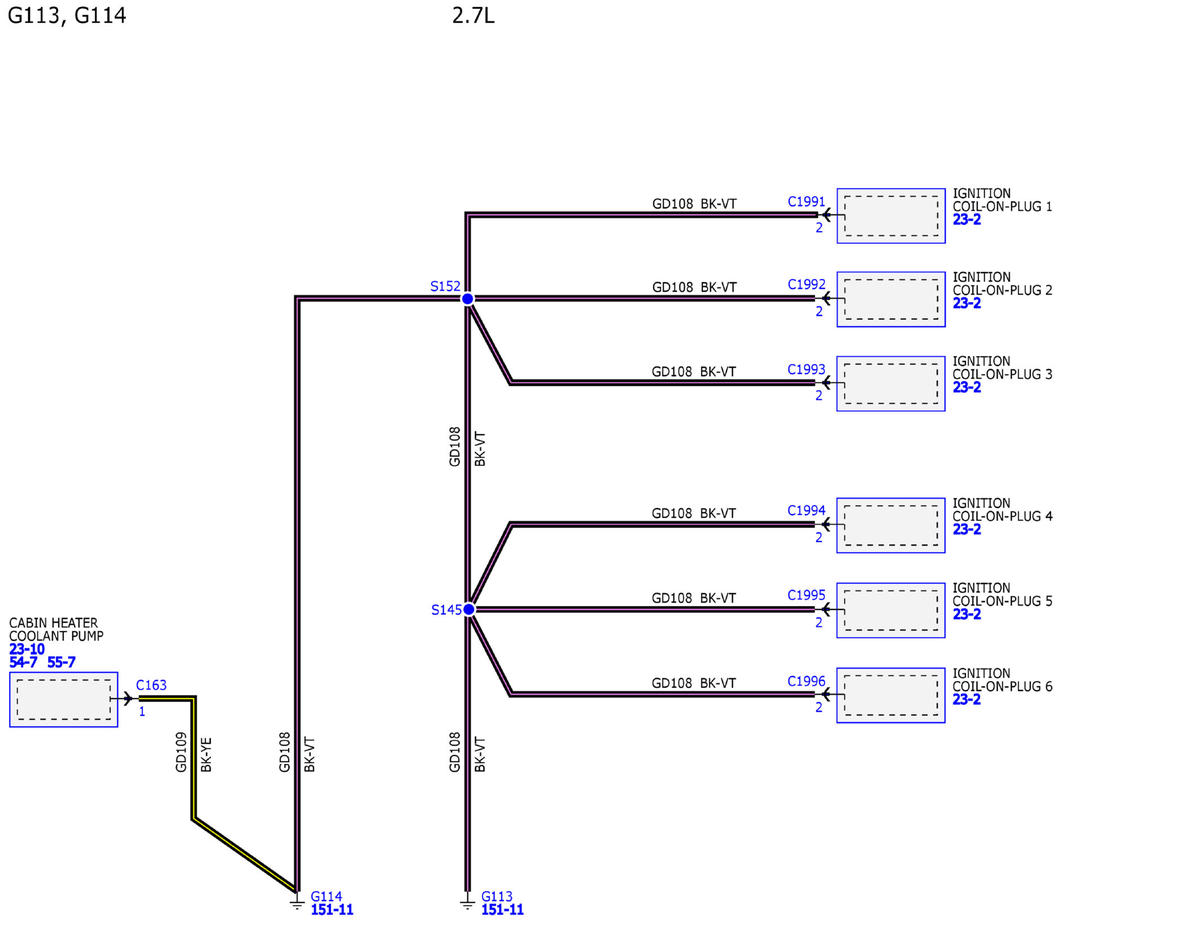

GFDW94437Courtesy of FORD MOTOR COMPANY

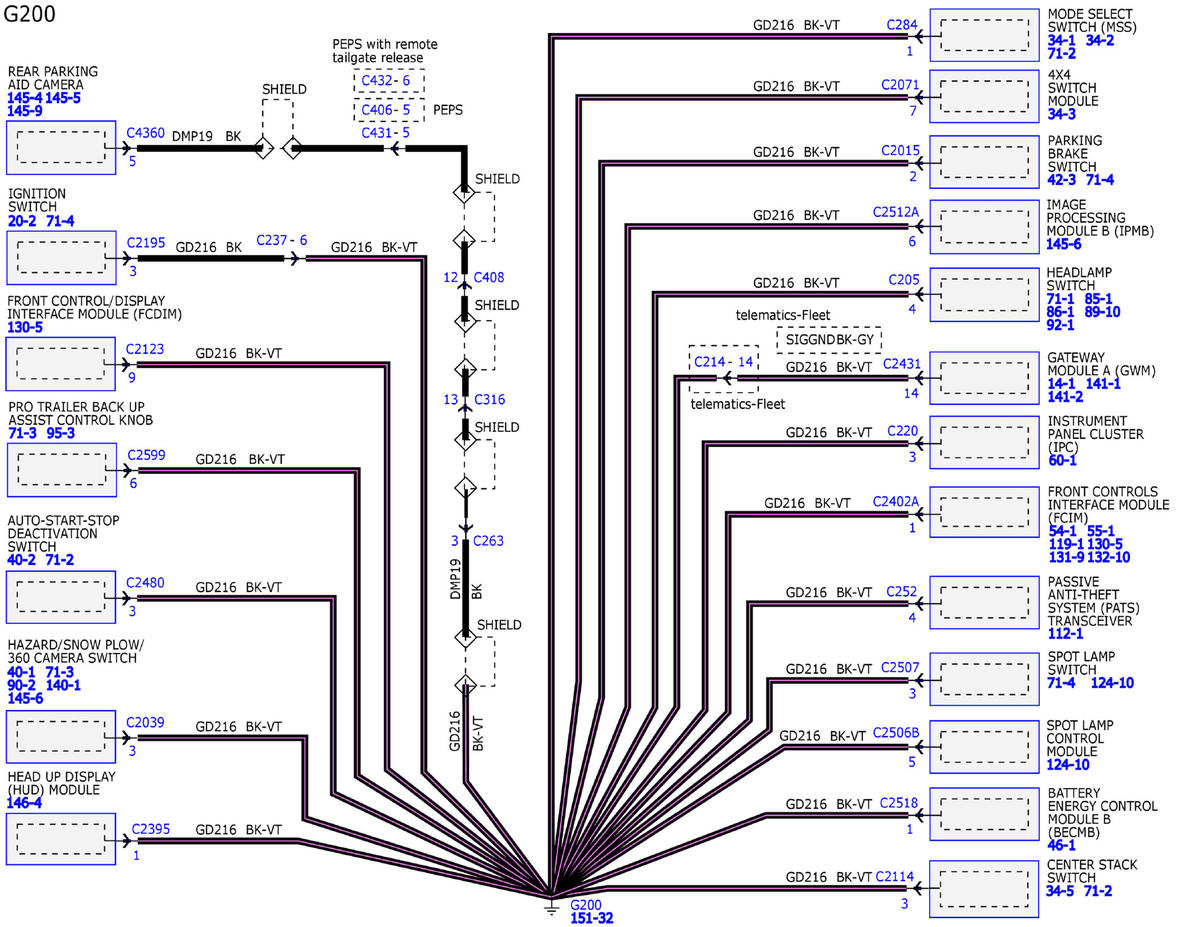

GFDW94438Courtesy of FORD MOTOR COMPANY

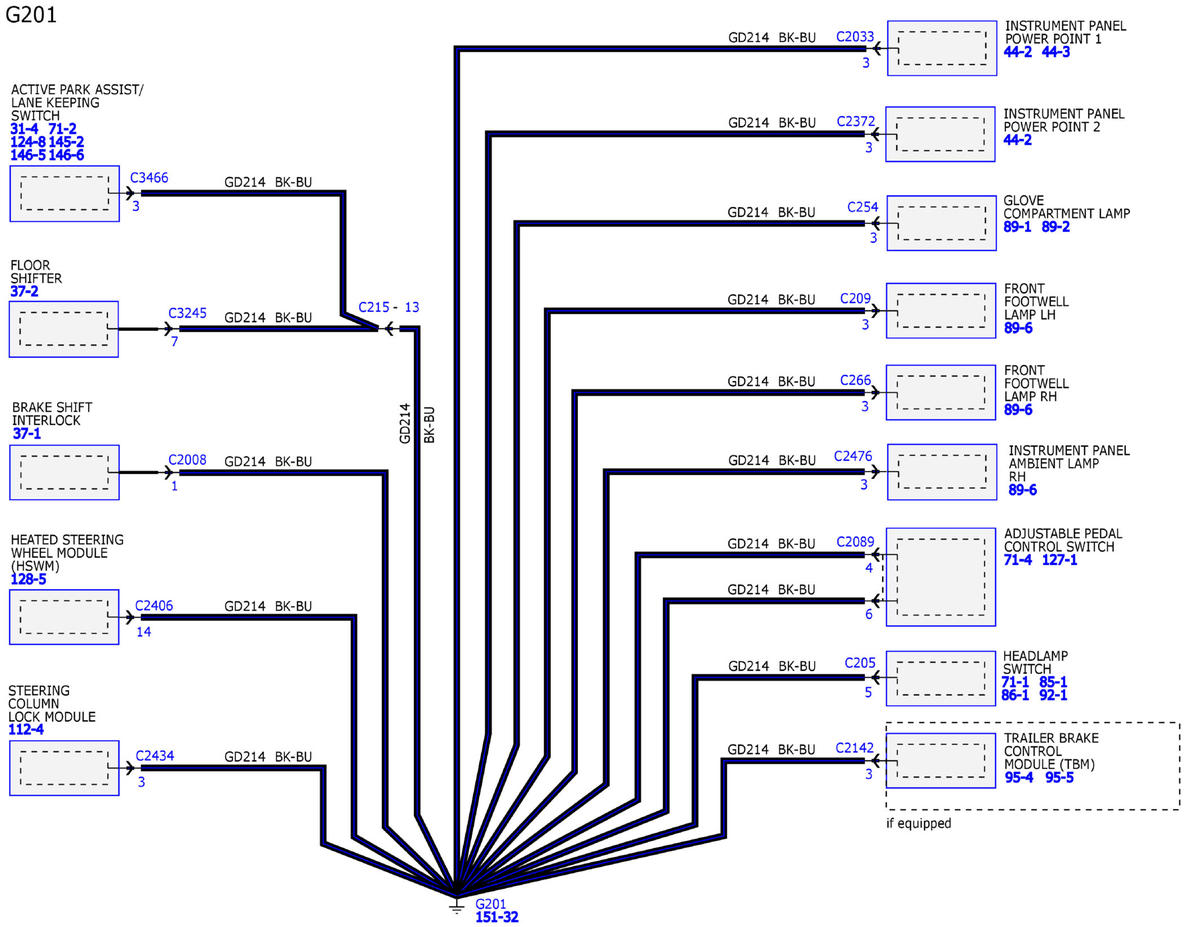

GFDW94439Courtesy of FORD MOTOR COMPANY
