Front Halfshaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: LH side shown, RH side similar.

Remove the halfshaft.Refer to: Halfshaft

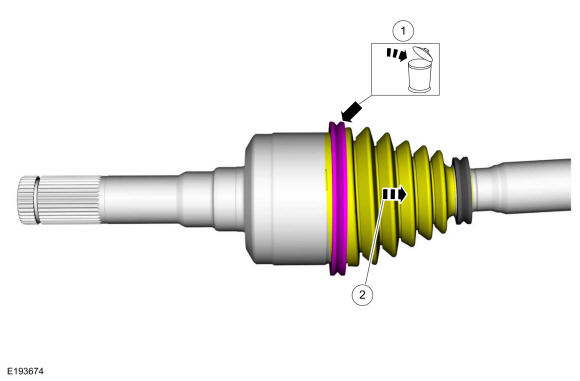

1. Remove and discard the large CV boot clamp.
2. Position the CV boot to access the inner CV housing retaining ring.
Courtesy of FORD MOTOR COMPANY

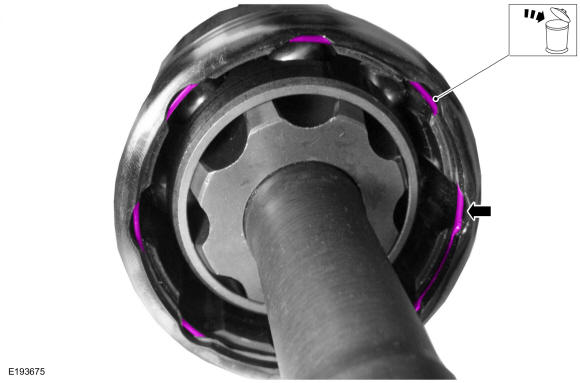

Remove and discard the inner CV housing retaining ring.

Courtesy of FORD MOTOR COMPANY

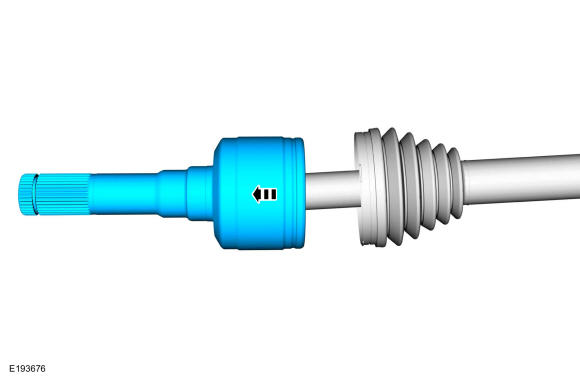

Remove the inner CV joint housing.

Courtesy of FORD MOTOR COMPANY
NOTE: The CV joint cage balls are free to fall out.

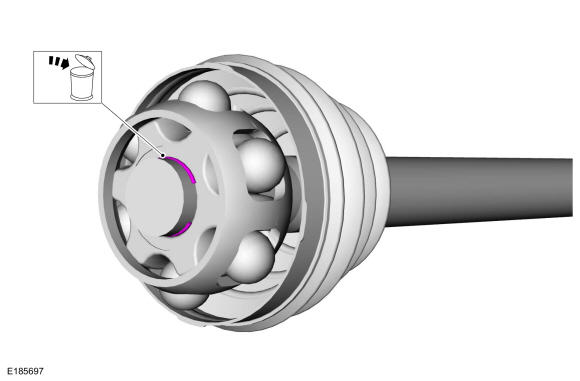

Remove and discard the CV joint cage circlip.

Courtesy of FORD MOTOR COMPANY
NOTE: The CV joint cage balls are free to fall out.

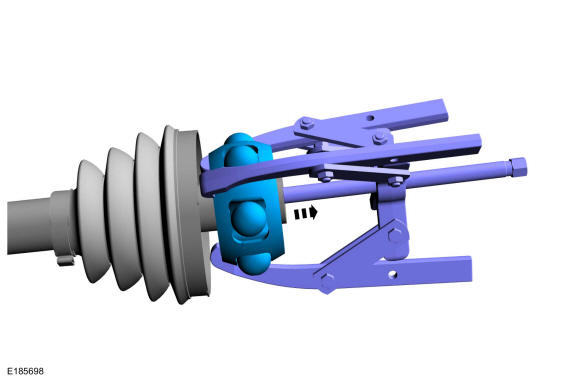

Using general equipment, remove the CV joint cage.Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

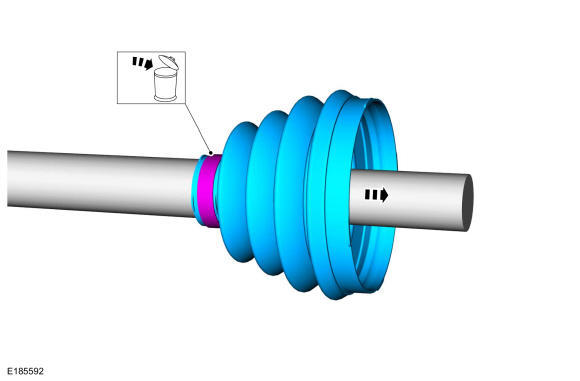

Remove and discard the small clamp and remove the CV joint boot.

Courtesy of FORD MOTOR COMPANY

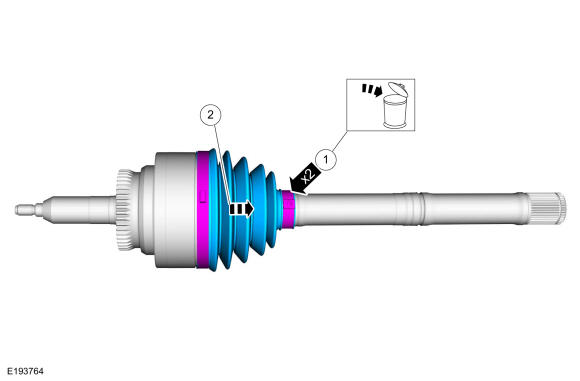

1. Remove and discard the CV joint boot clamps.
2. Remove the CV joint boot.

Courtesy of FORD MOTOR COMPANY
