Home >> Ford >> 2018 >> F-150 Limited, RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System (Abs) And Stability Control >> Removal And Installation >> Wheel Speed Sensor Ring >> Removal

Wheel Speed Sensor Ring: Removal

  1. Remove the axle shaft. Refer to: Axle Shaft . Refer to: Axle Shaft .

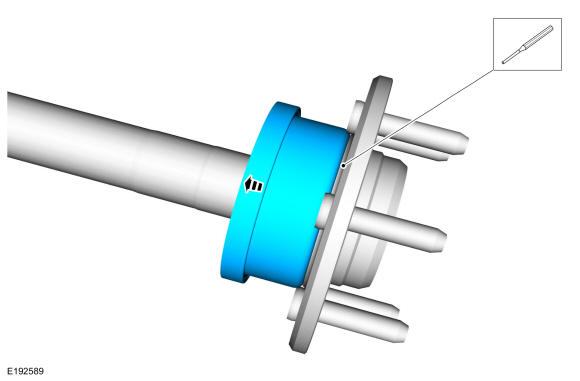

  2. Using a suitable driver, remove the wheel speed sensor ring. Use the General Equipment: Punch
GFD240794Courtesy of FORD MOTOR COMPANY
