Image Processing Module A (IPMA): Removal

  1. If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

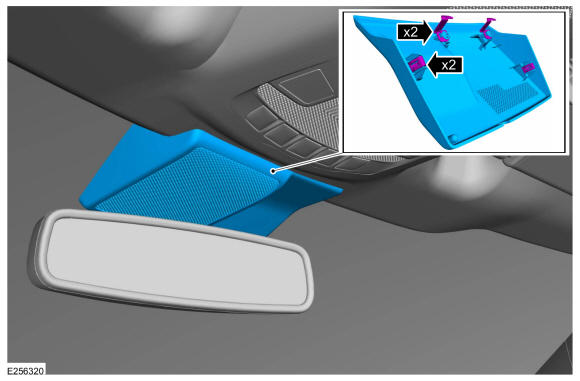

  2. Remove the clips and the IPMA cover.
    GFD247791Courtesy of FORD MOTOR COMPANY

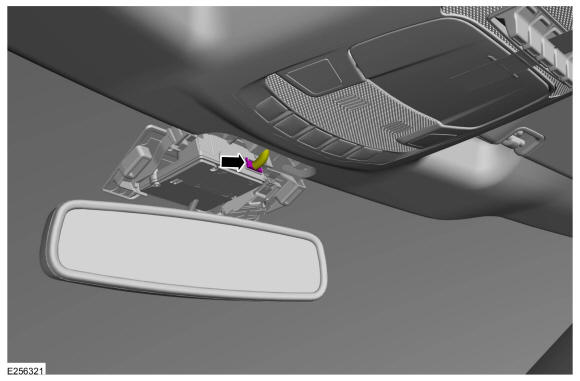

  3. Disconnect the electrical connector.
    GFD247792Courtesy of FORD MOTOR COMPANY

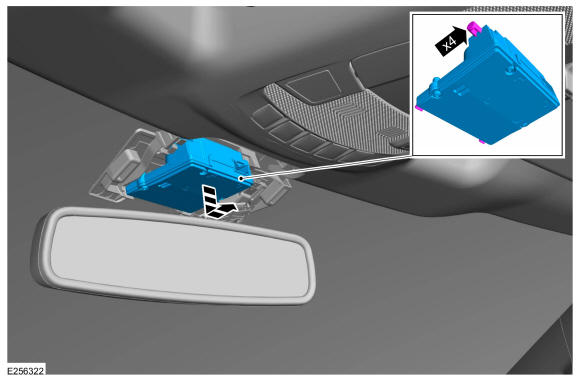

  4. Release the tabs, remove the IPMA.
GFD247793Courtesy of FORD MOTOR COMPANY
