Brake Shift Interlock Actuator: Installation

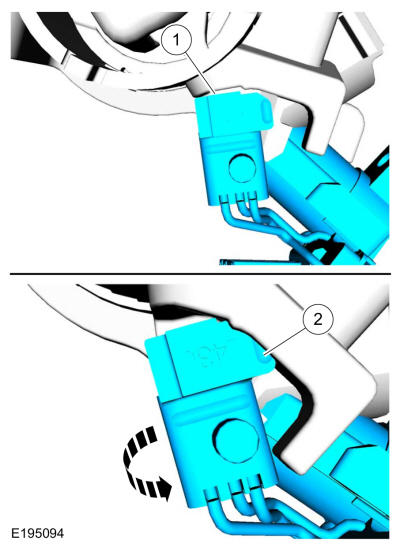

Install the park position switch.
1. Place the large plunger on the park position switch in the locating hole and position the switch as shown in illustration.
2. Rotate the park position switch counterclockwise making sure the tab locks under the housing lip.
Courtesy of FORD MOTOR COMPANY

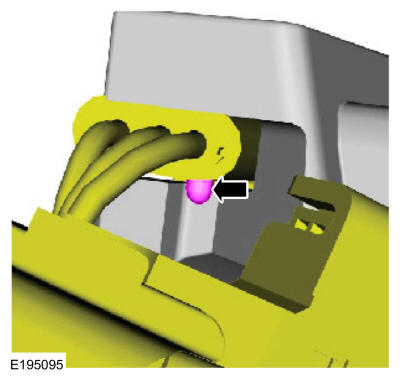

Verify the park position switch spring loaded pin is fully extended.

Courtesy of FORD MOTOR COMPANY

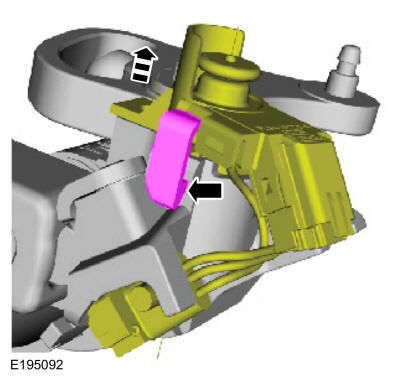

Install the brake shift interlock actuator in the selector lever mechanism.

Courtesy of FORD MOTOR COMPANY

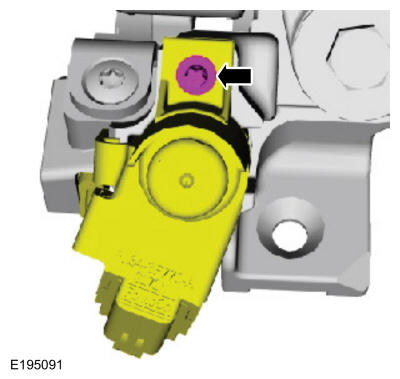

Install the brake shift interlock actuator screw.
Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
Install the selector lever mechanism. Refer to: Selector Lever Mechanism .
