Valve Stem Diameter
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Check
NOTE:
Refer to Specifications
for the specification.

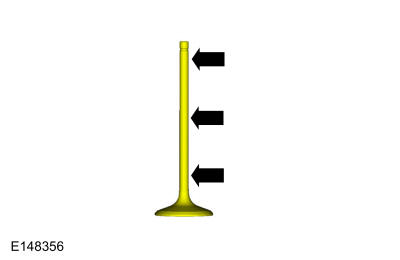

- Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
