OEM Electrical Wiring Diagram Introduction: Introduction

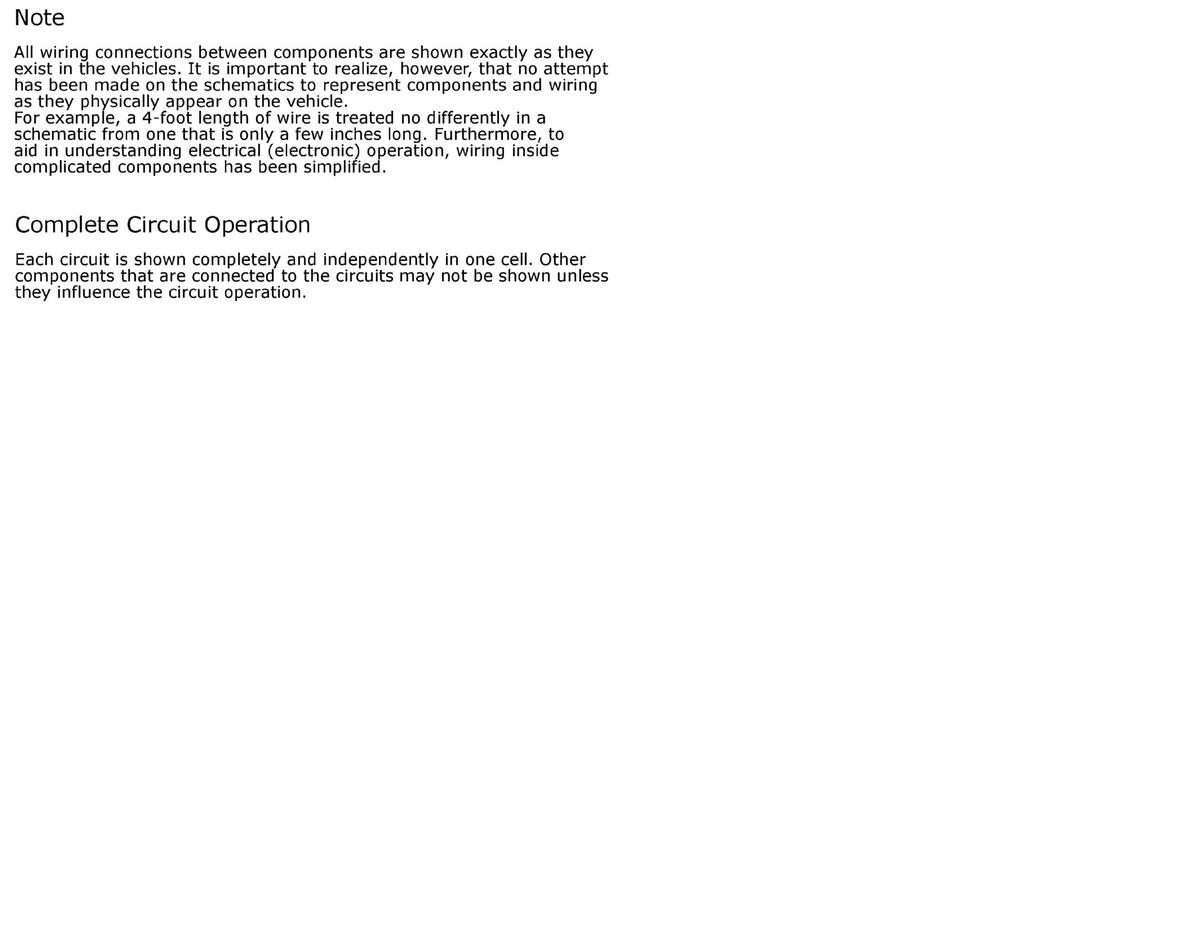

GFDW97261Courtesy of FORD MOTOR COMPANY

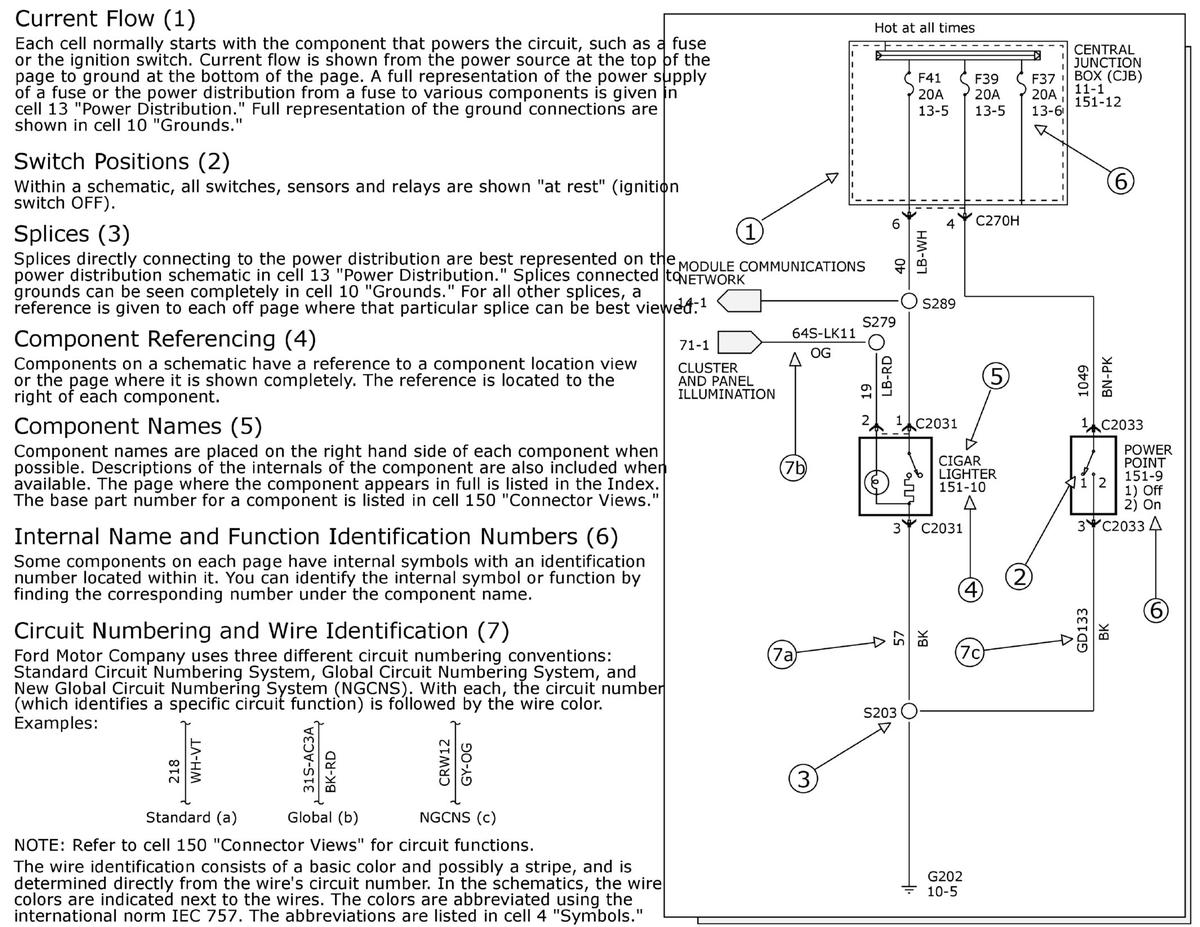

GFDW97262Courtesy of FORD MOTOR COMPANY

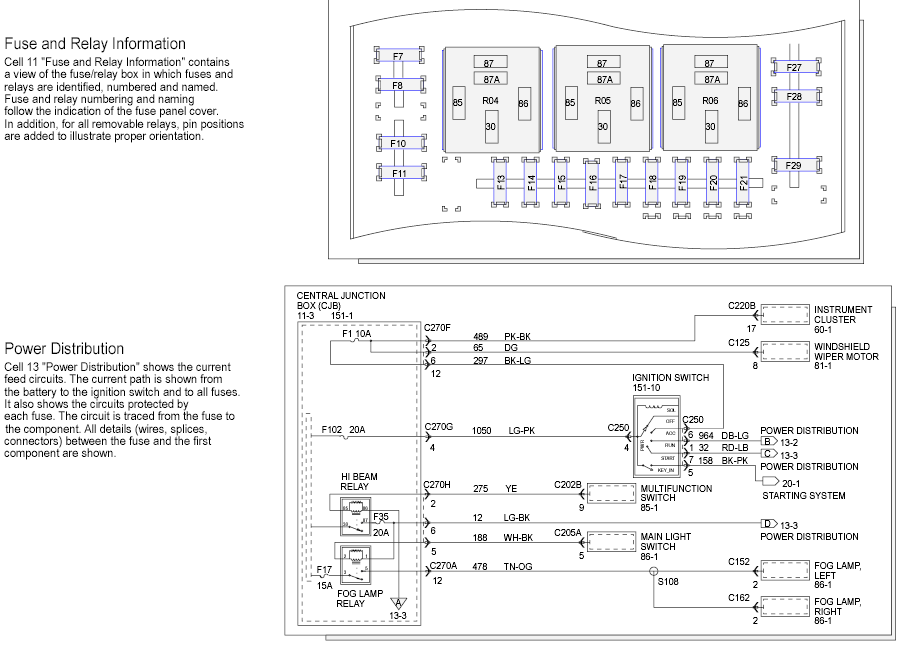

GFDW97263Courtesy of FORD MOTOR COMPANY

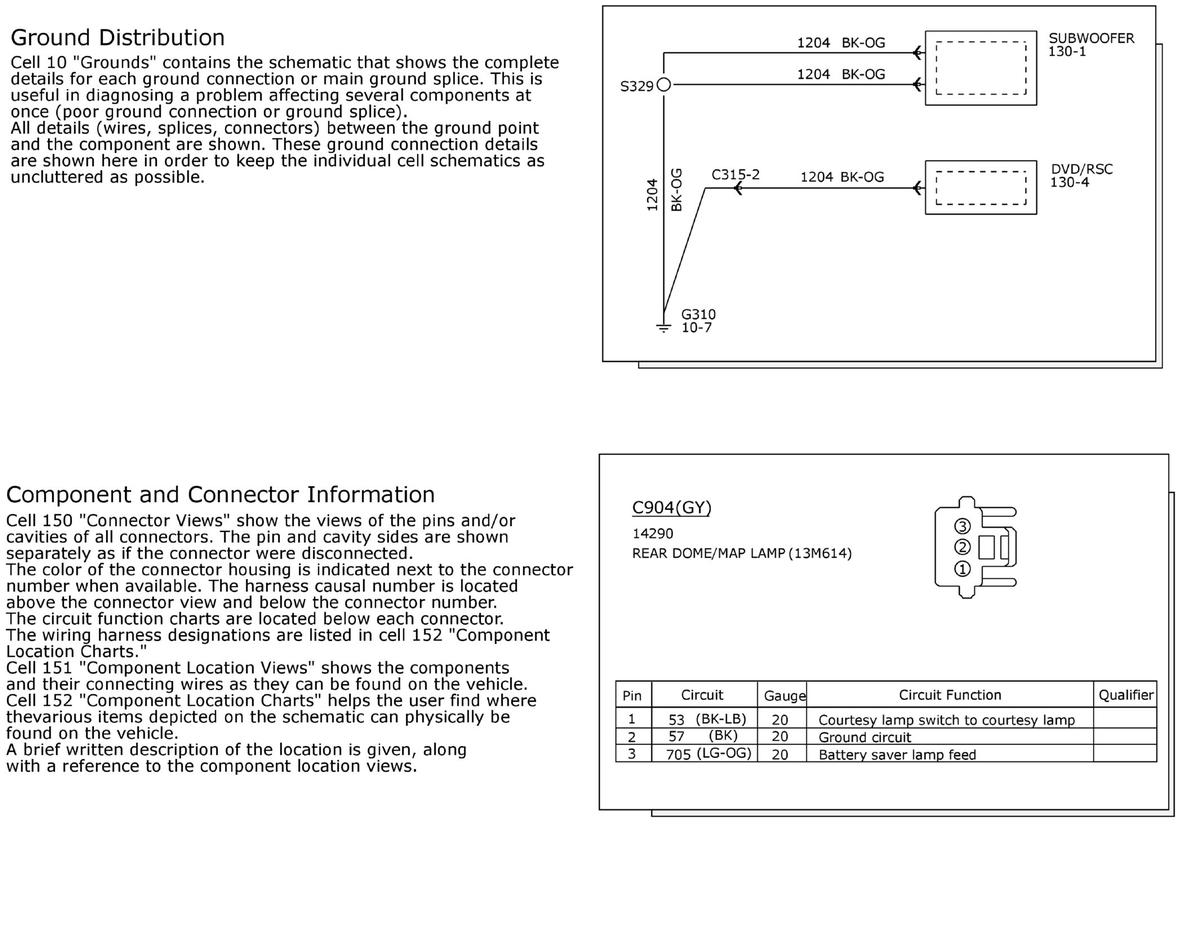

GFDW97264Courtesy of FORD MOTOR COMPANY

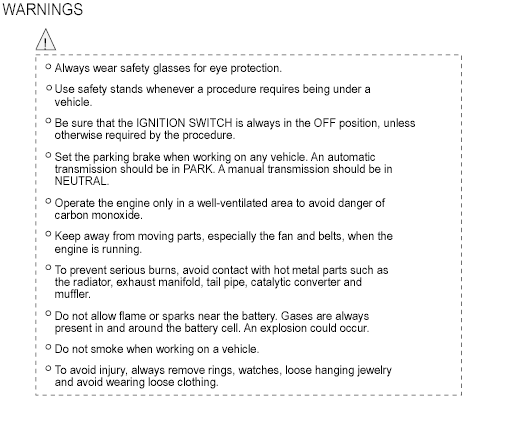

GFDW97265Courtesy of FORD MOTOR COMPANY
