Center Registers: Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

Upper

  1. Remove the instrument panel center middle trim panel. Refer to: Instrument Panel Center Middle Trim Panel .

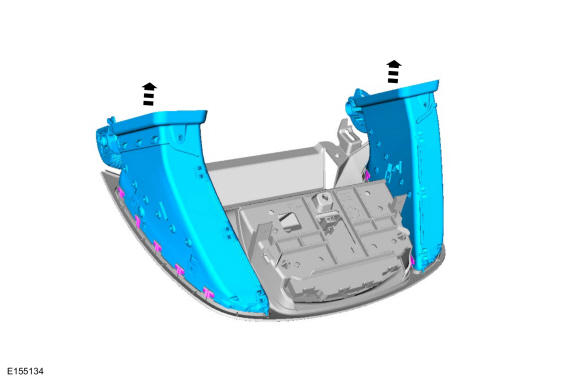

  2. Release the tabs and remove the center registers.
    GFD184658Courtesy of FORD MOTOR COMPANY

    Lower

  3. Detach the clips, disconnect the electrical connector and remove the LH instrument panel lower finish panel.
    GFD182386Courtesy of FORD MOTOR COMPANY
  4. Detach the clips and remove the RH instrument panel lower finish panel.
    GFD182387Courtesy of FORD MOTOR COMPANY
  5. Open the floor console stowage bin lid.
    GFD182385Courtesy of FORD MOTOR COMPANY
  6. Detach the retainers and remove the floor console upper trim panel.
    GFD182388Courtesy of FORD MOTOR COMPANY

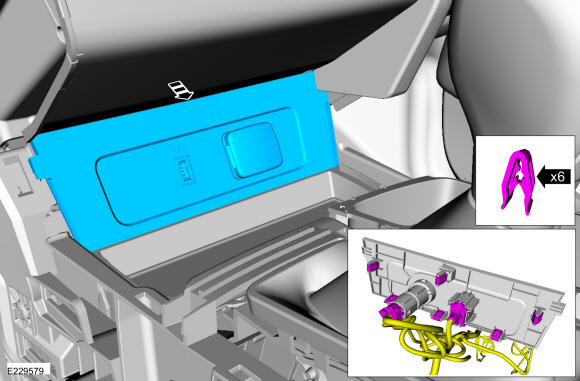

  7. Release the clips and remove the floor console front finish panel.

    • Disconnect the electrical connectors.

    GFD184659Courtesy of FORD MOTOR COMPANY
  8. Remove the retainers and the HVAC control module finish panel.
    GFD184660Courtesy of FORD MOTOR COMPANY
  9. Disconnect the electrical connectors.
    GFD184661Courtesy of FORD MOTOR COMPANY
  10. Release the tabs and remove the center registers. Use the General Equipment: Interior Trim Remover
GFD184662Courtesy of FORD MOTOR COMPANY
