Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

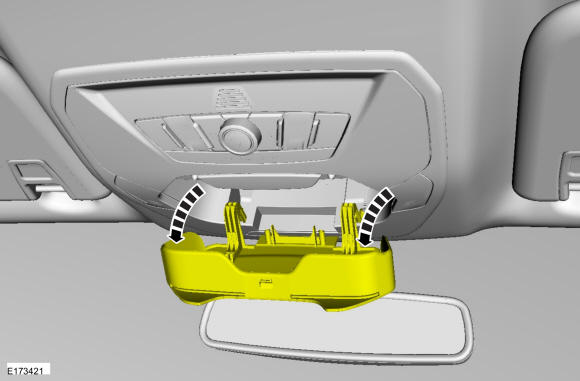

Open the sunglass bin.

Courtesy of FORD MOTOR COMPANY
NOTE: Sunglass bin shown in illustration removed for clarity.

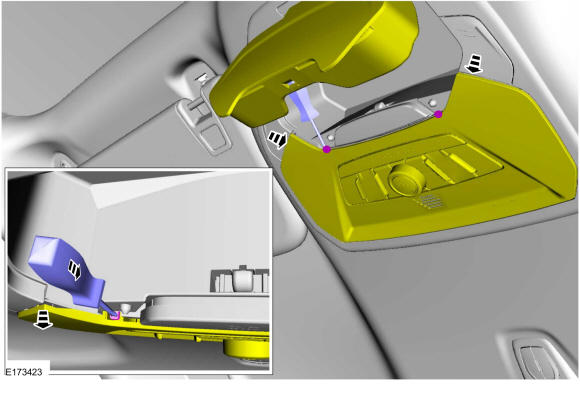

Using a suitable tool pry both corners of the switch bezel down.

Courtesy of FORD MOTOR COMPANY

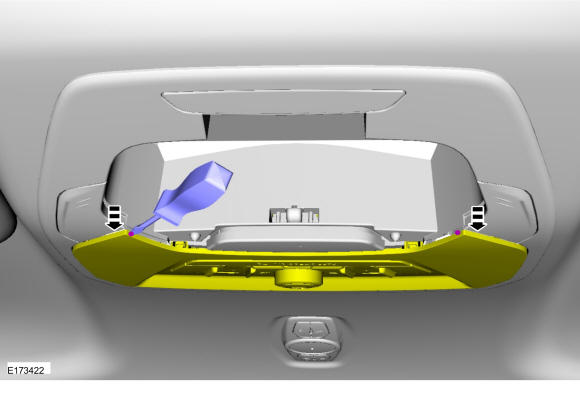

Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.

Courtesy of FORD MOTOR COMPANY
NOTE: High level overhead console shown in illustration.

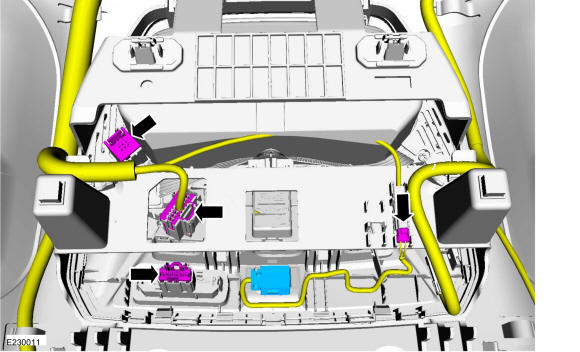

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

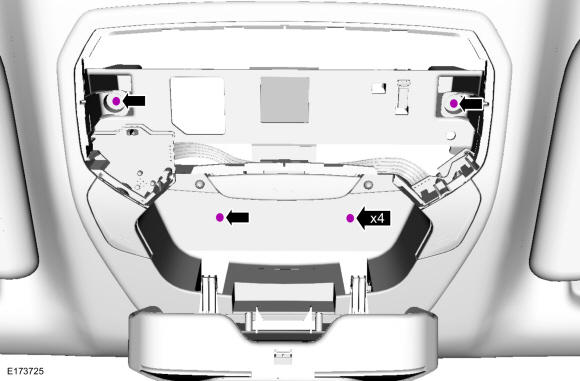

If equipped, remove the 4 torx screws.

Courtesy of FORD MOTOR COMPANY

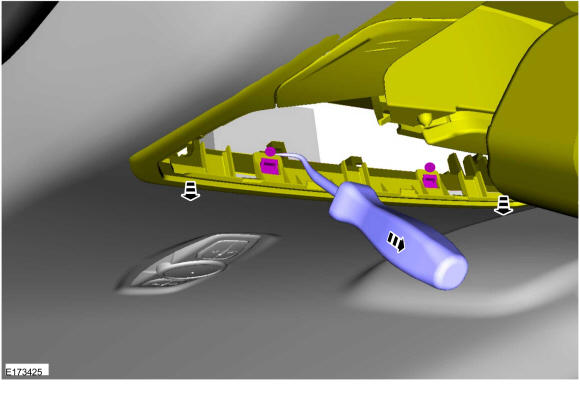

Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

Courtesy of FORD MOTOR COMPANY

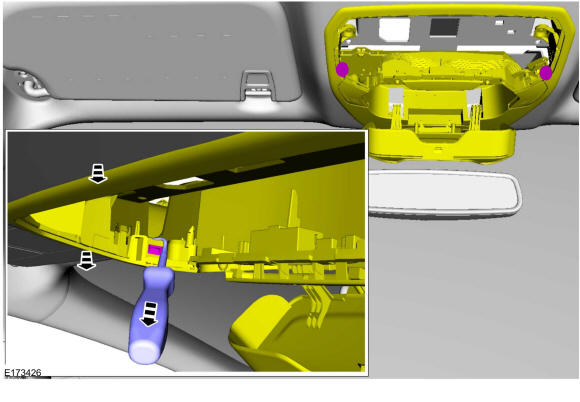

Using a suitable tool release the side snap tabs on both sides.

Courtesy of FORD MOTOR COMPANY

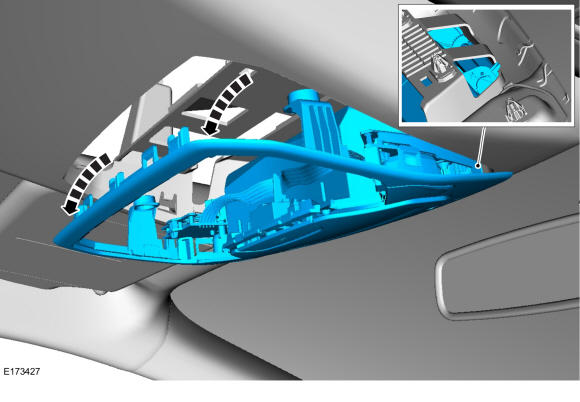

Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.

Courtesy of FORD MOTOR COMPANY
