Front Seat Track: Removal

All seats

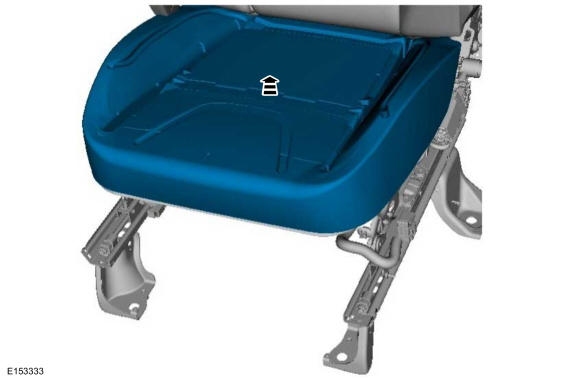

1. Remove the front seat backrest. Refer to: Front Seat Backrest  .

   Passenger seat

2. Remove the OCS. Refer to: Occupant Classification System (OCS) Sensor .

   Driver seat

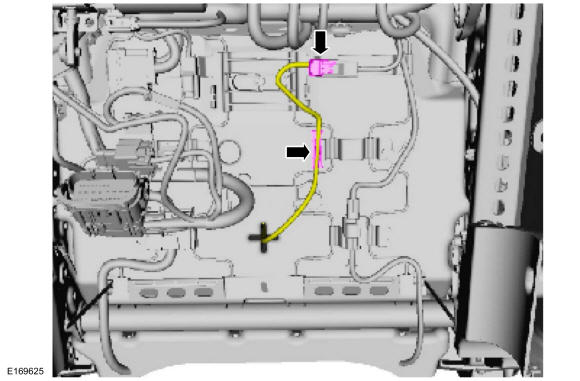

3. If equipped with a heated seat. Disconnect the heated seat electrical connector, detach the wire harness retainer and position the wire harness aside.

   Courtesy of FORD MOTOR COMPANY

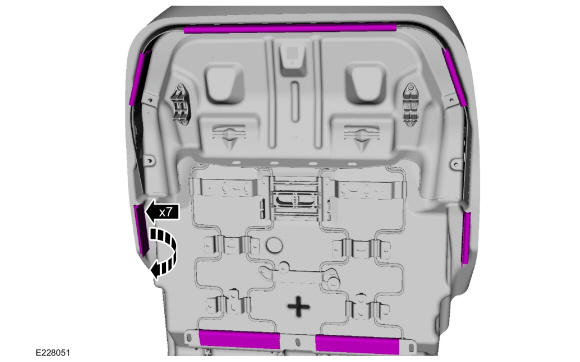

4. Release the seat cushion cover J-clips from the cushion frame.

   Courtesy of FORD MOTOR COMPANY

5. Remove the front seat cushion cover and foam assembly.

Courtesy of FORD MOTOR COMPANY
