Connector Repair Procedures

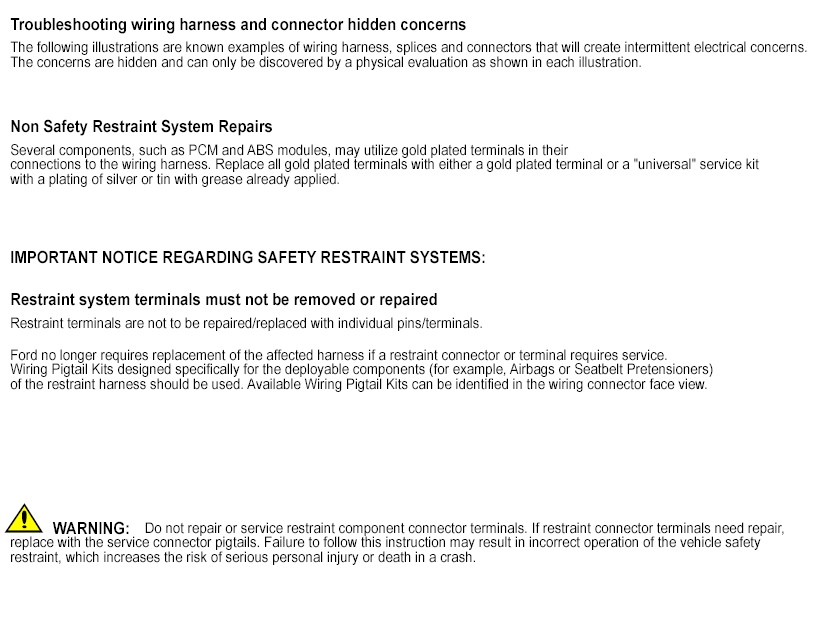

GFDW97252Courtesy of FORD MOTOR COMPANY

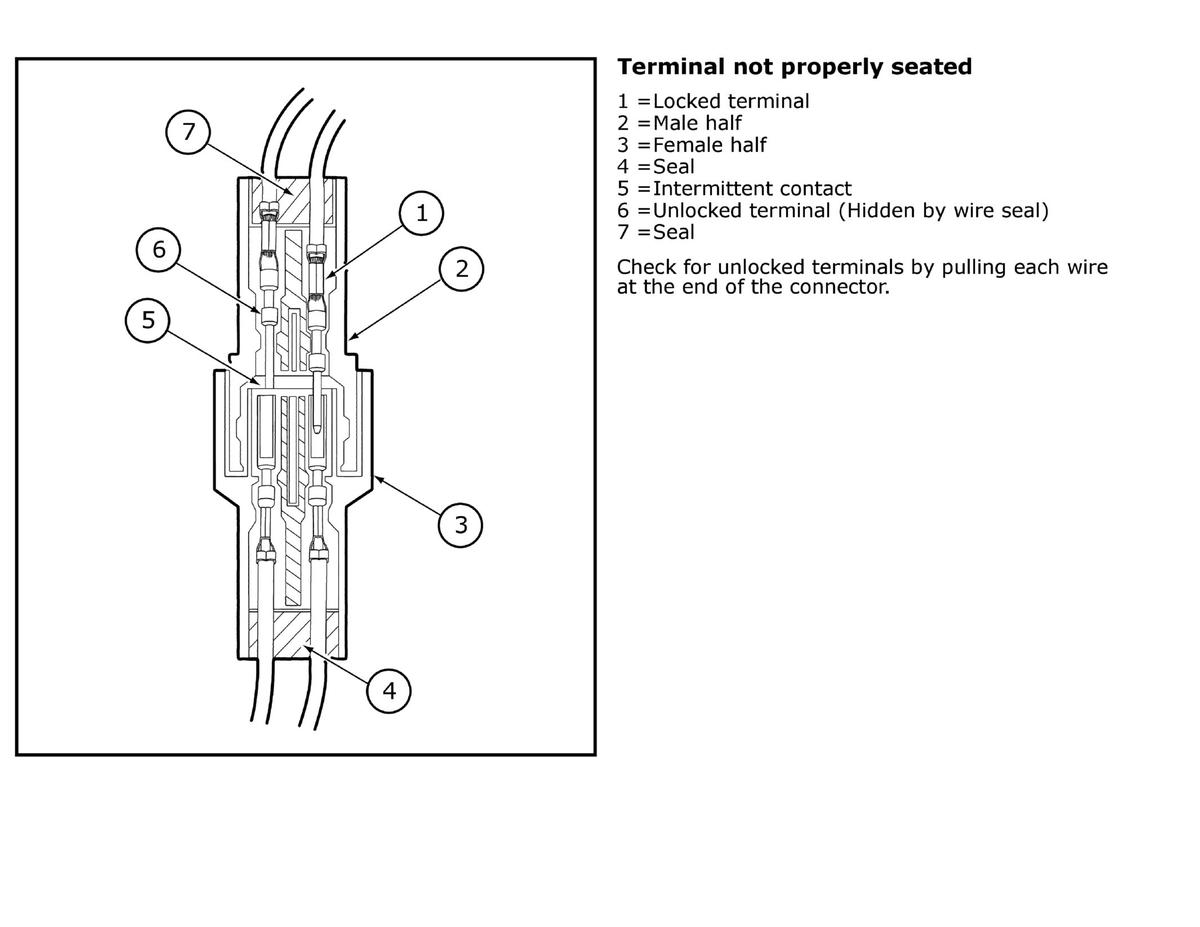

GFDW97253Courtesy of FORD MOTOR COMPANY

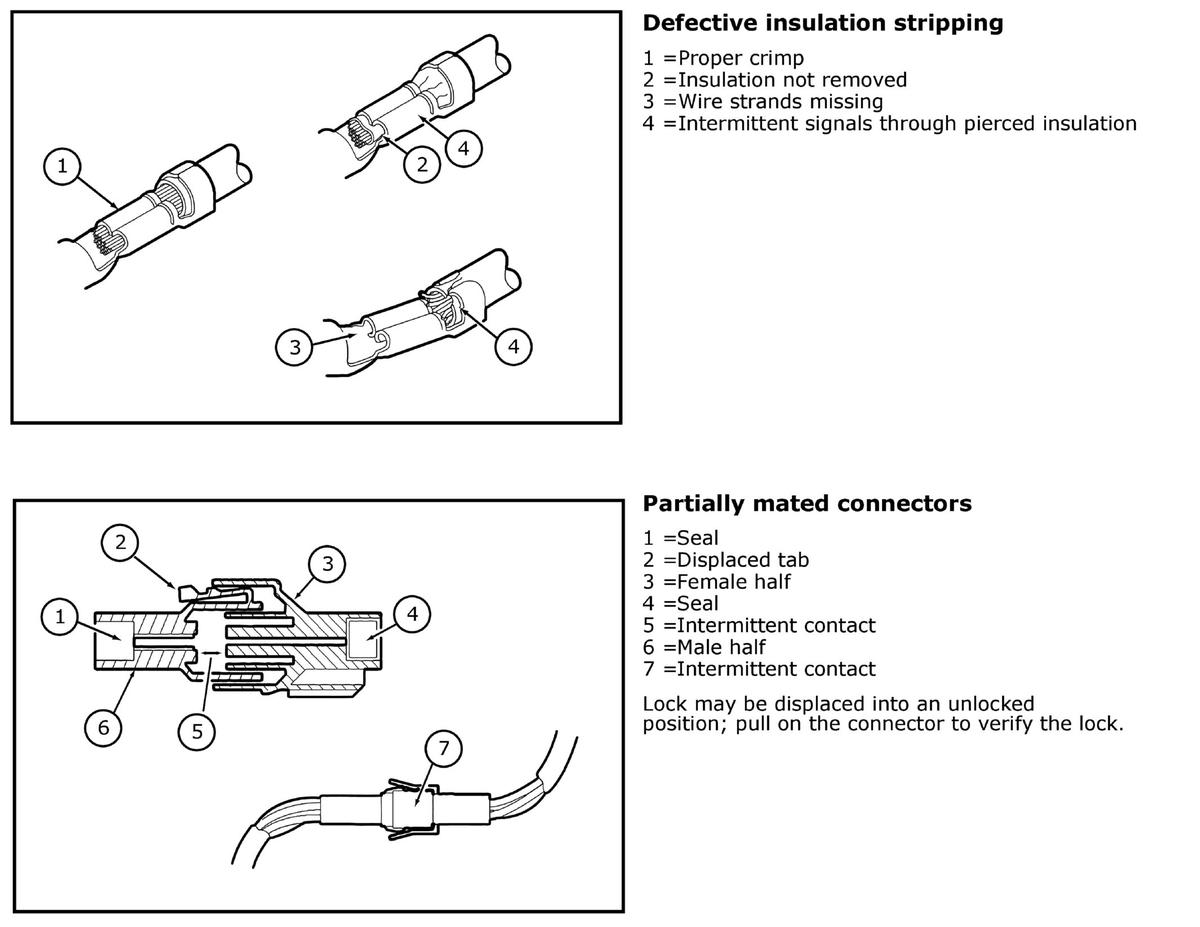

GFDW97254Courtesy of FORD MOTOR COMPANY

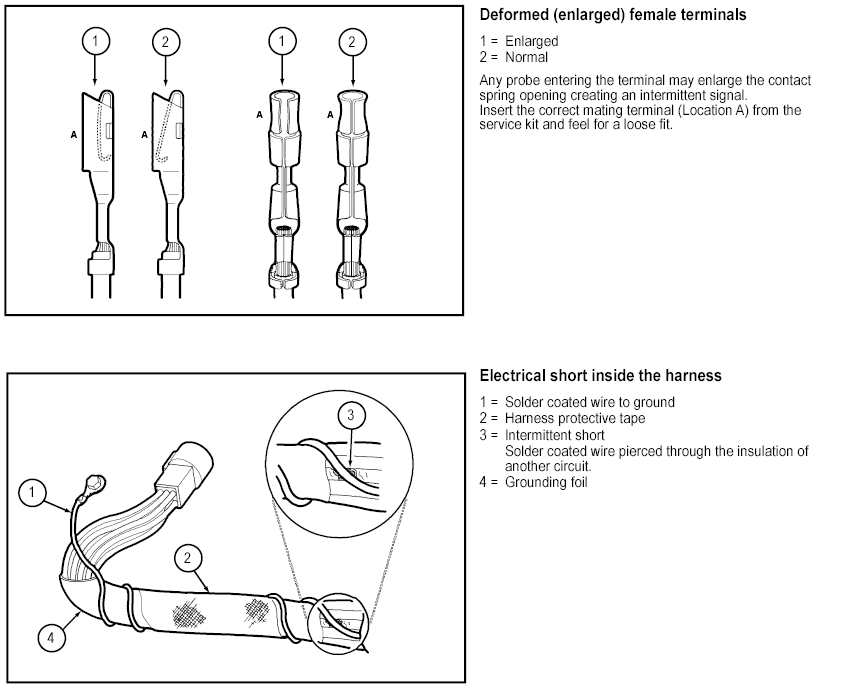

GFDW97255Courtesy of FORD MOTOR COMPANY

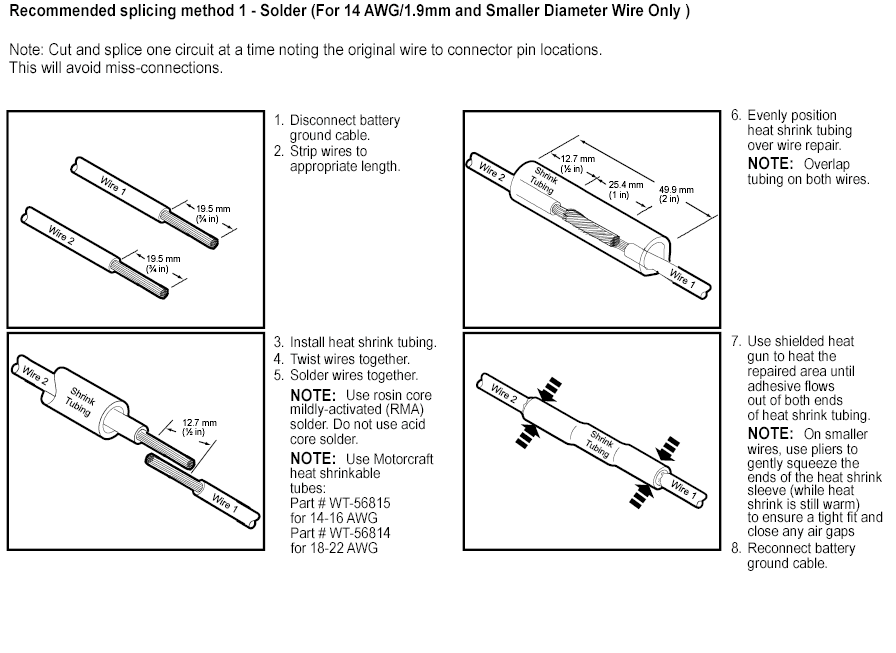

GFDW97256Courtesy of FORD MOTOR COMPANY

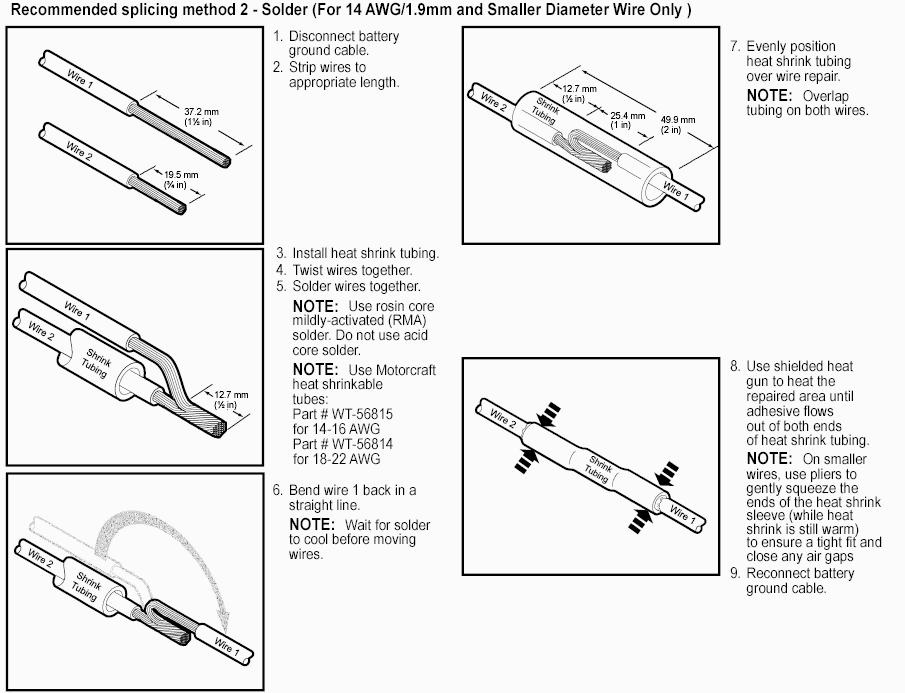

GFDW97257Courtesy of FORD MOTOR COMPANY

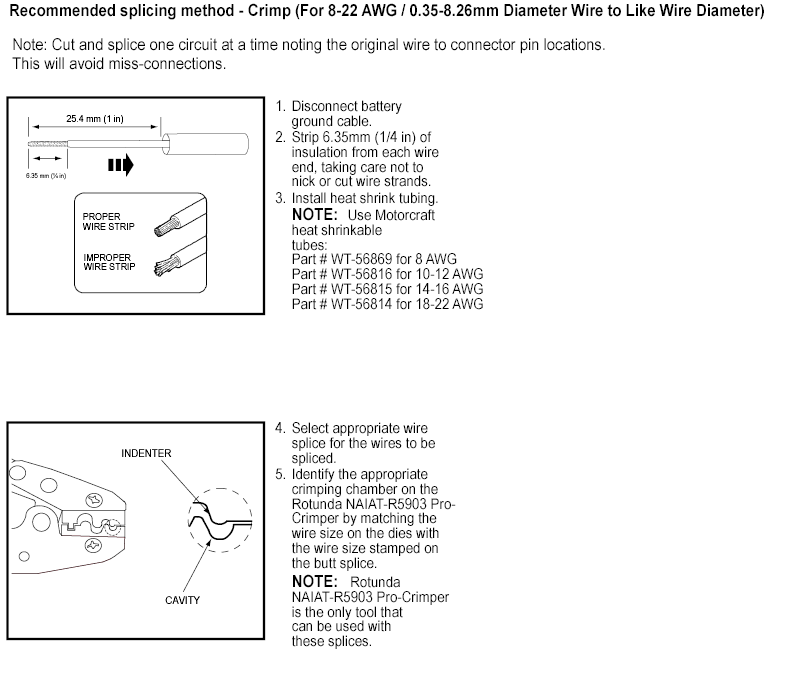

GFDW97258Courtesy of FORD MOTOR COMPANY

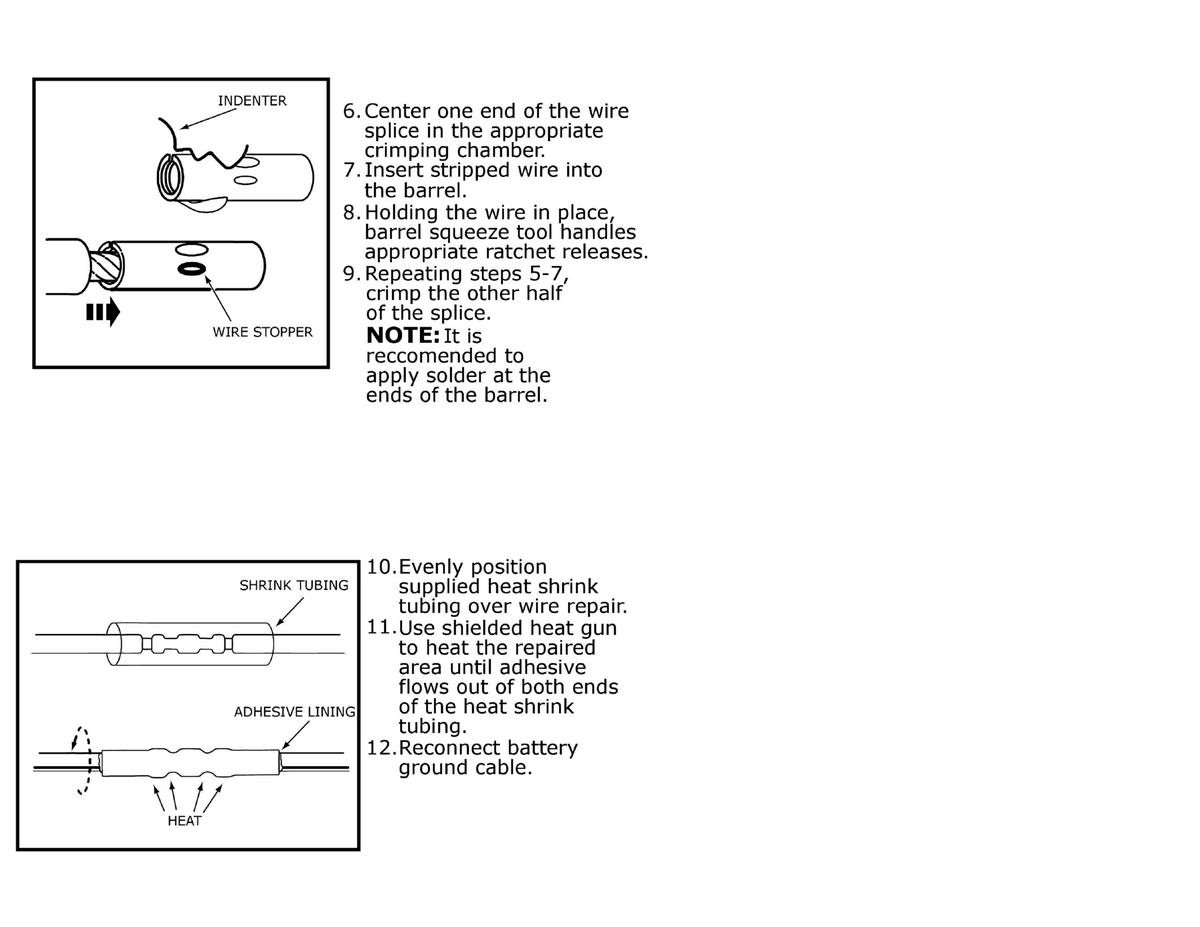

GFDW97259Courtesy of FORD MOTOR COMPANY

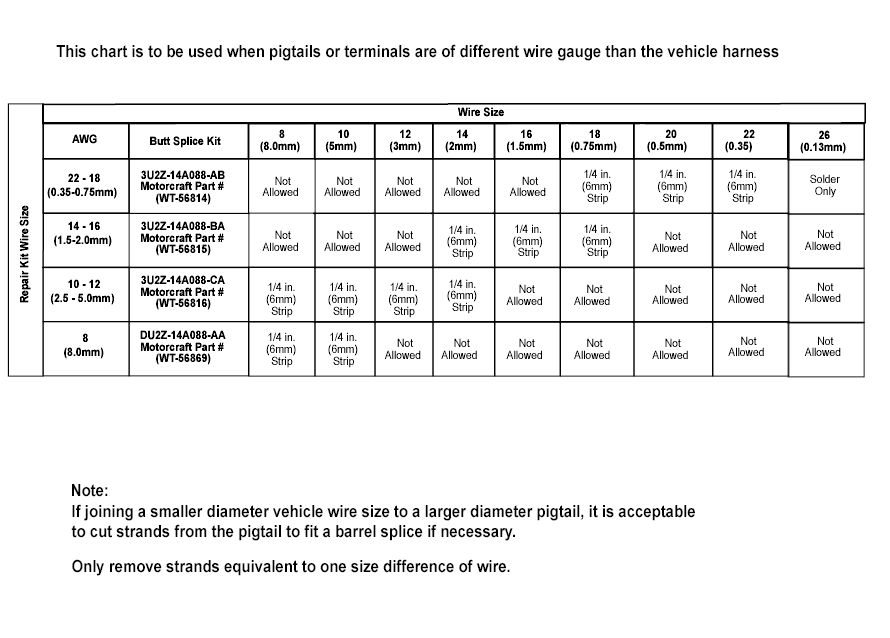

GFDW97260Courtesy of FORD MOTOR COMPANY
