Trailer Module (TRM): Removal
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .

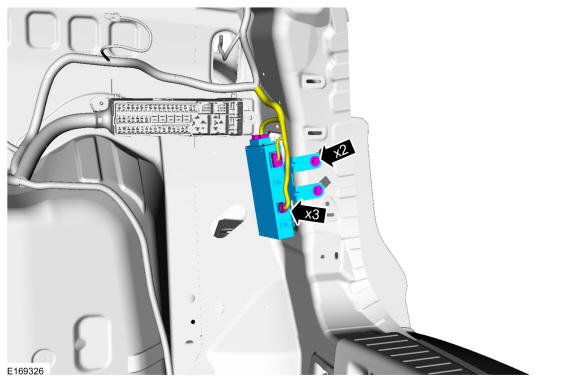

- Remove the trailer module.
- Disconnect the trailer module electrical connectors.
- Remove the trailer module screws.
Torque: 93 lb.in (10.5 Nm)
