Liftgate Latch: Installation

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Tighten the bolts in sequence shown.

    Torque

    : 22 lb.ft (30 Nm)

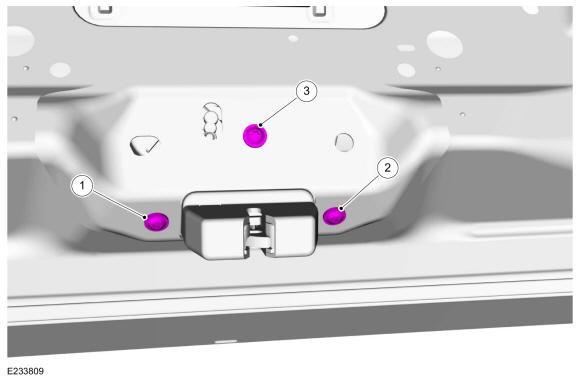

Fig 1: Liftgate Latch Bolts Tightening Sequence
GFD185636Courtesy of FORD MOTOR CO.
