Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

Remove the front door trim panel. Refer to: Front Door Trim Panel .

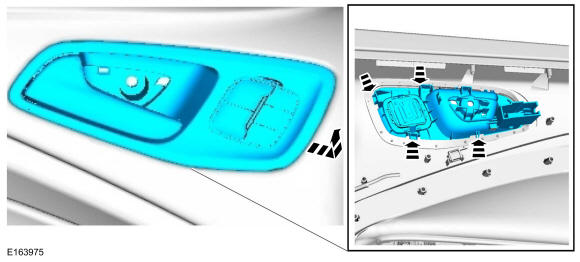

Remove the interior front door handle.

Courtesy of FORD MOTOR COMPANY

NOTE: This step is only necessary when installing a new component.

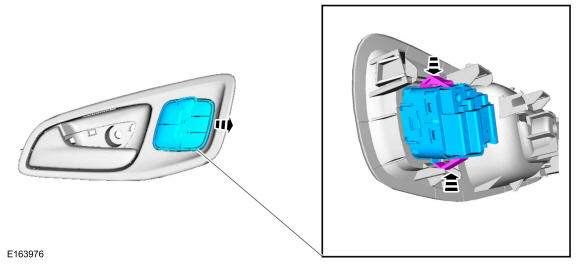

Release the retaining clips and remove the door lock control switch.

Courtesy of FORD MOTOR COMPANY
