Driver Door Module (DDM): Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .

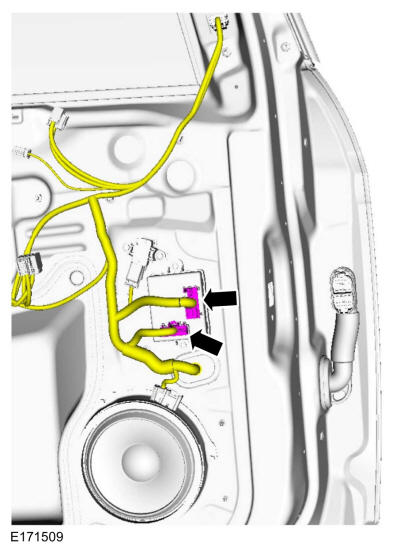

  2. Disconnect the electrical connectors.
    GFD185089Courtesy of FORD MOTOR COMPANY

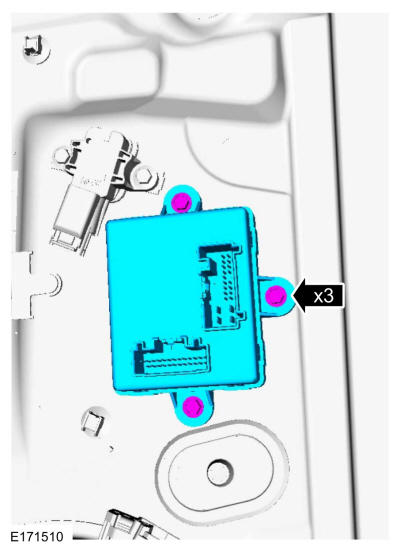

  3. Remove the retainers and the DDM.
GFD185090Courtesy of FORD MOTOR COMPANY
