Window Control Switch - Without Door Modules

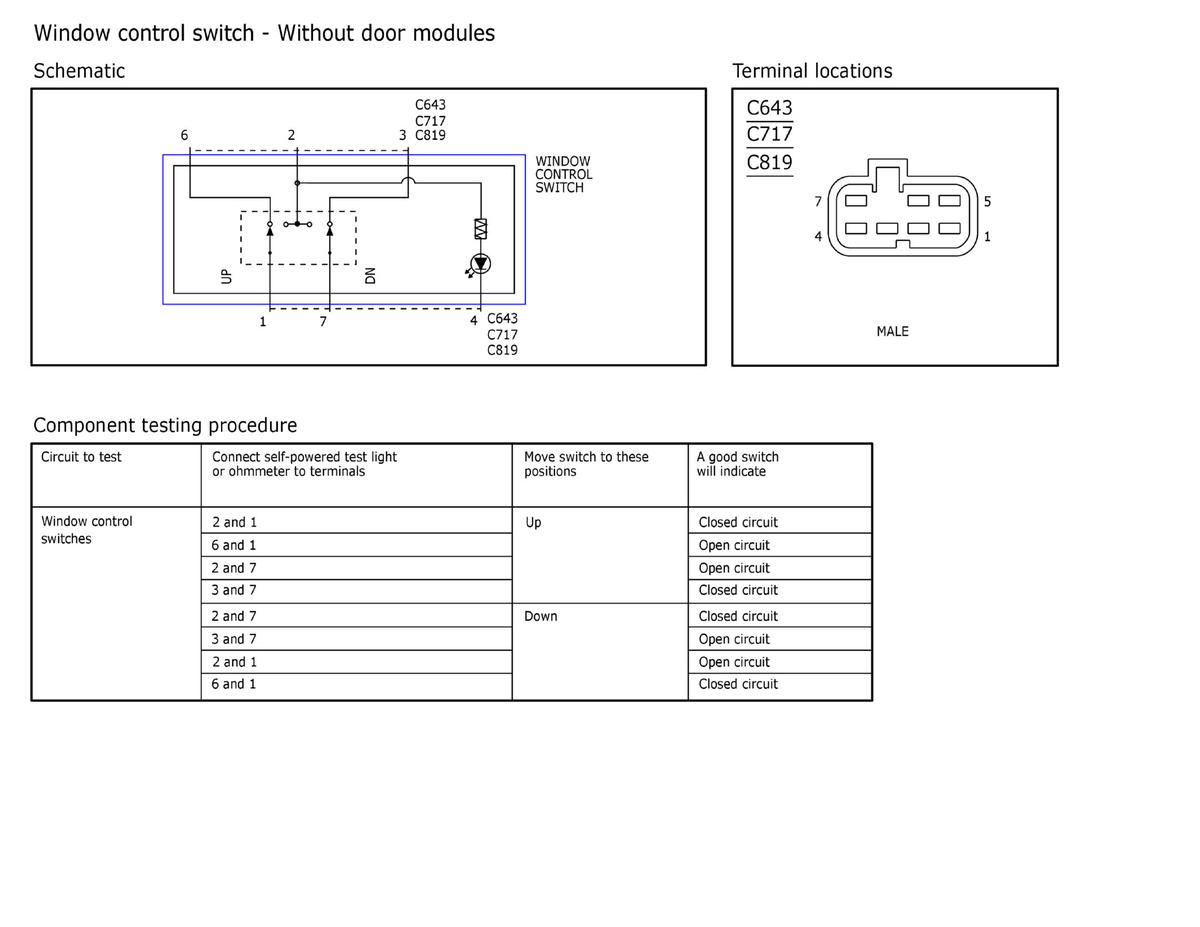

Fig 1: Window Control Switch - Without Door Modules

GFDW97538

Courtesy of FORD MOTOR COMPANY
