Steering
>>
Power Steering
>>
Description And Operation
>>
Power Steering - System Operation and Component Description
>>
System Operation
>>

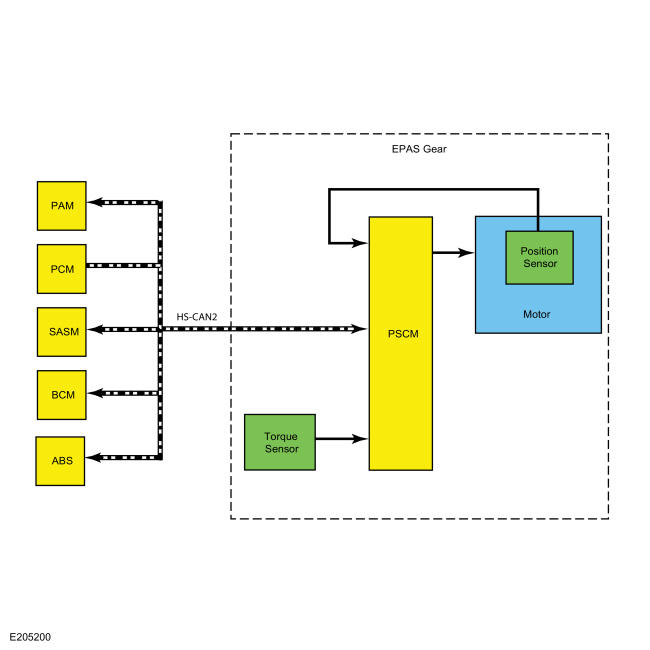

System Diagram
System Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

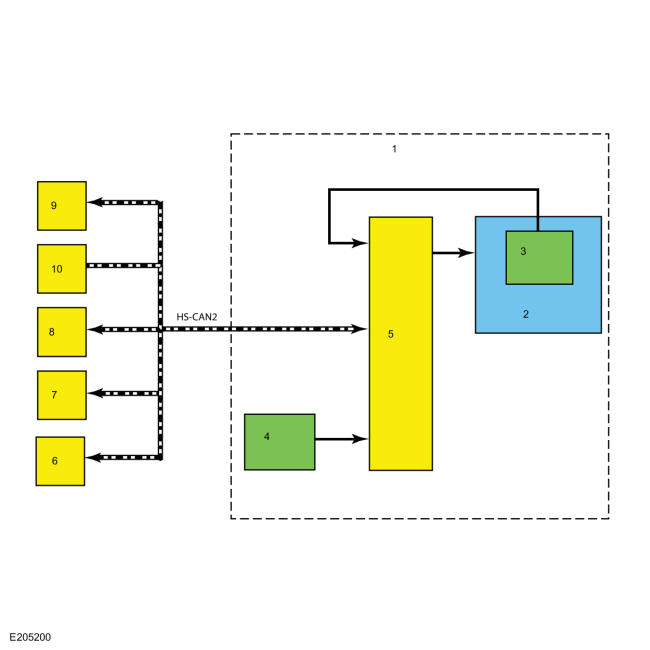

Item
Description
1
EPAS gear
2
EPAS motor
3
EPAS motor position sensor
4
EPAS motor torque sensor
5
PSCM
6
ABS module
7
BCM
8
SASM
9
PAM
10
PCM
Courtesy of FORD MOTOR COMPANY
