Front Seat Control Switch RH (8-way)

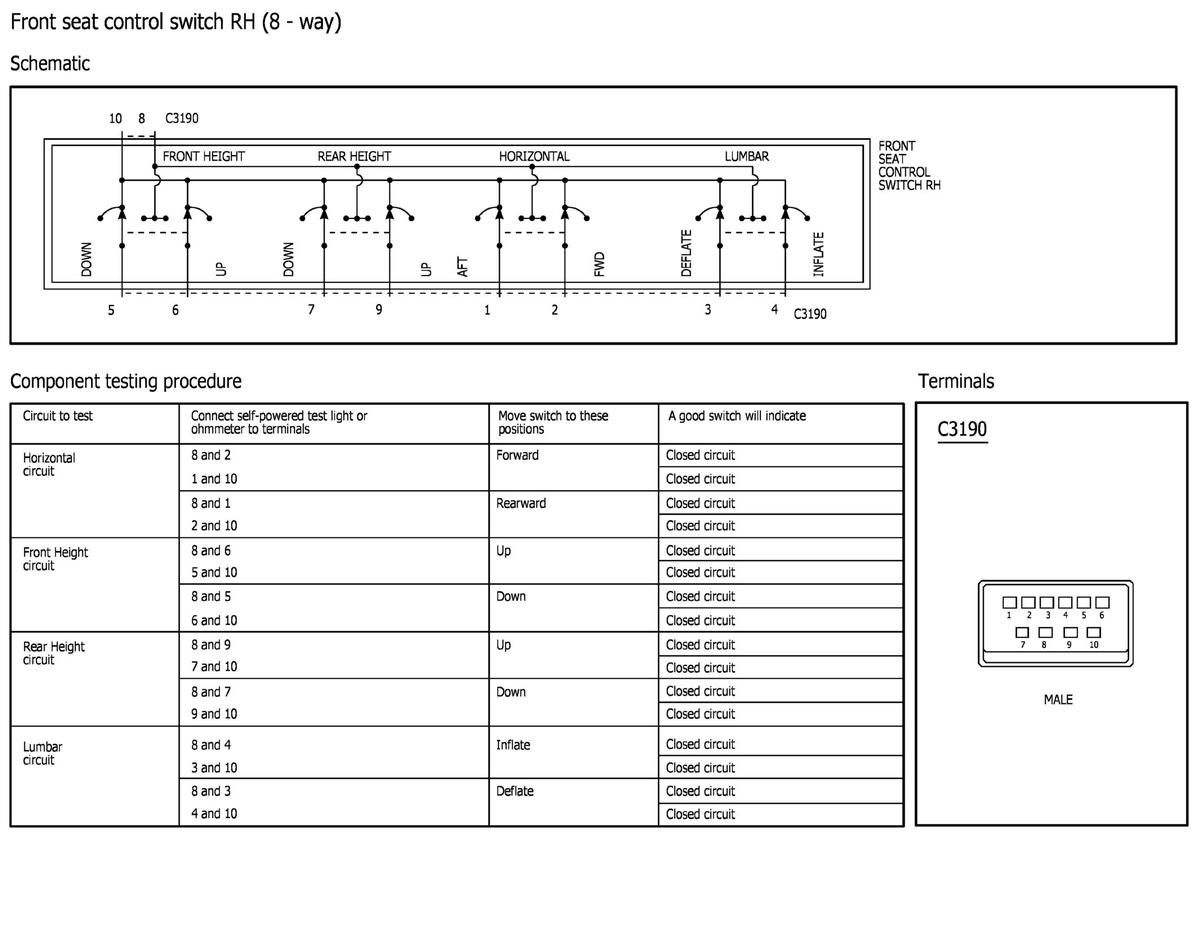

Fig 1: Front Seat Control Switch RH (8-way)

GFDWR1780

Courtesy of FORD MOTOR COMPANY
