Front Seat Control Switch RH (6-way)

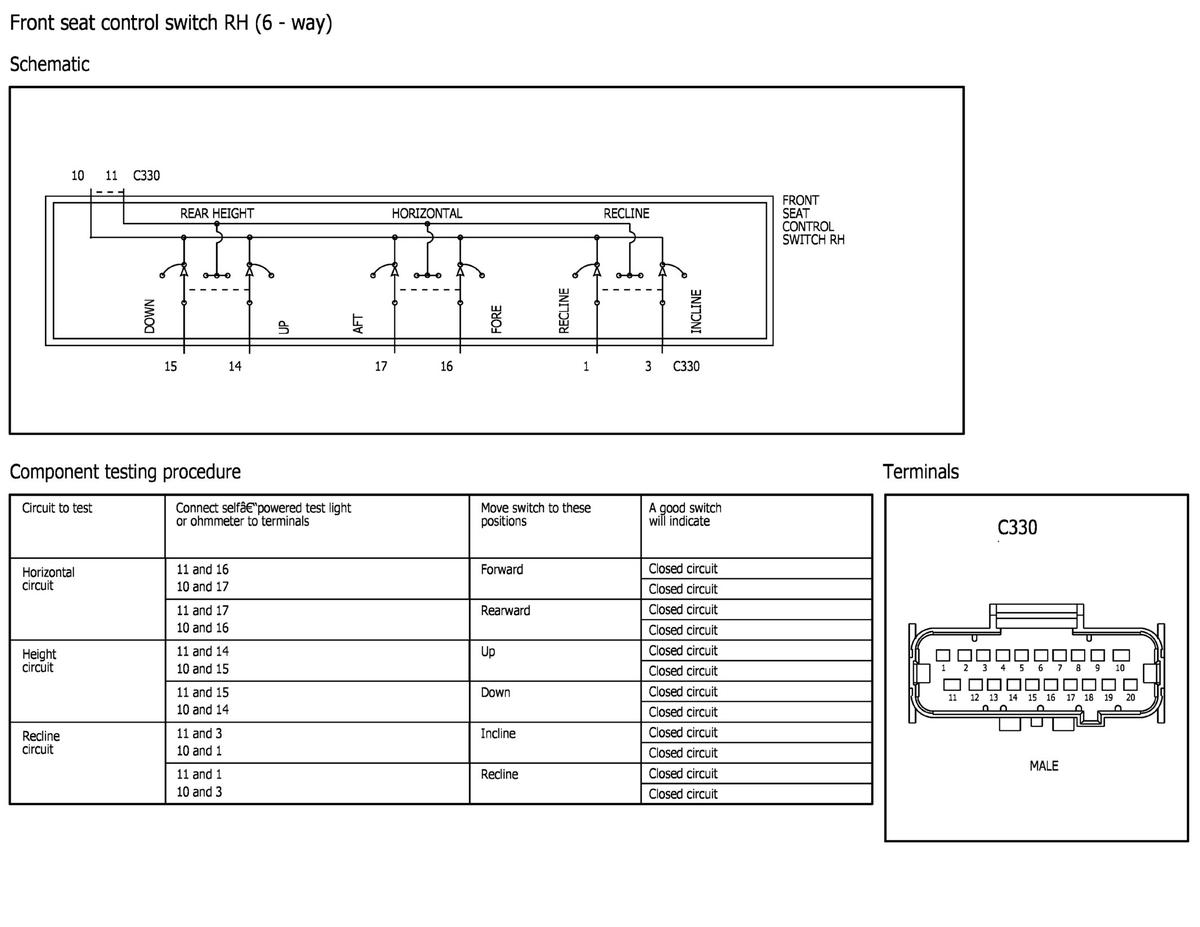

Fig 1: Front Seat Control Switch RH (6-way)

GFDWR1779

Courtesy of FORD MOTOR COMPANY
