Front Seat Control Switch LH (10-way)

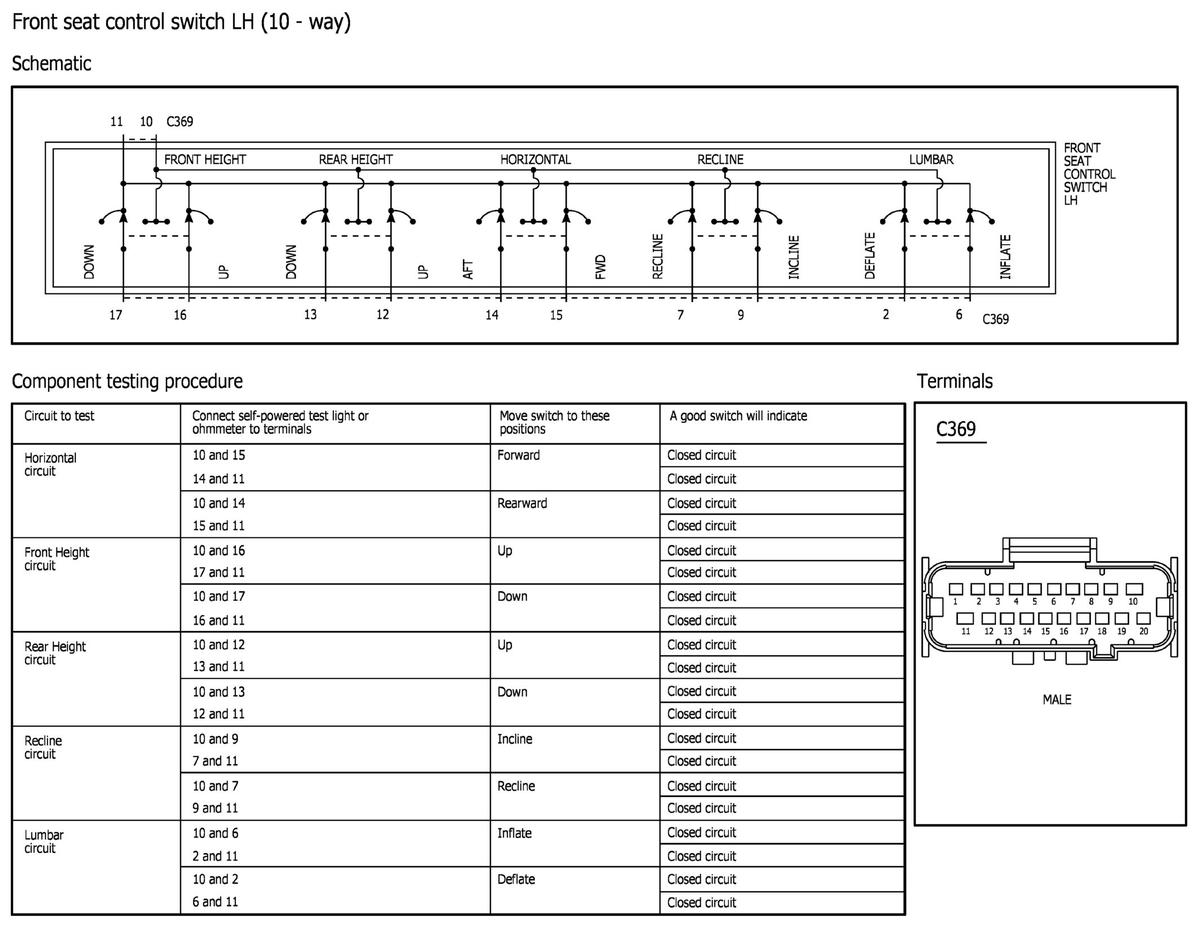

Fig 1: Front Seat Control Switch LH (10-way)

GFDWR1778

Courtesy of FORD MOTOR COMPANY
