Selector Lever Bezel: Removal

NOTE: Removal steps in this procedure may contain installation details.

Apply the parking brake.

Courtesy of FORD MOTOR COMPANY
Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY
On both sides. Detach the clips and remove the floor console upper finish panels.

Courtesy of FORD MOTOR COMPANY
Detach the clips and remove the lower center stack finish panel.

Courtesy of FORD MOTOR COMPANY
Detach the clips, disconnect the electrical connectors and remove the floor console upper trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips, lift the selector lever bezel up and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

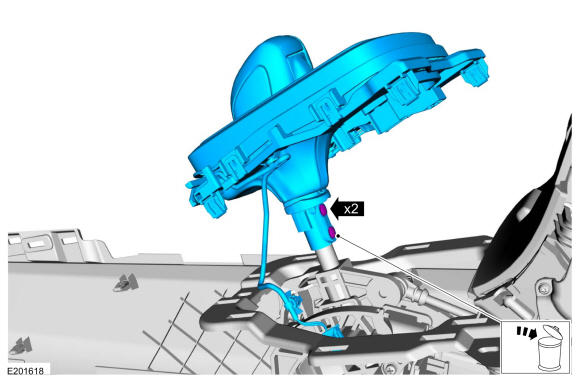

Remove and discard the retainers and remove the selector lever knob.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

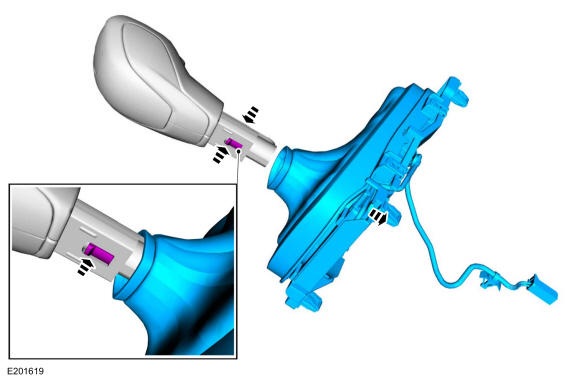

Remove the boot and bezel from the shifter knob.

Courtesy of FORD MOTOR COMPANY
