Brake Shift Interlock Actuator Manual Override
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Activation
NOTE:
If it is necessary to use the brake shift interlock actuator override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify the brake lights are working.
This vehicle is equipped with a brake shift interlock actuator feature that prevents the selector lever from being moved out of the PARK position when the ignition is in the ON position until the brake pedal is applied. If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is applied:

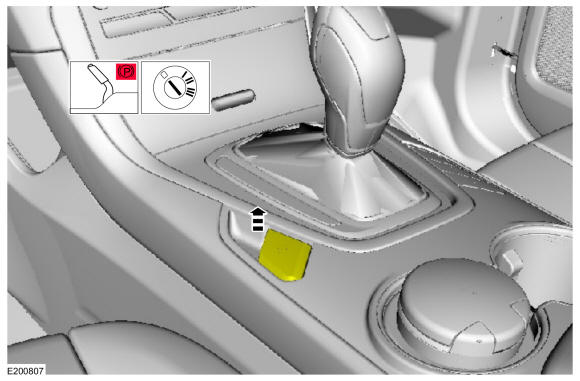

- Apply the parking brake. Set the ignition switch to the 0 position (ignition off).
- Open the floor console stowage bin lid.

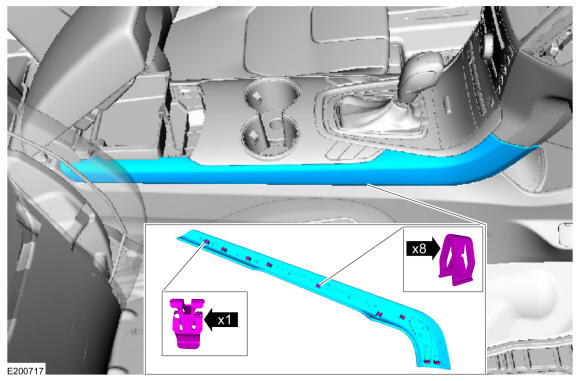

- Detach the clips and remove the RH floor console upper finish panel.

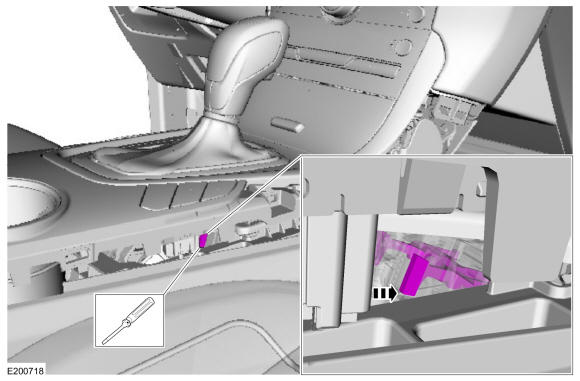

- Using a small screwdriver, push forward on the brake shift interlock actuator on the selector lever assembly, apply the brake pedal, press the button on the selector lever knob and move the selector lever into N.
- Start the engine.
