Liftgate Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

1. Check liftgate-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

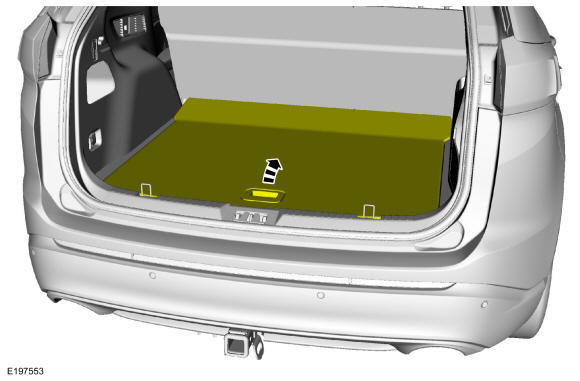

1. Position aside the load compartment luggage cover.

   Courtesy of FORD MOTOR COMPANY

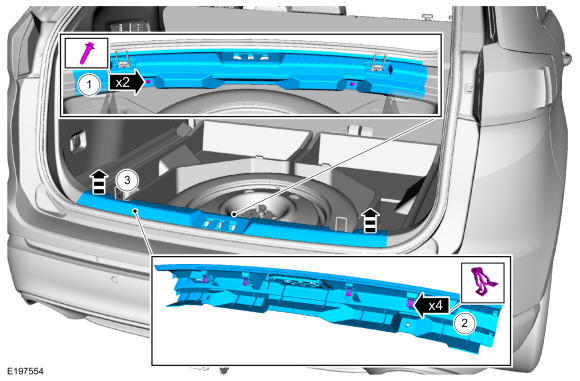

2. 1. Remove the bolts.

      Torque

      : 80 lb.in (9 Nm)

   2. Remove the retainers.
   3. Remove the liftgate opening trim panel.

   Courtesy of FORD MOTOR COMPANY

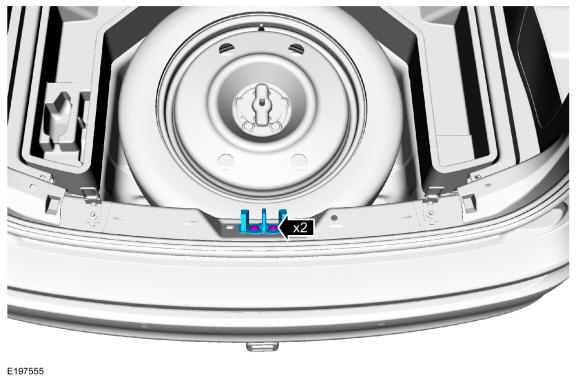

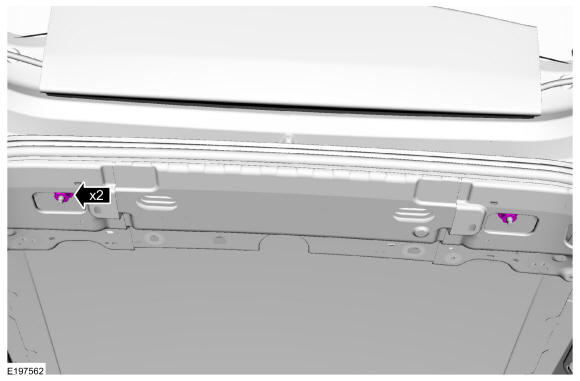

3. Remove the liftgate striker.

   Torque

   : 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

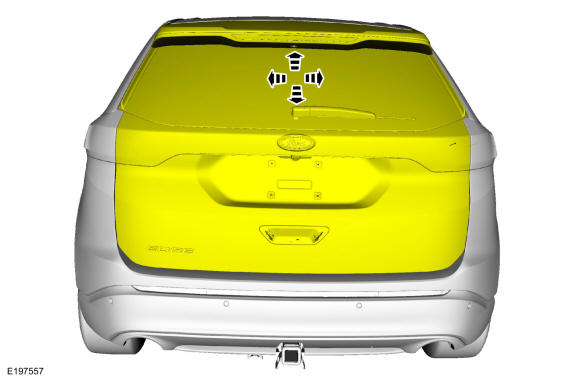

   Liftgate left and right, up and down alignment

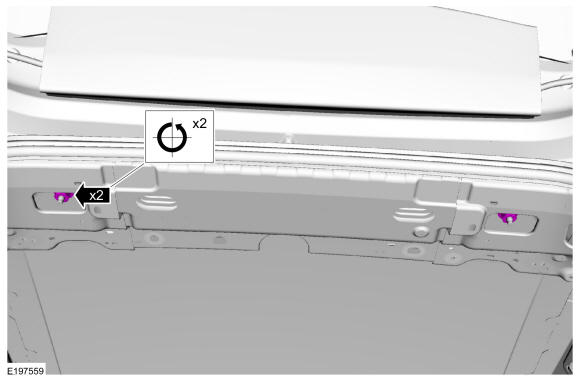

4. Loosen the bolts. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

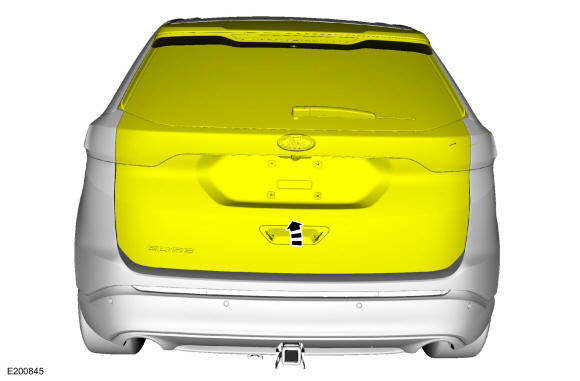

5. Carefully close the liftgate.

   Courtesy of FORD MOTOR COMPANY

6. Adjust the liftgate to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

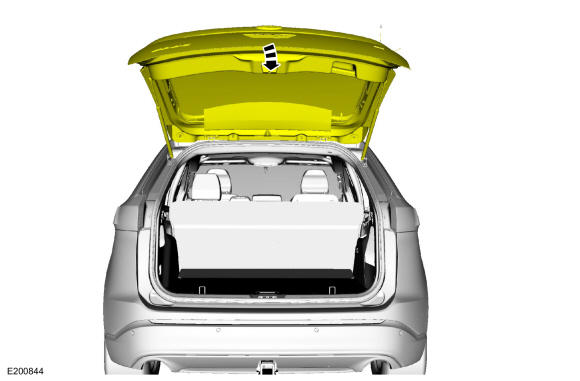

7. Carefully open the liftgate.

   Courtesy of FORD MOTOR COMPANY

8. Tighten the bolts.

   Torque

   : 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

   Liftgate in and out alignment

9. Lower the headliner. Refer to: Headliner - Lowering .

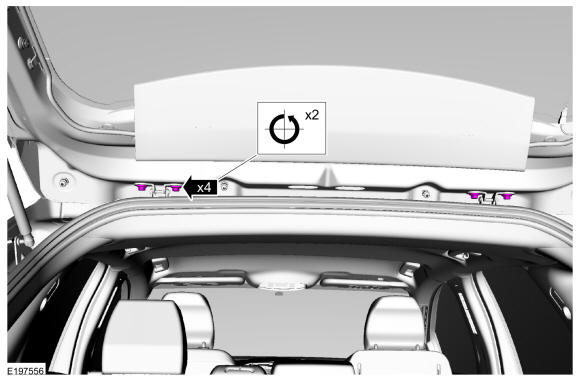

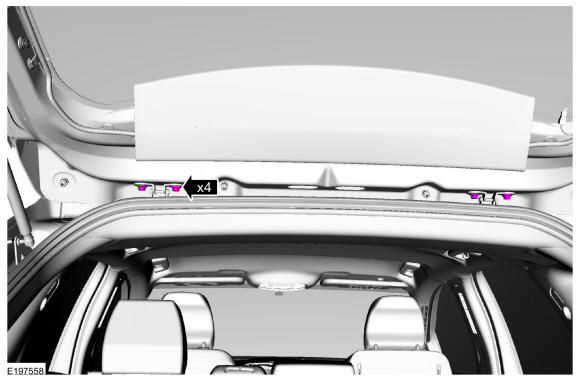

10. Loosen the nuts. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

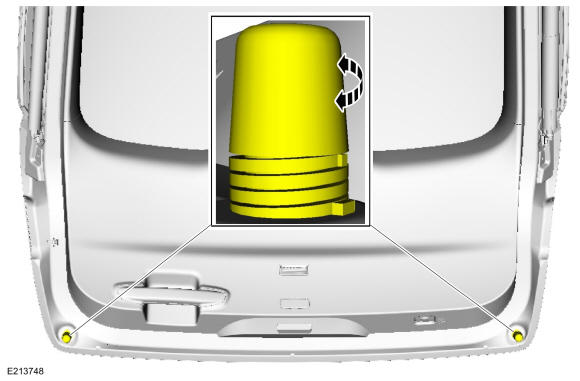

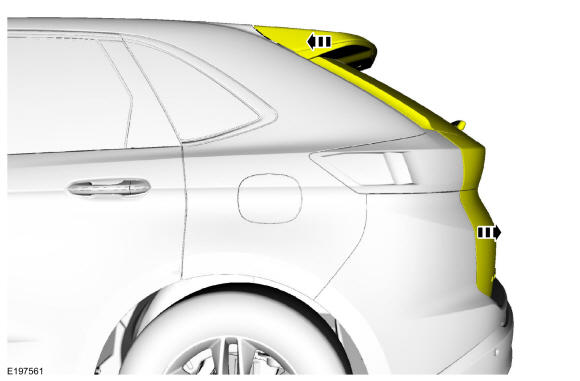

11. NOTE: Nominal overslam bumpers have a small lip and should be adjusted flush with the sheet metal surface.

    Adjust the nominal overslam bumpers.

    Courtesy of FORD MOTOR COMPANY

12. Carefully close the liftgate.

    Courtesy of FORD MOTOR COMPANY

13. Adjust the liftgate to specification. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

14. Carefully open the liftgate.

    Courtesy of FORD MOTOR COMPANY

15. Tighten the nuts.

    Torque

    : 46 lb.ft (62.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All alignments

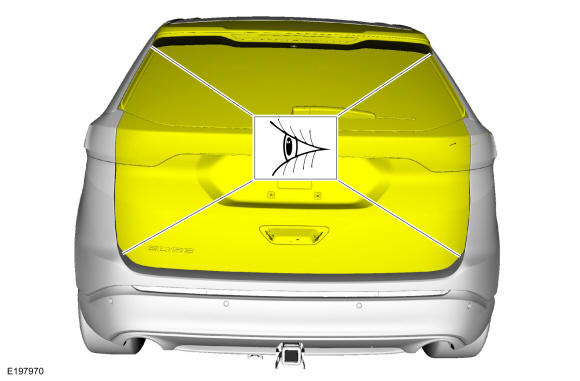

16. Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

17. Install the removed components.
18. If equipped, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
