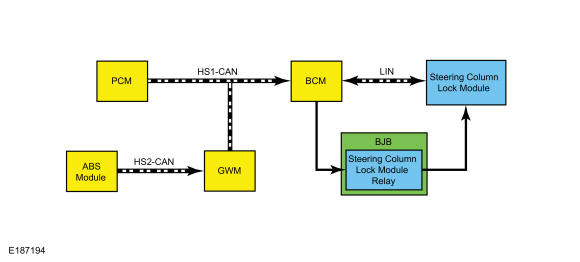

System Diagram - Steering Column Lock (if equipped)

GFD277409Courtesy of FORD MOTOR COMPANY
GFD277410Courtesy of FORD MOTOR COMPANY
Item Description
1 HS1-CAN
2 LIN
3 HS2-CAN
4 BCM
5 PCM
6 Steering Column Lock Module
7 BJB
8 Steering Column Lock Module Relay
9 ABS Module
10 GWM
