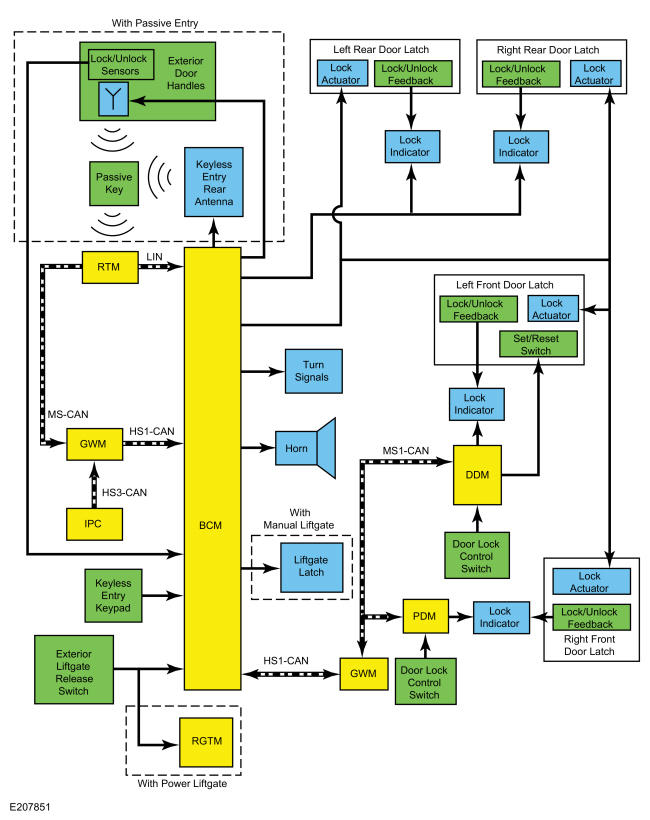

System Diagram

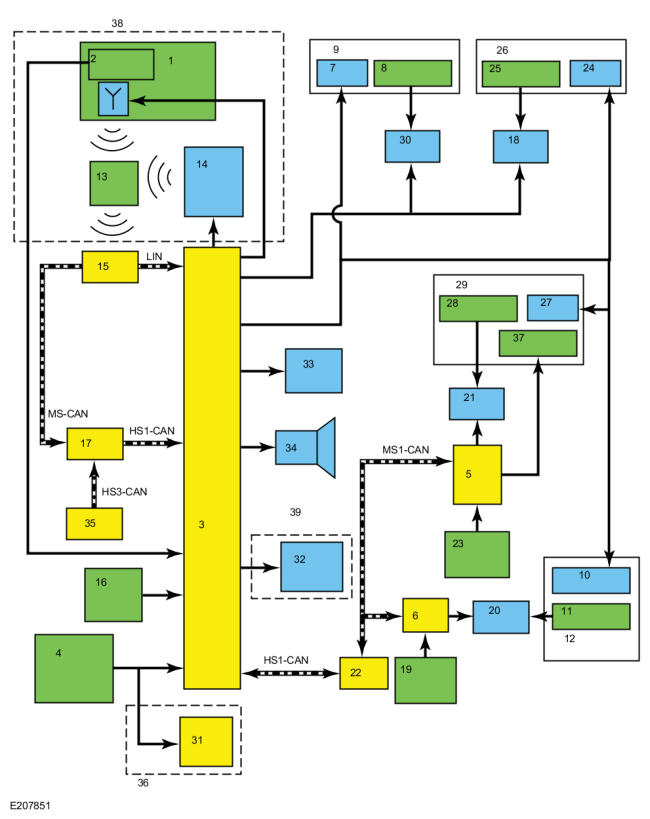

| Item | Description |
|---|---|
| 1 | Exterior Door Handles |
| 2 | Lock/Unlock Sensors |
| 3 | BCM |
| 4 | Exterior Liftgate Release Switch |
| 5 | DDM |
| 6 | PDM |
| 7 | Lock Actuator |
| 8 | Lock/Unlock Feedback |
| 9 | Left Rear Door Latch |
| 10 | Lock Actuator |
| 11 | Lock/Unlock Feedback |
| 12 | Right Front Door Latch |
| 13 | Passive Key |
| 14 | Keyless Entry Rear Antenna |
| 15 | RTM |
| 16 | Keyless Entry Keypad |
| 17 | GWM |
| 18 | Lock Indicator |
| 19 | Door Lock Control Switch |
| 20 | Lock Indicator |
| 21 | Lock Indicator |
| 22 | GWM |
| 23 | Door Lock Control Switch |
| 24 | Lock Actuator |
| 25 | Lock/Unlock Feedback |
| 26 | Right Rear Door Latch |
| 27 | Lock Actuator |
| 28 | Lock/Unlock Feedback |
| 29 | Left Front Door Latch |
| 30 | Lock Indicator |
| 31 | RGTM |
| 32 | Liftgate Latch |
| 33 | Turn Signals |
| 34 | Horn |
| 35 | IPC |
| 36 | With Power Liftgate |
| 37 | Set/Reset Switch |
| 38 | With Passive Entry |
