External Controls - Component Location

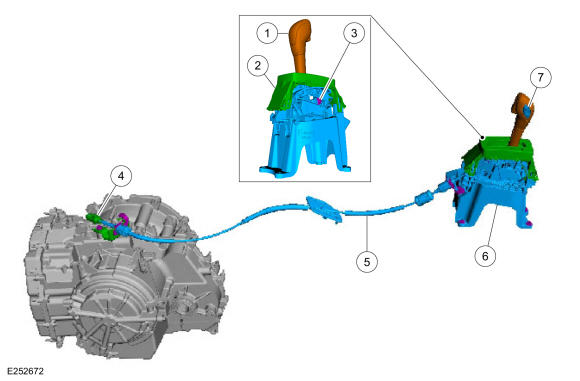

6F15
| Item | Description |
|---|---|
| 1 | Selector lever knob |
| 2 | Selector lever bezel |
| 3 | Brake shift interlock actuator |
| 4 | Selector lever cable adjuster |
| 5 | Selector lever cable |
| 6 | Selector lever assembly |
| 7 | SelectShift® switch (if equipped) |

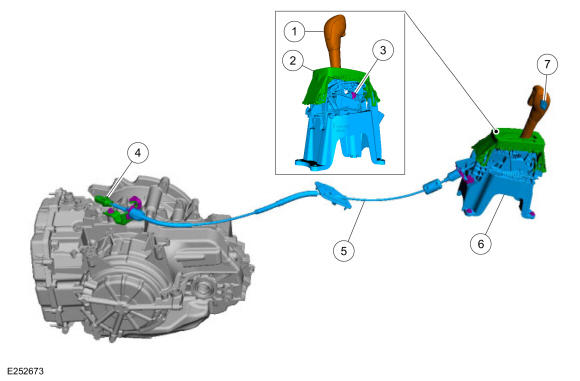

6F35
| Item | Description |
|---|---|
| 1 | Selector lever knob |
| 2 | Selector lever bezel |
| 3 | Brake shift interlock actuator |
| 4 | Selector lever cable adjuster |
| 5 | Selector lever cable |
| 6 | Selector lever assembly |
| 7 | SelectShift® switch (if equipped) |

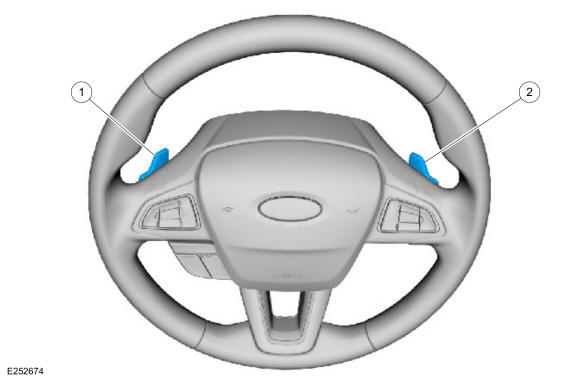

Paddle Switches
| Item | Description |
|---|---|
| 1 | Downshift paddle switch (if equipped) |
| 2 | Upshift paddle switch (if equipped) |
