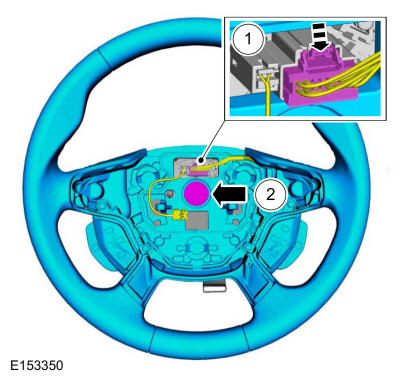

Steering Wheel: Removal
- Refer to: Health and Safety Precautions .
- Refer to: Driver Airbag .
- Torque: 35 lb.ft (48 Nm)

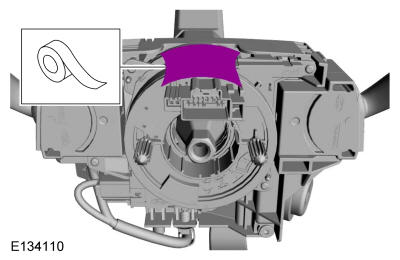

- Apply tape to specified component or area.
WARNING:
Before beginning any service procedure in this article, refer to Health and Safety Precautions
. Failure to follow this instruction may result in serious personal injury.
NOTE:
To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Make sure that the clockspring rotor does not rotate.
NOTE:
Make sure that the clockspring pins are not bent or damaged.
