Tie Rod: Installation

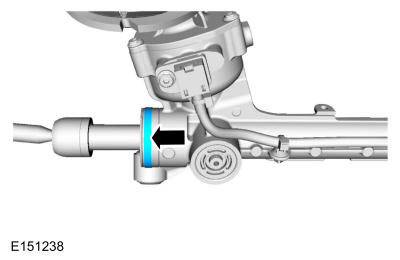

NOTE: Place the steering gear at the center position and hold the steering gear rack while loosening or tightening the inner tie rod. Use an appropriate-sized wrench on the flat/teeth of the rack to resist rotation and to prevent damage during removal of the inner tie rod.

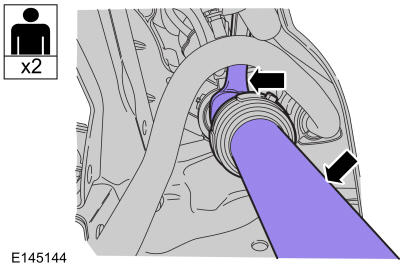

NOTE: Use an assistant to hold the steering gear rack on the Left Hand (LH) side when servicing the Right Hand (RH) inner tie rod.

NOTE: Crowfoot-style inner tie-rod tool in illustration.

General equipment: Inner tie-rod remover/installer.
Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure to install the O-ring seal provided with the bellows boot kit or a leak may occur.

Courtesy of FORD MOTOR COMPANY

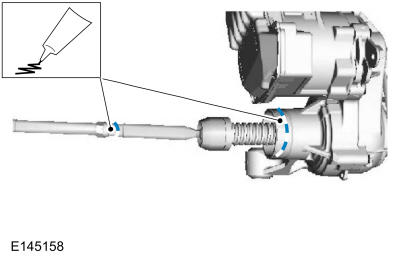

Apply the substance from the specified tube.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

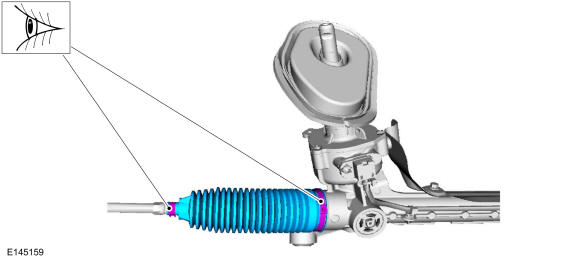

NOTE: Make sure the steering gear bellows is positioned correctly over the steering gear housing bead and the grooves in the inner tie-rod casting.

NOTE: Make sure the end of the steering gear bellows boot is positioned between the 2 grooves on the inner tie rod or an internal leak may occur.

Visual check. General equipment: Boot clamp installer.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

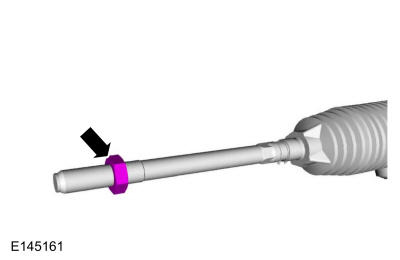

NOTE: Install the outer tie rod the same number of turns recorded during removal.

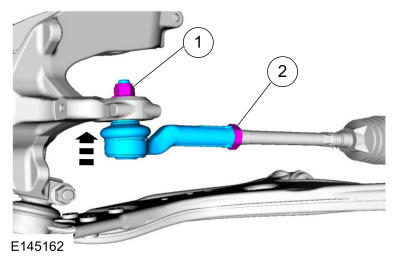

1. Torque: 35 lb.ft (48 Nm)
2. Torque: 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped.

Courtesy of FORD MOTOR COMPANY

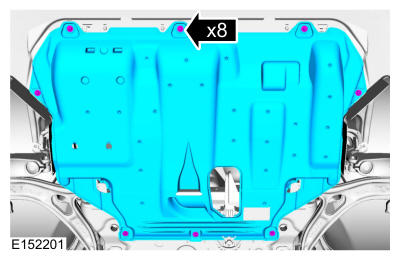

Refer to: Wheel and Tire .
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .

Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
Refer to: Front Toe Adjustment .
