Power Transfer Unit

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Remove the subframe. Refer to: FRONT SUBFRAME .
If equipped with PTU cooling system, drain the cooling system. Refer to: COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
Remove the RH halfshaft. Refer to: Front Halfshaft RH - 3.0L EcoBoost, All-Wheel Drive (AWD) .
Disconnect the HO2S electrical connector.

Courtesy of FORD MOTOR CO.
Disconnect the catalyst monitor electrical connector.

Courtesy of FORD MOTOR CO.
Remove and discard the driveshaft to PTU bolt and washer assemblies.

Courtesy of FORD MOTOR COMPANY

Position aside the driveshaft.

Mark the driveshaft and PTU flange alignment.
Separate the driveshaft from the PTU flange.

Push the engine forward and position aside the driveshaft.

Courtesy of FORD MOTOR COMPANY

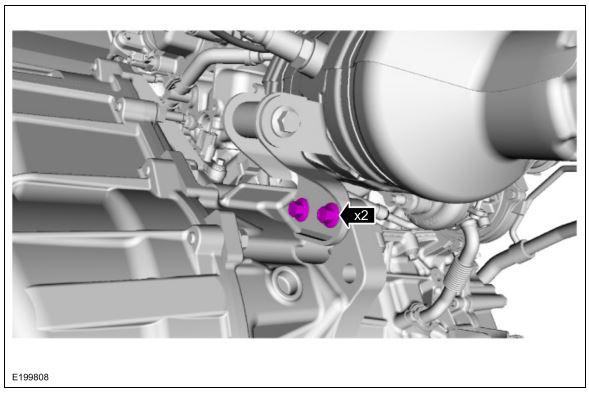

Remove the RH catalytic converter to transmission bracket bolts.

Courtesy of FORD MOTOR CO.

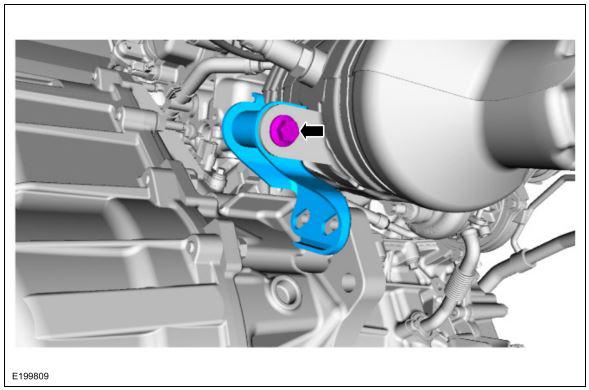

Remove the RH catalytic converter bracket through bolt and bracket.

Courtesy of FORD MOTOR CO.

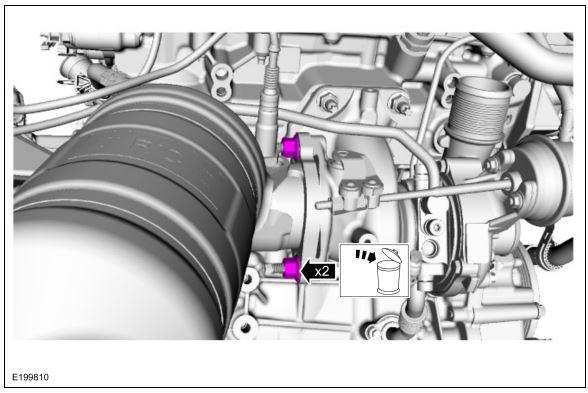

Remove and discard the RH catalytic converter nuts. Remove the RH catalytic converter.

Courtesy of FORD MOTOR CO.

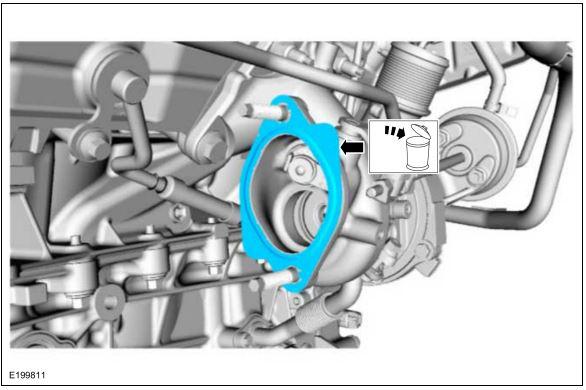

Remove and discard the converter gasket.

Courtesy of FORD MOTOR CO.
Disconnect the PTU temperature sensor.

Courtesy of FORD MOTOR COMPANY
Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY
Disconnect and position aside the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

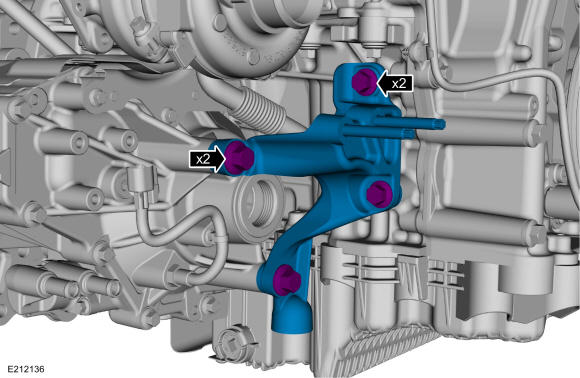

Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY

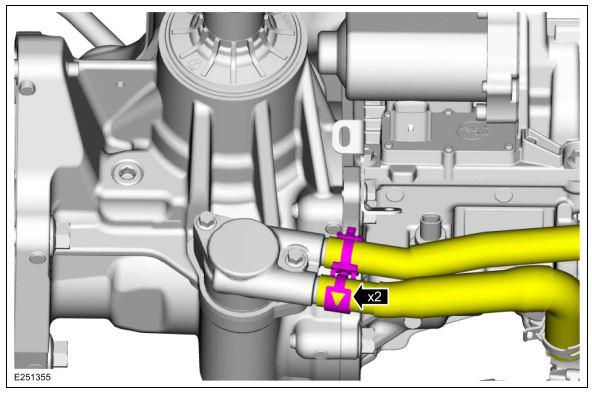

If equipped with PTU cooling system. Release the hose clamps and position aside the PTU cooling system hoses.

Courtesy of FORD MOTOR CO.

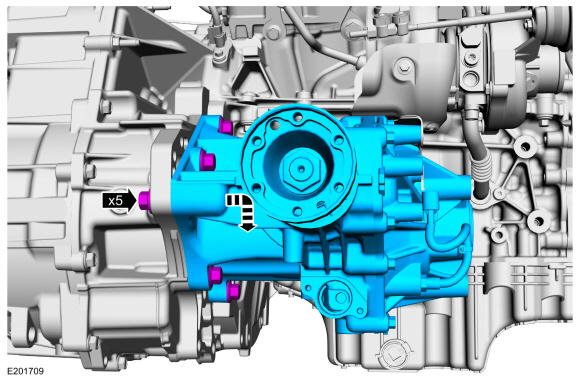

Remove the PTU bolts and the PTU.

Courtesy of FORD MOTOR COMPANY

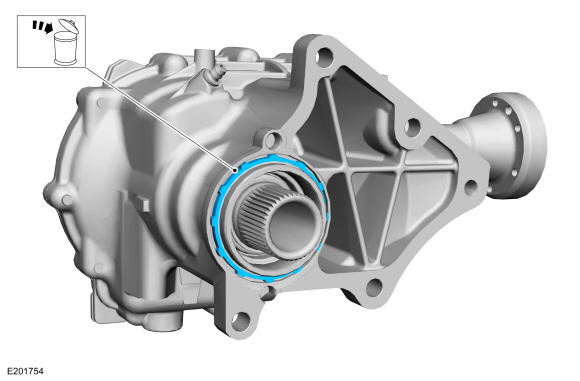

Remove and discard the PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY
