Throttle Body: Removal

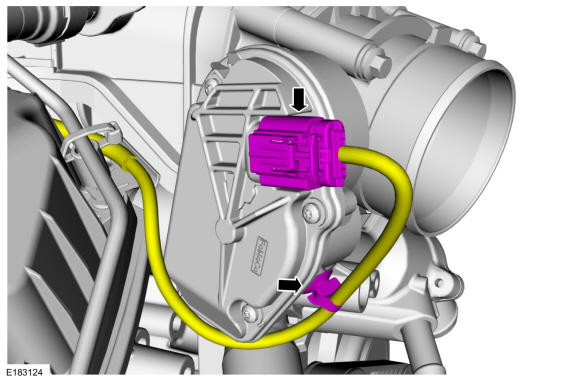

- 2.NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.
Disconnect the Throttle Body (TB) electrical connector and disconnect the wire harness retainer from the Throttle Body (TB).
- 3.

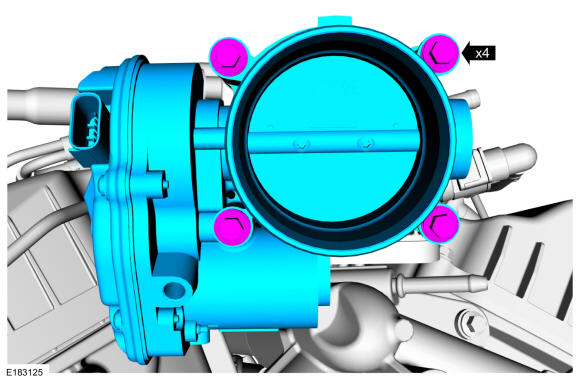

Remove the Throttle Body (TB) bolts and remove the Throttle Body (TB).Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 90°
