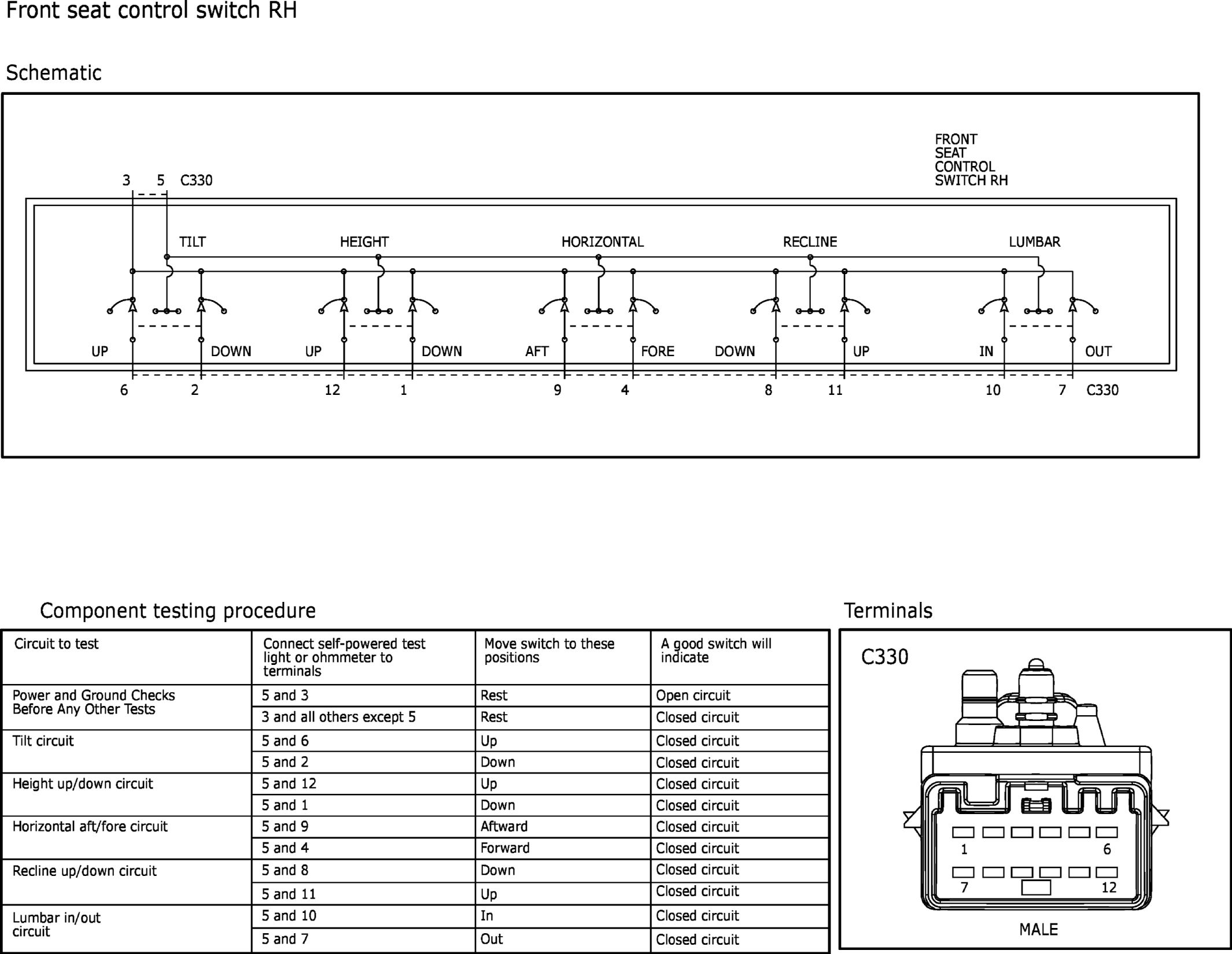

Home >> Ford >> 2017 >> Transit-150 Base, 3.2L Eng VIN V >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams Component Testing >> Component Testing >> Front Seat Control Switch RH
