Connector Repair Procedures

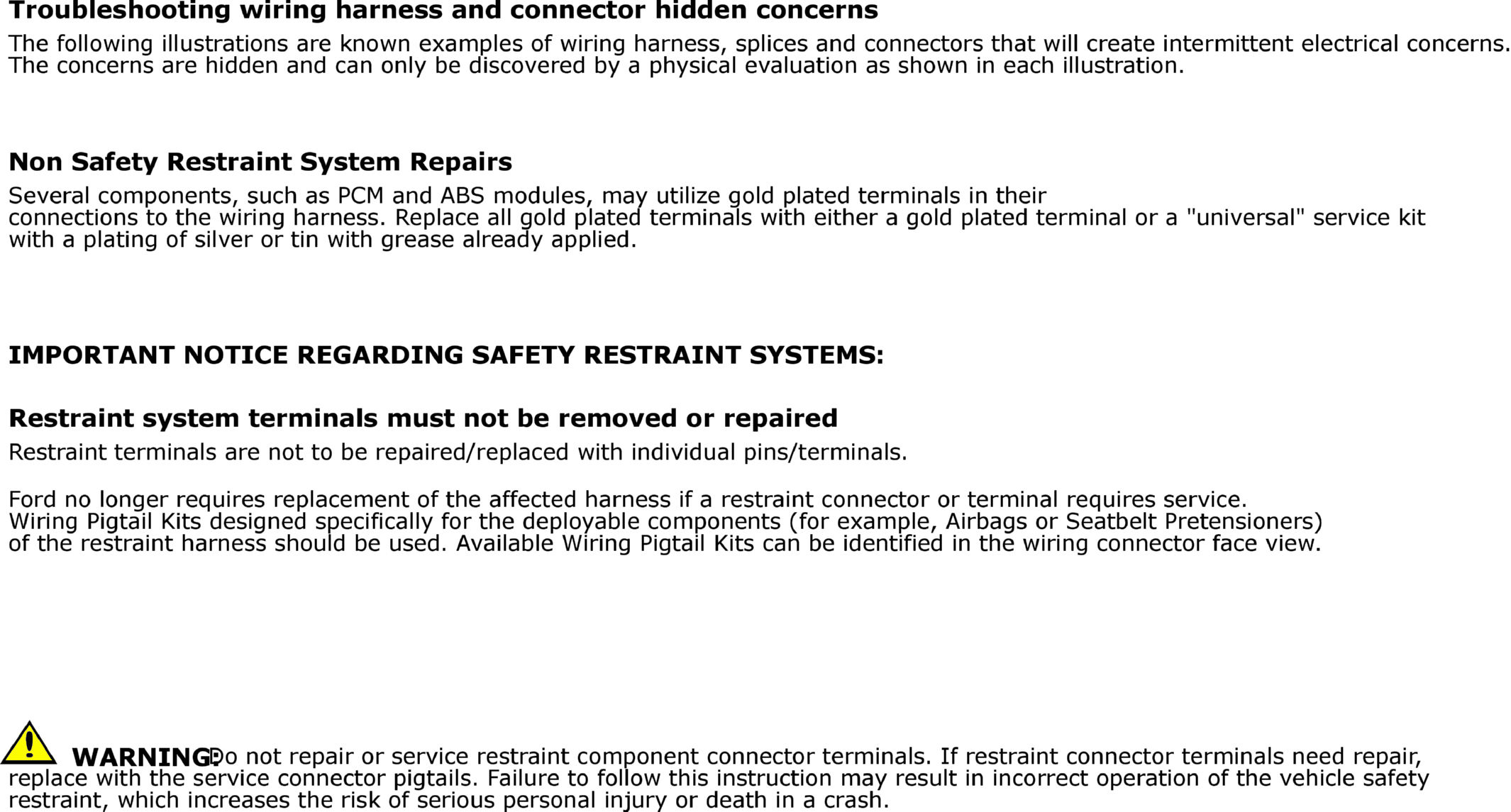

GFDW61392Courtesy of FORD MOTOR COMPANY

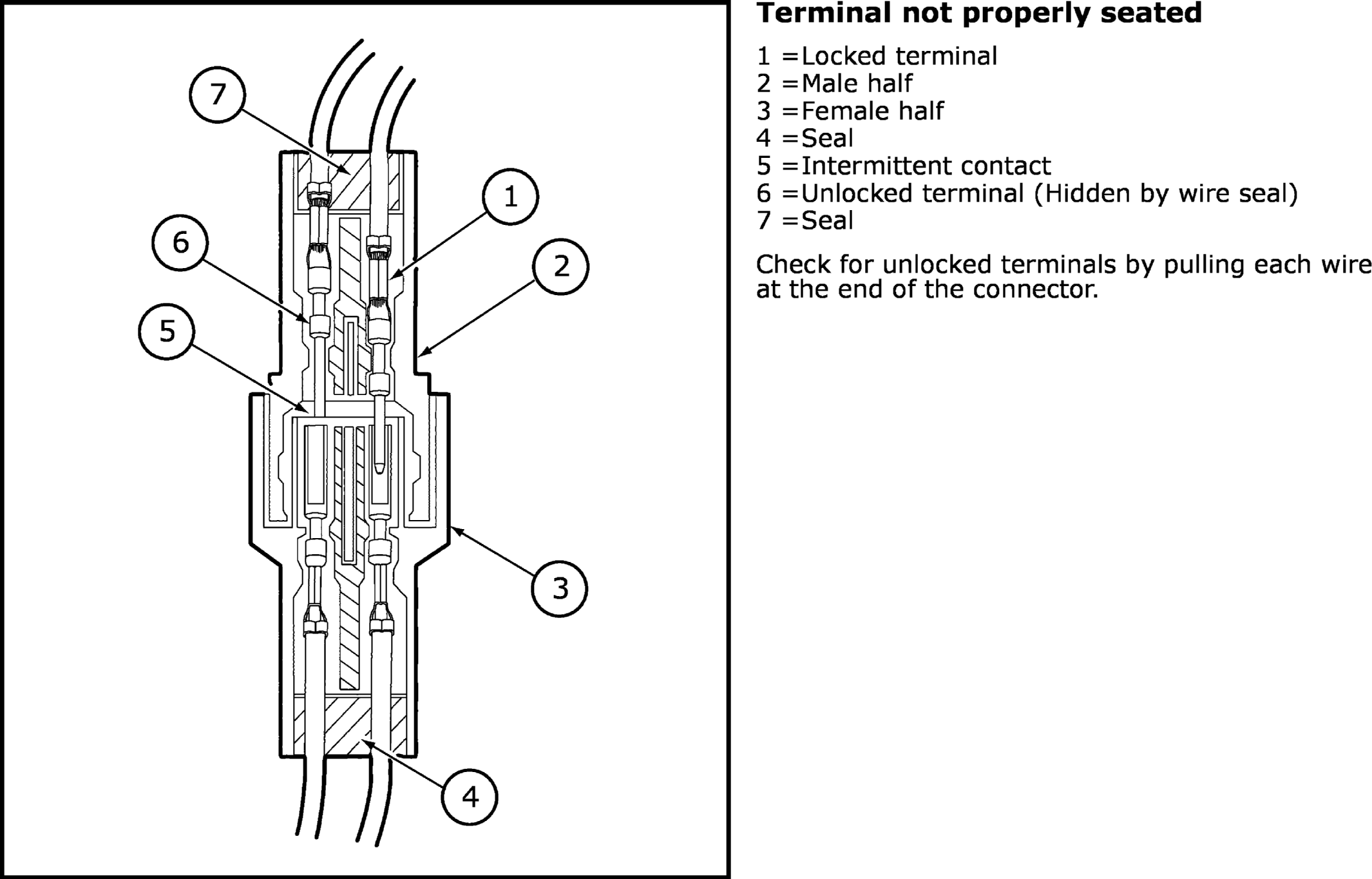

GFDW61393Courtesy of FORD MOTOR COMPANY

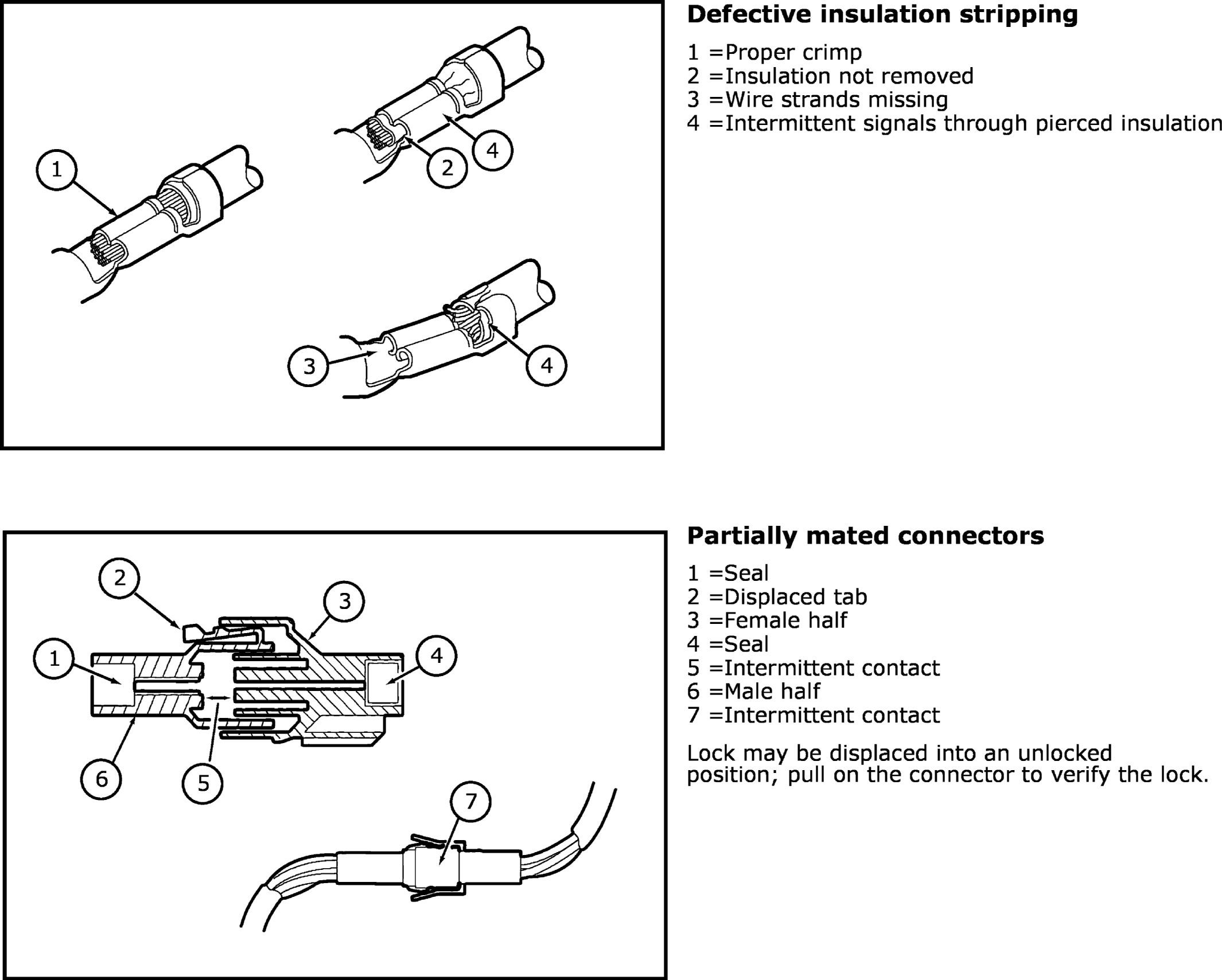

GFDW61394Courtesy of FORD MOTOR COMPANY

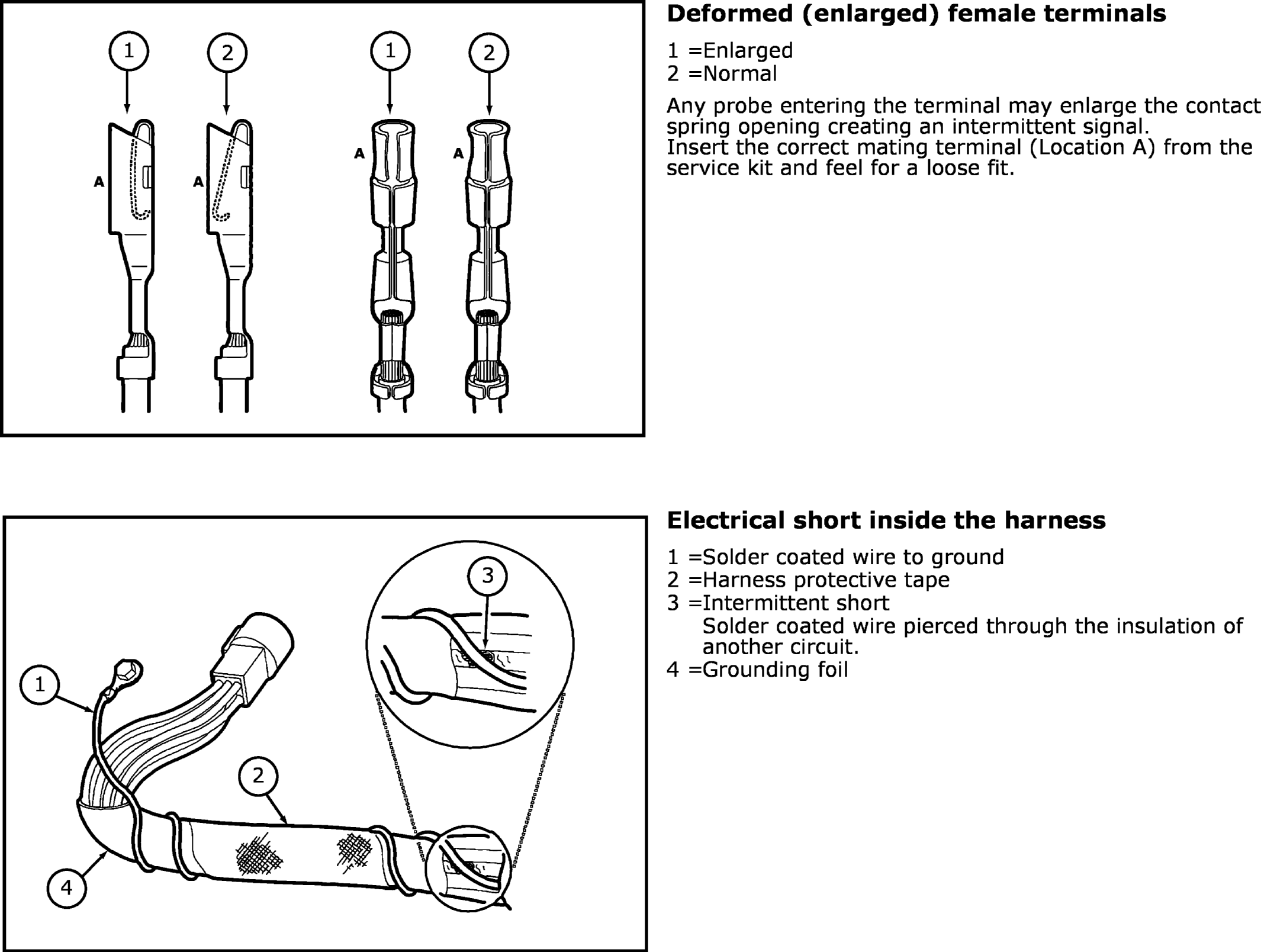

GFDW61395Courtesy of FORD MOTOR COMPANY

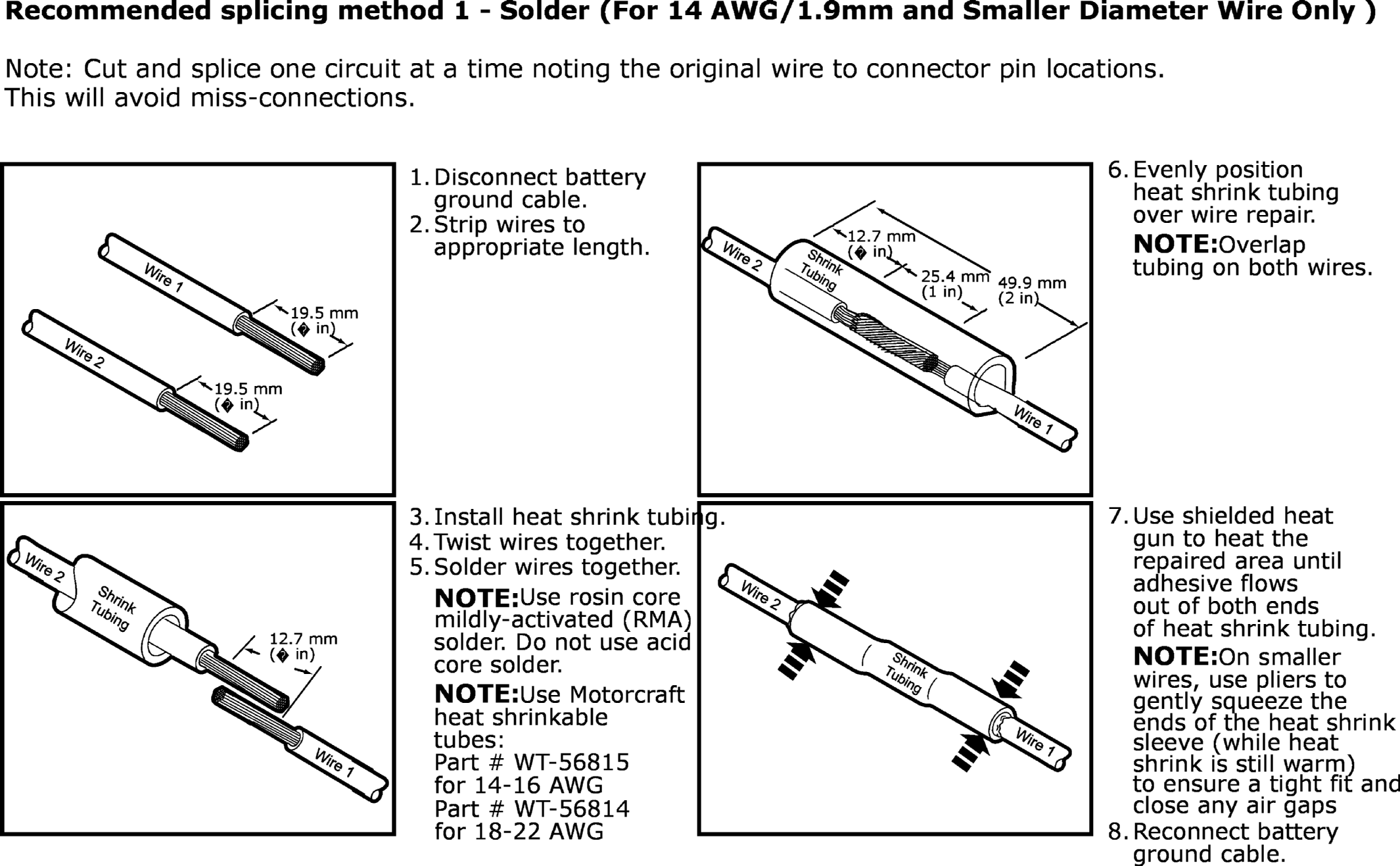

GFDW61396Courtesy of FORD MOTOR COMPANY

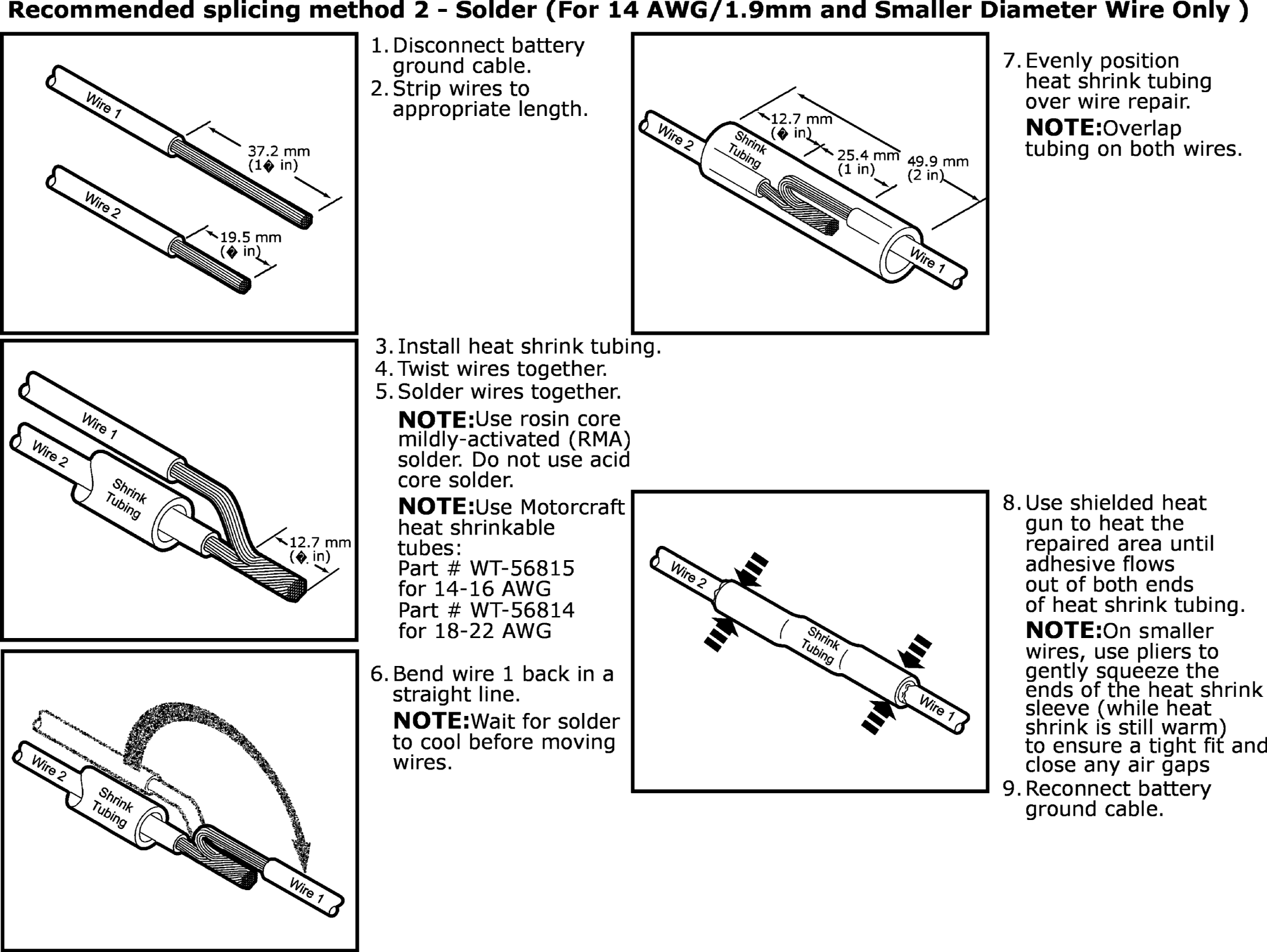

GFDW61397Courtesy of FORD MOTOR COMPANY

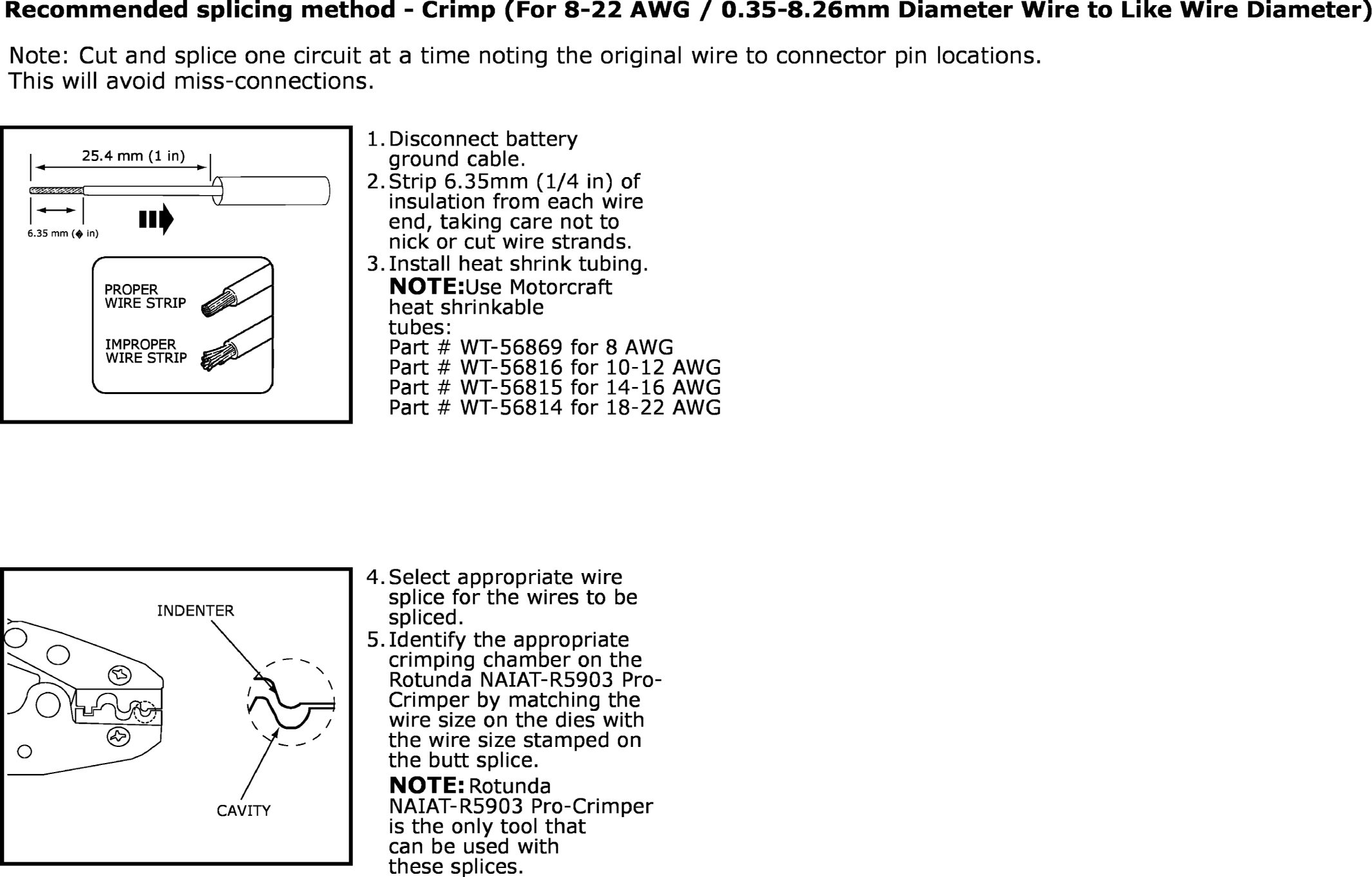

GFDW61398Courtesy of FORD MOTOR COMPANY

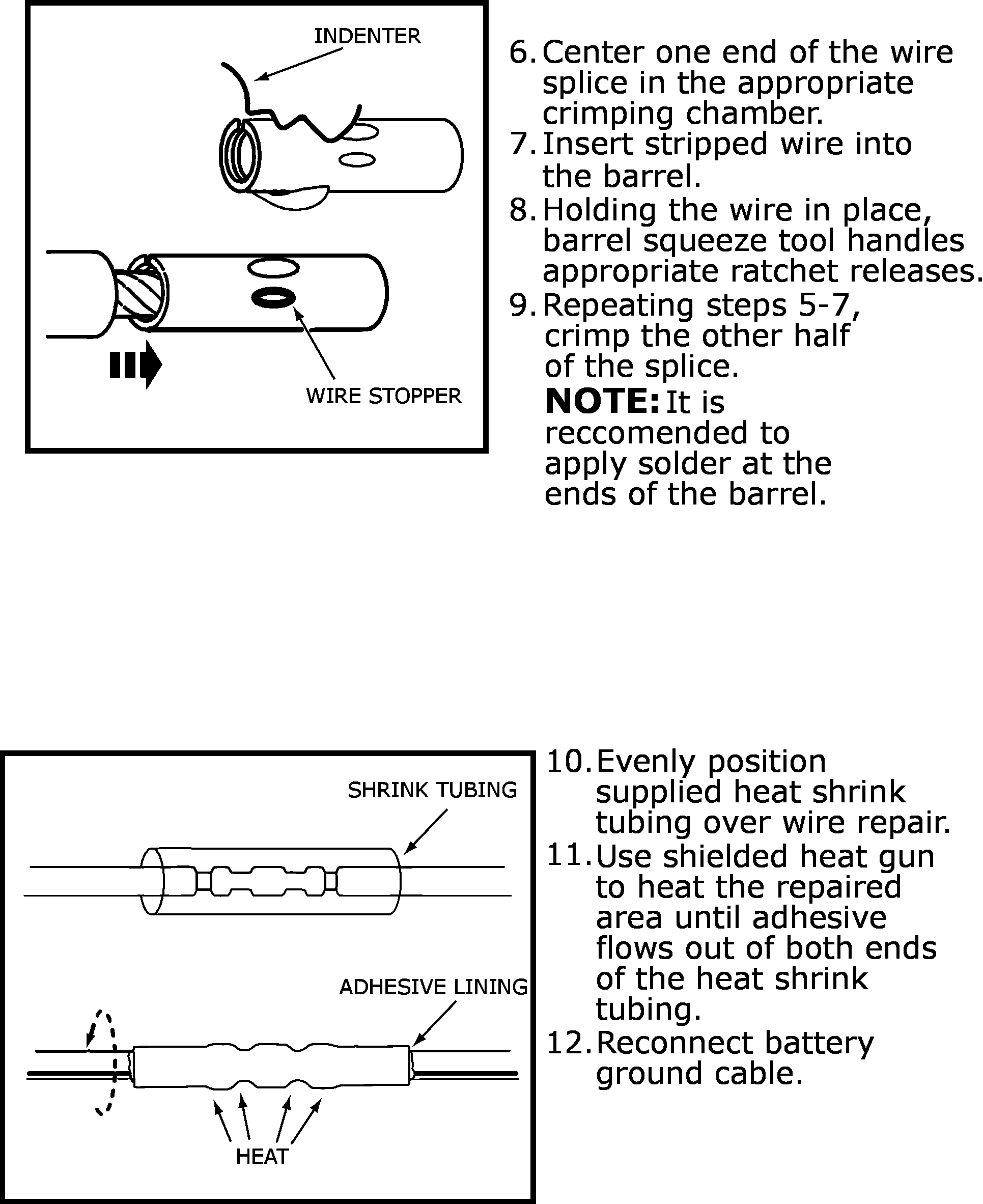

GFDW61399Courtesy of FORD MOTOR COMPANY

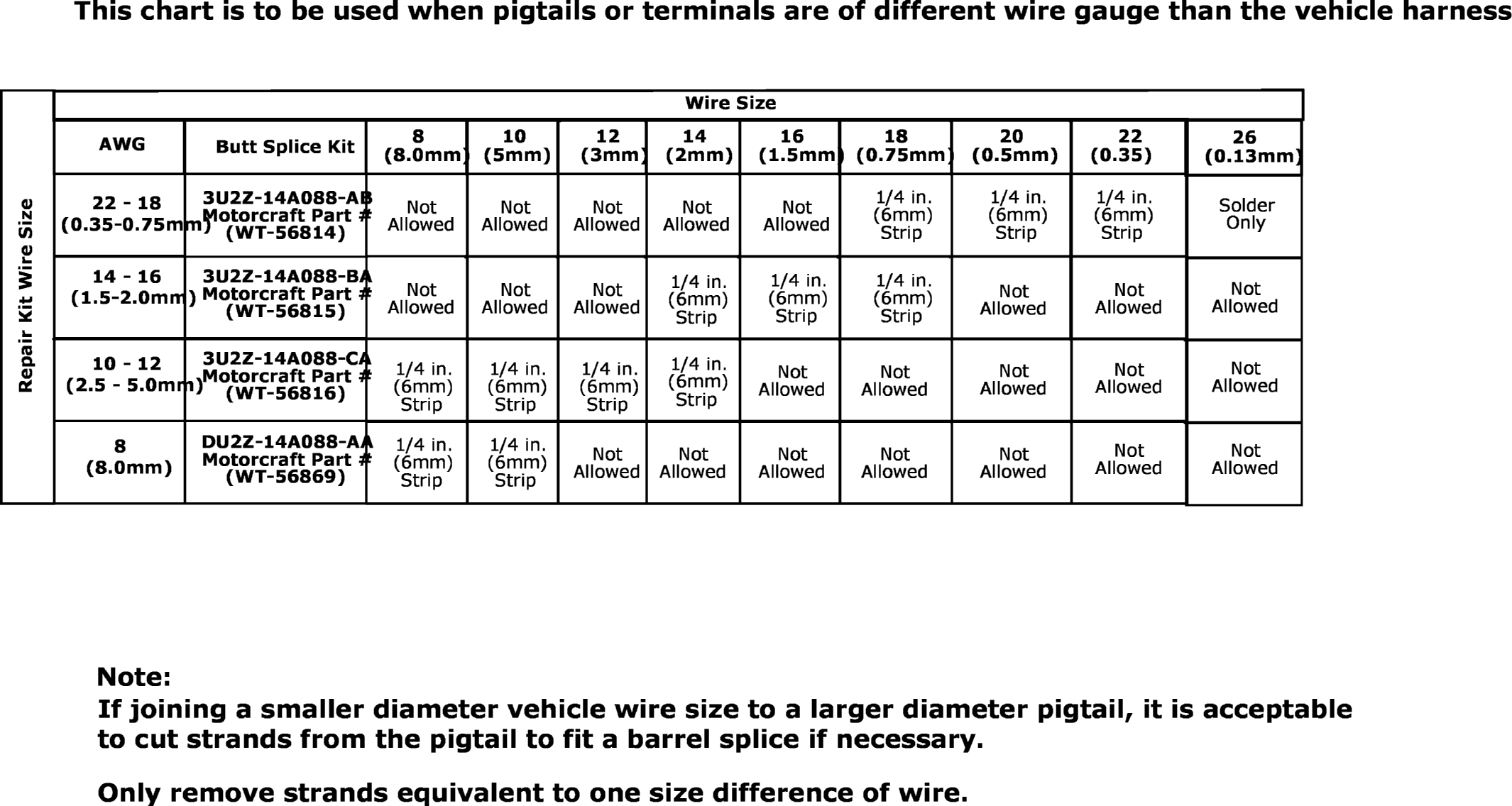

GFDW61400Courtesy of FORD MOTOR COMPANY
