Powertrain Control Module (PCM) And Location: Transit

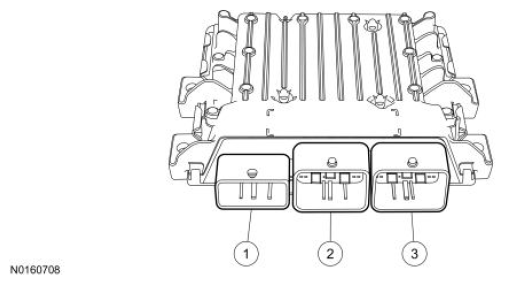

Fig 1: Powertrain Control Module Connectors Location (Transit)
G10769096Courtesy of FORD MOTOR CO.
Item Number Description
1 - E Connector
2 - T Connector
3 - B Connector
