Overhead Console: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 2.

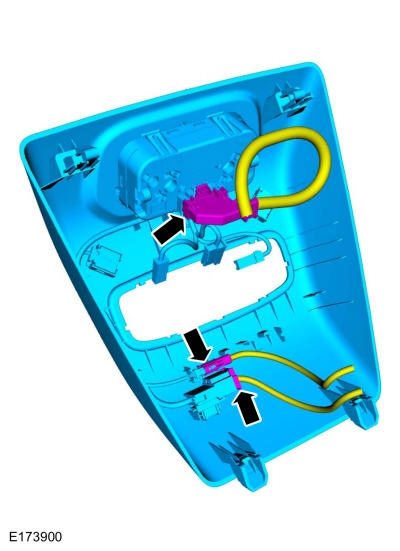

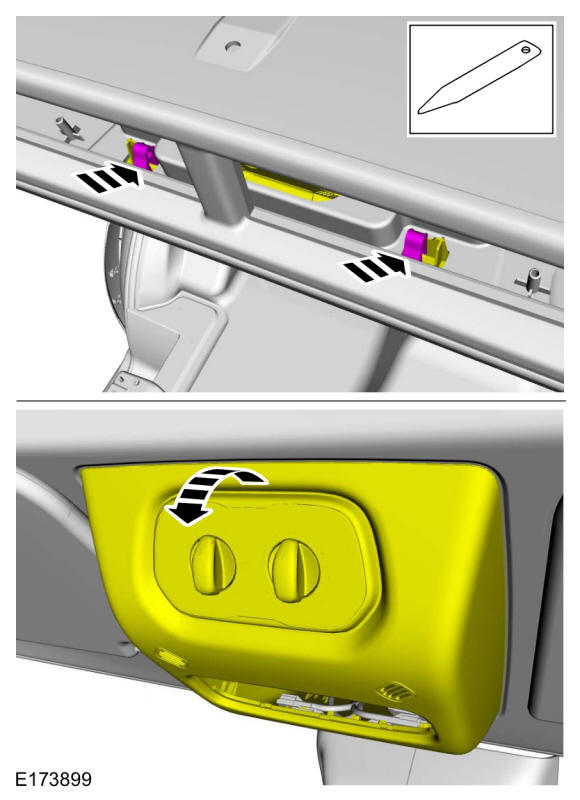

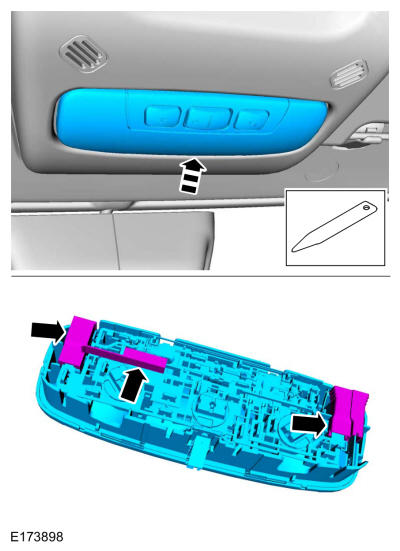

Lower the dome lamp assembly, disconnect the 3 electrical connectors and remove the dome lamp assembly.
- 5.

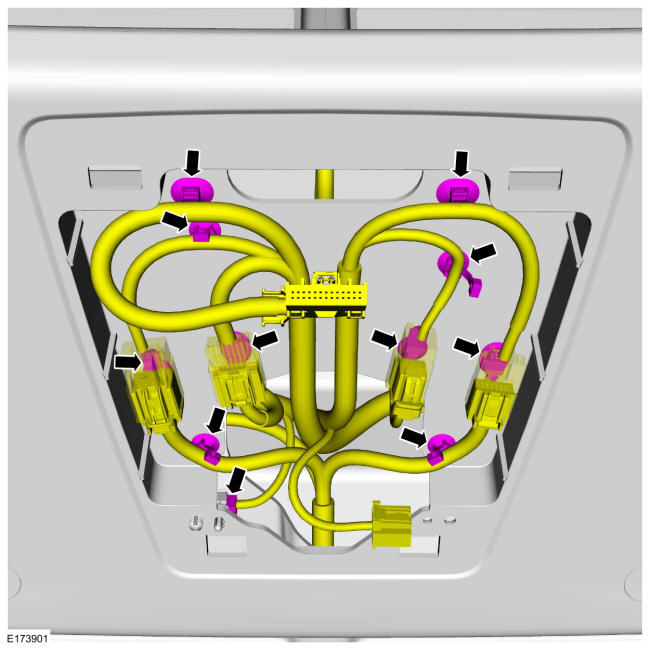

Release the 10 harness retainers, disconnect the electrical connector and position the harness through the opening.
- 9.NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the overhead console storage compartment or damage to the components may occur.

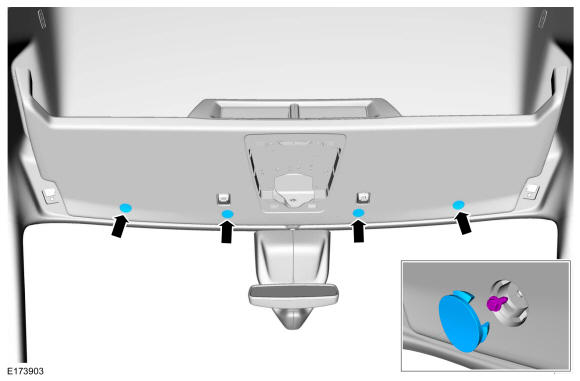

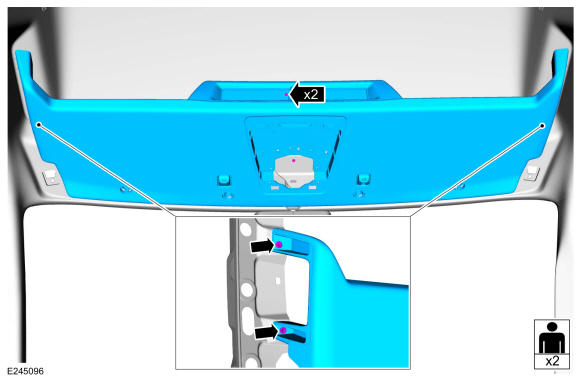

Remove the 6 screws and the overhead console storage compartment.
Torque: 53 lb.in (6 Nm)
