Removal
Anti-Lock Brake System (ABS) Module: Removal
1.
Remove the HCU. Refer to:
Hydraulic Control Unit (HCU)
.
2.

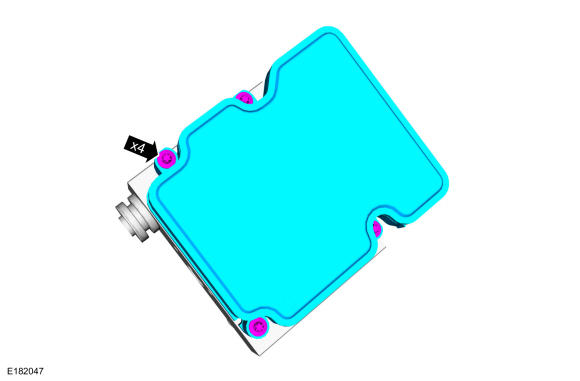

Remove the 4 screws and the ABS module.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
